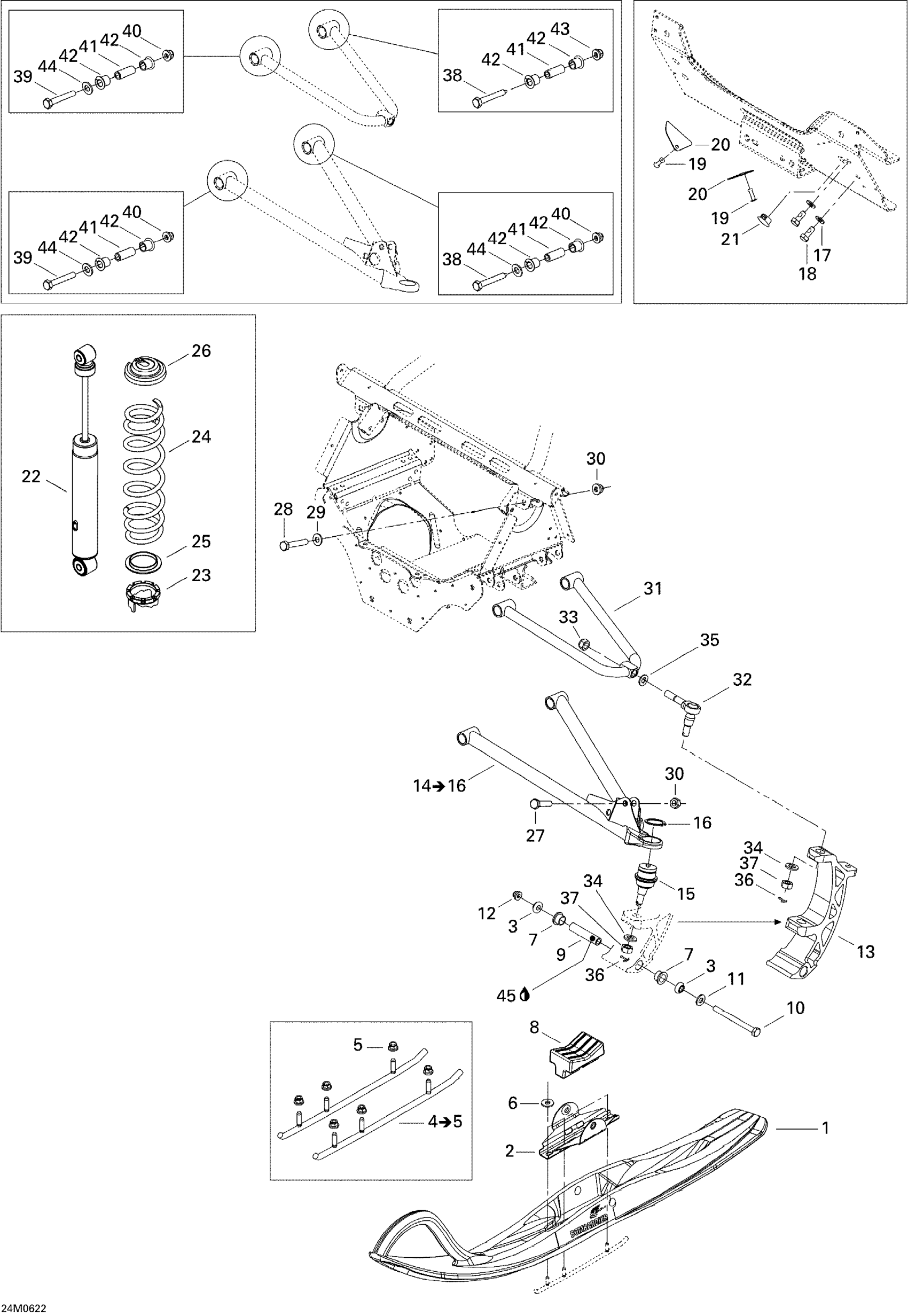

Ski-Doo Expedition 550F, 2006 Front Suspension And Ski Diagram

#

Description
Price

1

Small ''Blow Mold'' Ski

505072019

$94.00

2

BRIDGE ASS'Y - Call your local BRP dealership

505070980

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

860512100

$91.01

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

Flat Washer 8 mm

234082410

$1.27

7

Leg Bushing

505072690

$5.75

8

Ski Stopper

505071304

Unavailable

9

Spacer

506133300

$19.37

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

11

Flat Washer 10 mm

234001410

$1.12

12

Hex. Flange Elastic Nut M10

233201414

$1.45

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512500

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512400

Unavailable

15

Ball Joint

505073636

$48.48

16

Circlip

293370035

$2.48

17

Flat Washer 8 mm

234081410

$0.79

18

Hex. Screw With Nylon

250000118

Unavailable

19

Pop Rivet 3/16"

293150103

$0.52

20

ALUMINIUM PLUG - Call your local BRP dealership

505071131

Unavailable

21

CAP - Call your local BRP dealership

572072100

Unavailable

22

FRONT SHOCK - Call your local BRP dealership

505071662

Unavailable

23

Adjustment Cam

505073625

$11.82

24

FULL MOON SPRING - Call your local BRP dealership

505071842

Unavailable

25

Spring Guide

503187500

$8.46

26

Spring Stopper

706200881

$11.82

27

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

Washer

503189564

$0.70

30

Hex. Flange Elastic Nut M10

233201414

$1.45

31

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

32

Upper Ball Joint

505072257

$16.39

33

Hex. Flange Elastic Nut M12

250000047

$1.79

34

Flat Washer 12 mm

234021410

$0.66

35

Washer

503189276

$3.10

36

Cotter Pin

211400017

$0.28

37

Hex. Flange Elastic Nut M12

250000047

$1.79

38

Hex. Screw M10 X 75

250001063

$11.18

39

Hex. Screw M10 X 75

250001063

$11.18

40

Hex. Flange Elastic Nut M10

250100165

$0.81

41

Bushing

505070567

$19.37

42

Arm Bushing

505070566

$3.04

43

Elastic Flange Nut M10

232501416

$1.43

44

Washer

503189564

$0.70

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
