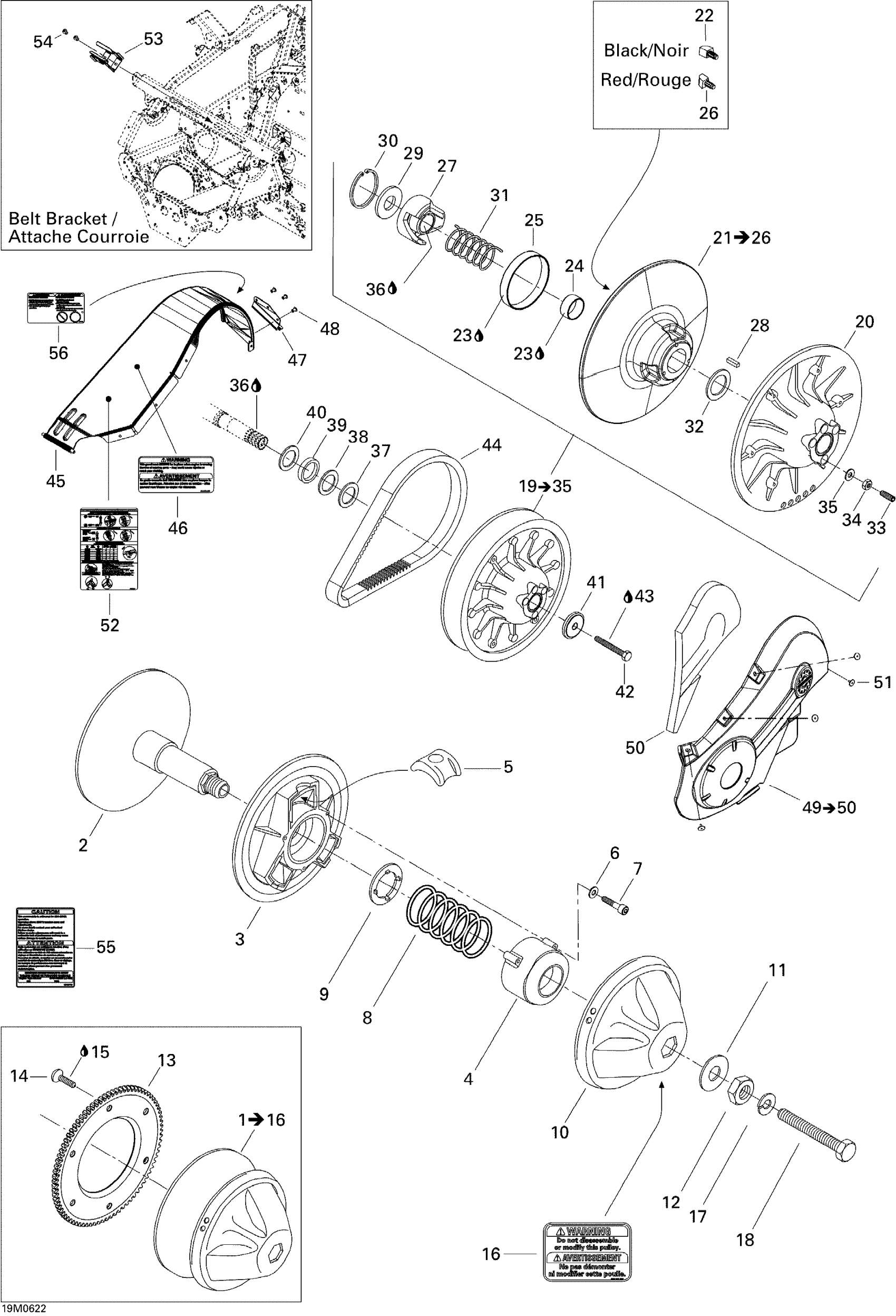

Ski-Doo Expedition 550F, 2006 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

INNER FLANGE - Call your local BRP dealership

415128975

Unavailable

3

SLIDING FLANGE - Call your local BRP dealership

417126692

Unavailable

4

SPRING COVER - Call your local BRP dealership

415128602

Unavailable

5

UNIT - Call your local BRP dealership | Includes 5 to 8

415129125

Unavailable

6

WASHER - Call your local BRP dealership

415128610

Unavailable

7

SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership

415128606

Unavailable

8

Spring, Violet/yellow This part replaces 415128608.

415015300

$43.49

9

SPRING SEAT - Call your local BRP dealership

417126694

Unavailable

10

Cap

415128609

Unavailable

11

WASHER - Call your local BRP dealership

415128610

Unavailable

12

NUT - Call your local BRP dealership

417118300

Unavailable

13

Ring Gear

417222833

$327.99

14

Hex. Screw M8 X 16

236281684

$4.12

15

Loctite 271, 10 ml

293800005

$26.99

16

Security Label

516001726

Unavailable

17

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

18

BOLT - Call your local BRP dealership

417113800

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Fixed Flange

417126663

Unavailable

21

Sliding Flange Ass’Y

417126550

Unavailable

22

Slider Shoe, Front

417126538

Unavailable

23

Loctite 609, 10 ml

413703100

$26.99

24

CUSHION - Call your local BRP dealership

417126515

Unavailable

25

Bushing

417126562

Unavailable

26

SLIDER SHOE, REAR - Call your local BRP dealership

417126539

Unavailable

27

Cam 44°

417126715

Unavailable

28

Key

414820800

Unavailable

29

Washer

417126555

Unavailable

30

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

31

RELEASE SPRING, WHITE - Call your local BRP dealership

504152070

Unavailable

32

Thrust Washer

504141900

Unavailable

33

Socket Set Screw M6 X 30

206263044

Unavailable

34

Hex. Nut M6

232061414

$0.53

35

WASHER - Call your local BRP dealership

420245370

Unavailable

36

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

37

Spacer

417300252

$5.49

38

Spacer

417300265

$2.29

39

Spacer

504149100

$12.99

40

Shim

504112000

$8.59

41

Strength Washer

517302322

$12.63

42

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

43

Loctite 243, 10 ml

293800060

$21.49

44

Drive Belt

415060600

$104.99

45

BELT GUARD - Call your local BRP dealership

417300269

Unavailable

46

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

47

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

48

Avex Rivet

390909200

$0.30

49

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

50

Foam

417300246

Unavailable

51

Pop Rivet 3/16"

293150103

$0.55

52

Decal, Suspension Adjustment Decal

516001640

Unavailable

53

Bracket

517281905

$18.49

54

Pop Rivet 3/16"

390402200

$0.35

55

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable
