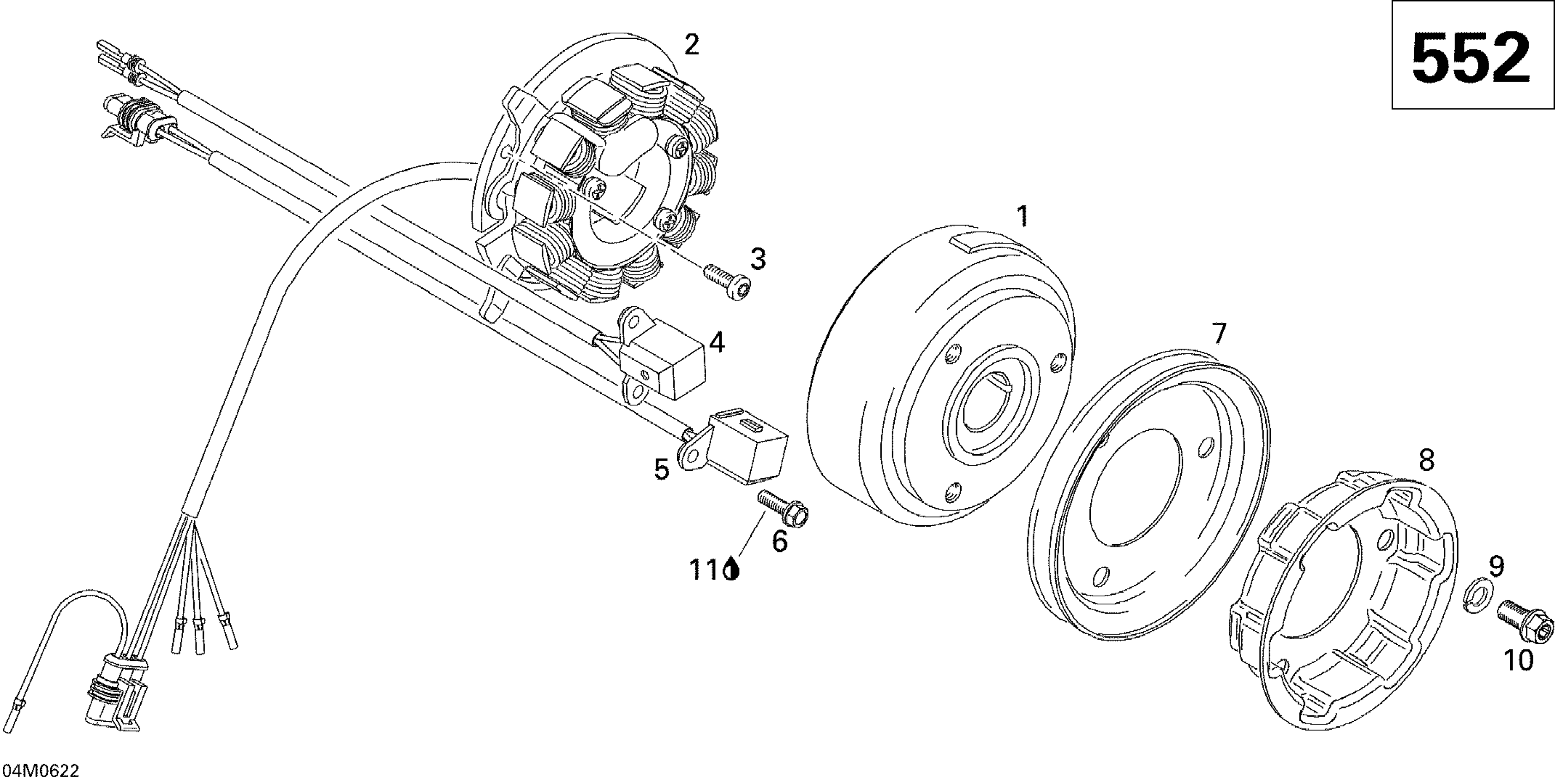

Ski-Doo Expedition 550F, 2006 03- Magneto Diagram

#

Description
Price

1

Flywheel

420889376

$494.49

2

Stator Plate A

420889369

$319.49

3

Screw

420641521

$8.57

4

PICK-UP - Call your local BRP dealership

420665160

Unavailable

5

Pick-Up

420665163

$164.99

6

Taptite Screw M5 X 16

420941928

Unavailable

7

V-Belt Pulley

420980486

$37.99

8

Rope Sheave

420852414

$29.49

9

Lock Washer

420845311

$1.90

10

Torx Flange Screw M8 X 16

420440852

$4.12

11

Loctite 243, 10 ml

293800060

$21.49
