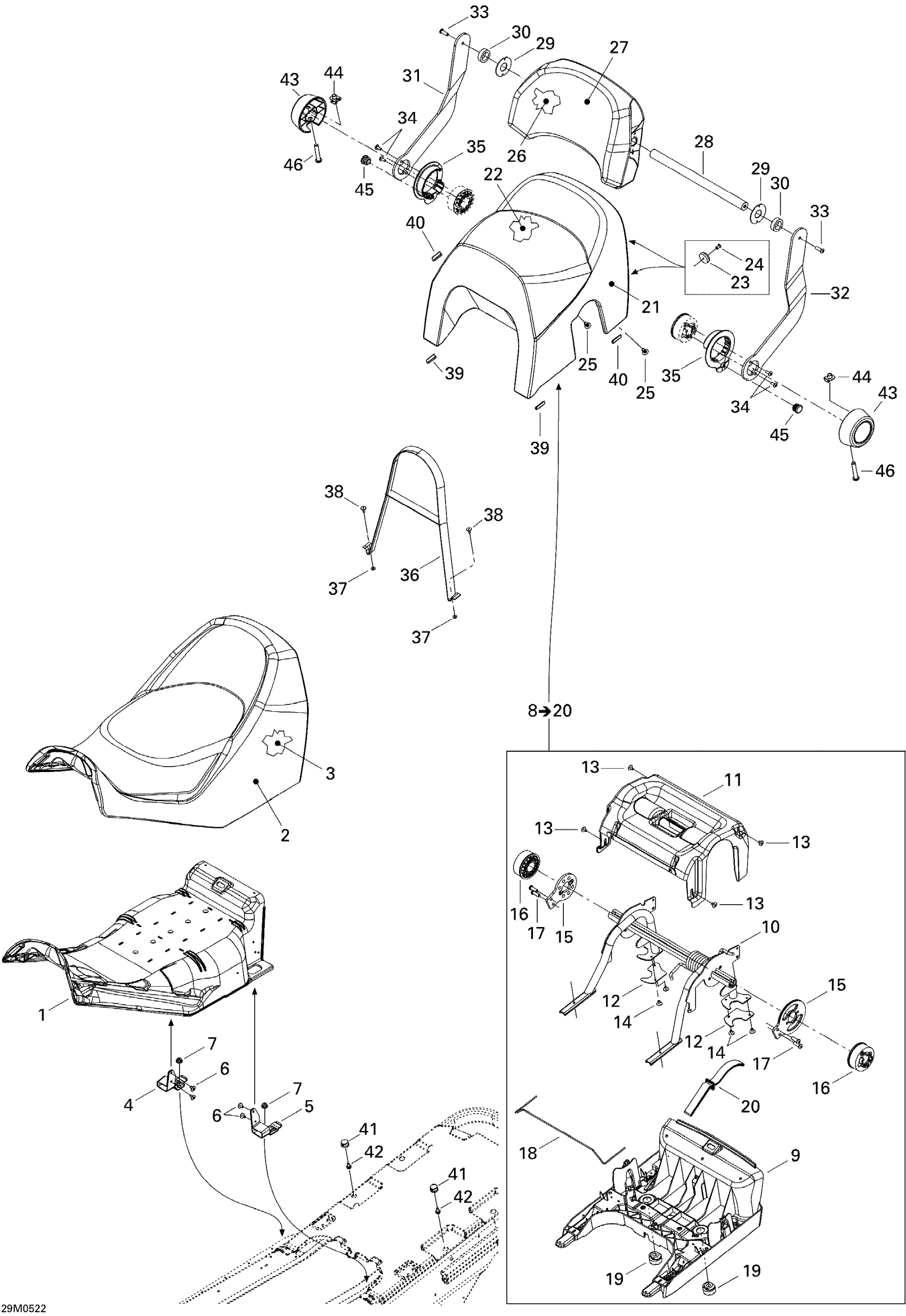

Ski-Doo Expedition 550F, 2005 09- Seat Diagram

#

Description
Price

1

FRONT SEAT BASE - Call your local BRP dealership

510004353

Unavailable

2

FRONT SEAT COVER, BLACK - Call your local BRP dealership

510004549

Unavailable

3

FRONT SEAT FOAM - Call your local BRP dealership

510004355

Unavailable

4

RH FIXATION PLATE, BLACK - Call your local BRP dealership

510004463

Unavailable

5

LH FIXATION PLATE, BLACK - Call your local BRP dealership

510004464

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Not Available As Spare Part - Friction Washer

Unavailable

9

SEAT BASE - Call your local BRP dealership

510004433

Unavailable

10

SUPPORT - Call your local BRP dealership

510004569

Unavailable

11

Foam Support

510004423

$38.99

12

WEAR PLATE - Call your local BRP dealership

510004500

Unavailable

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

14

Pop Rivet 3/16”

293150108

$1.19

15

LINK PLATE - Call your local BRP dealership

510004535

Unavailable

16

Spacer

510004536

Unavailable

17

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

18

ANCHOR SPRING - Call your local BRP dealership

510004421

Unavailable

19

Bumper Rubber

708000760

$10.49

20

BELT - Call your local BRP dealership

510004495

Unavailable

21

SEAT COVER, BLACK - Call your local BRP dealership

510004558

Unavailable

22

Seat Foam

510004576

Unavailable

23

Rubber Stopper

415018100

$2.49

24

Pop Rivet 1/8", Black

293150189

$0.27

25

Black Dart

293730010

$0.99

26

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

27

BACKREST COVER, BLACK - Call your local BRP dealership

510004559

Unavailable

28

Upper Backrest Axle

510004377

$44.99

29

Washer

510004379

$10.01

30

Rubber Shim

510004378

$10.99

31

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

32

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

33

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

34

Torx Truss Screw M8 X 16

250000746

$3.38

35

SPACER - Call your local BRP dealership

510004384

Unavailable

36

SEAT BELT - Call your local BRP dealership

510004438

Unavailable

37

Flat Washer

517225900

$0.18

38

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

39

FRONT SEAT CORNER - Call your local BRP dealership

510004610

Unavailable

40

REAR SEAT CORNER - Call your local BRP dealership

510004611

Unavailable

41

SEAT STUD - Call your local BRP dealership

510004417

Unavailable

42

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

43

CAP - Call your local BRP dealership

510004481

Unavailable

44

J-nut

250100053

Unavailable

45

Cap

517302716

$4.69

46

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable
