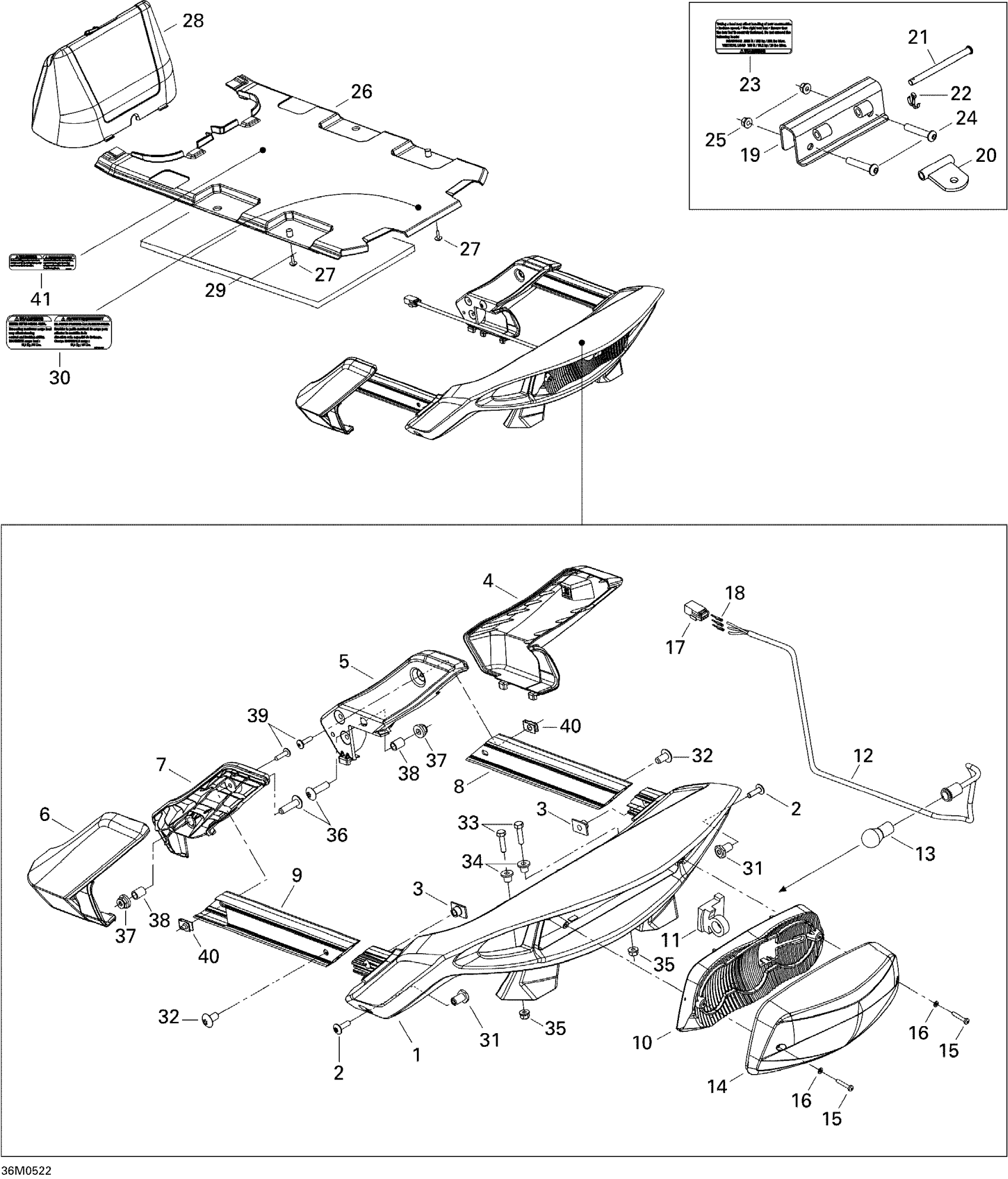

Ski-Doo Expedition 550F, 2005 09- Luggage Rack Diagram

#

Description
Price

1

RACK - Call your local BRP dealership

511000317

Unavailable

2

Torx Screw M6 X 20

250000722

$1.68

3

THREAD INSERT - Call your local BRP dealership

511000341

Unavailable

4

RH OUTSIDE ARM - Call your local BRP dealership

511000322

Unavailable

5

RH INSIDE ARM - Call your local BRP dealership

511000326

Unavailable

6

LH OUTSIDE ARM - Call your local BRP dealership

511000323

Unavailable

7

LH INSIDE ARM - Call your local BRP dealership

511000327

Unavailable

8

RH SIDE BAR - Call your local BRP dealership

511000321

Unavailable

9

LH SIDE BAR - Call your local BRP dealership

511000345

Unavailable

10

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

11

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

12

Bulb Socket

511000428

Unavailable

13

Bulb

520000758

$9.10

14

Lens

511000315

$36.99

15

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Male Housing, 3 Circuits

515175494

$16.18

18

Male Terminal

515175232

$1.58

19

HITCH, BLACK - Call your local BRP dealership

511000391

Unavailable

20

Hitch Plate Welded

511000521

$16.33

21

CLEVIS PIN - Call your local BRP dealership

505001700

Unavailable

22

Cotter Pin

371800200

$0.53

23

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

23

WARNING DECAL-SECURITY-FRENCH - Call your local BRP dealership This part replaces 516002667.

516003038

Unavailable

24

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

25

Hex. Flange Elastic Nut M8

233281414

$1.47

26

Radiator Cover

511000319

Unavailable

27

Screw M4 X 16

250000725

$3.49

28

Tank Cover

511000357

Unavailable

29

RADIATOR COVER SHIM - Call your local BRP dealership

511000364

Unavailable

30

Warning Label, Maximum Cargo Load

516002666

Unavailable

31

INSERT - Call your local BRP dealership

511000398

Unavailable

32

Torx Truss Screw M8 X 16

250000746

$3.38

33

Hex. Screw M6 X 25

207162544

$1.15

34

FLANGED BUSHING - Call your local BRP dealership

511000340

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Hex Torx Truss M8 X30

250000745

$3.17

37

Hex. Flange Elastic Nut M8

233281414

$1.47

38

BUSHING - Call your local BRP dealership

511000325

Unavailable

39

Torx Screw M5 X 20

250000724

$1.69

40

Panel Nut M5 X 0.8

250000958

$4.23

41

Warning Decal, Secure Lock

516002743

Unavailable
