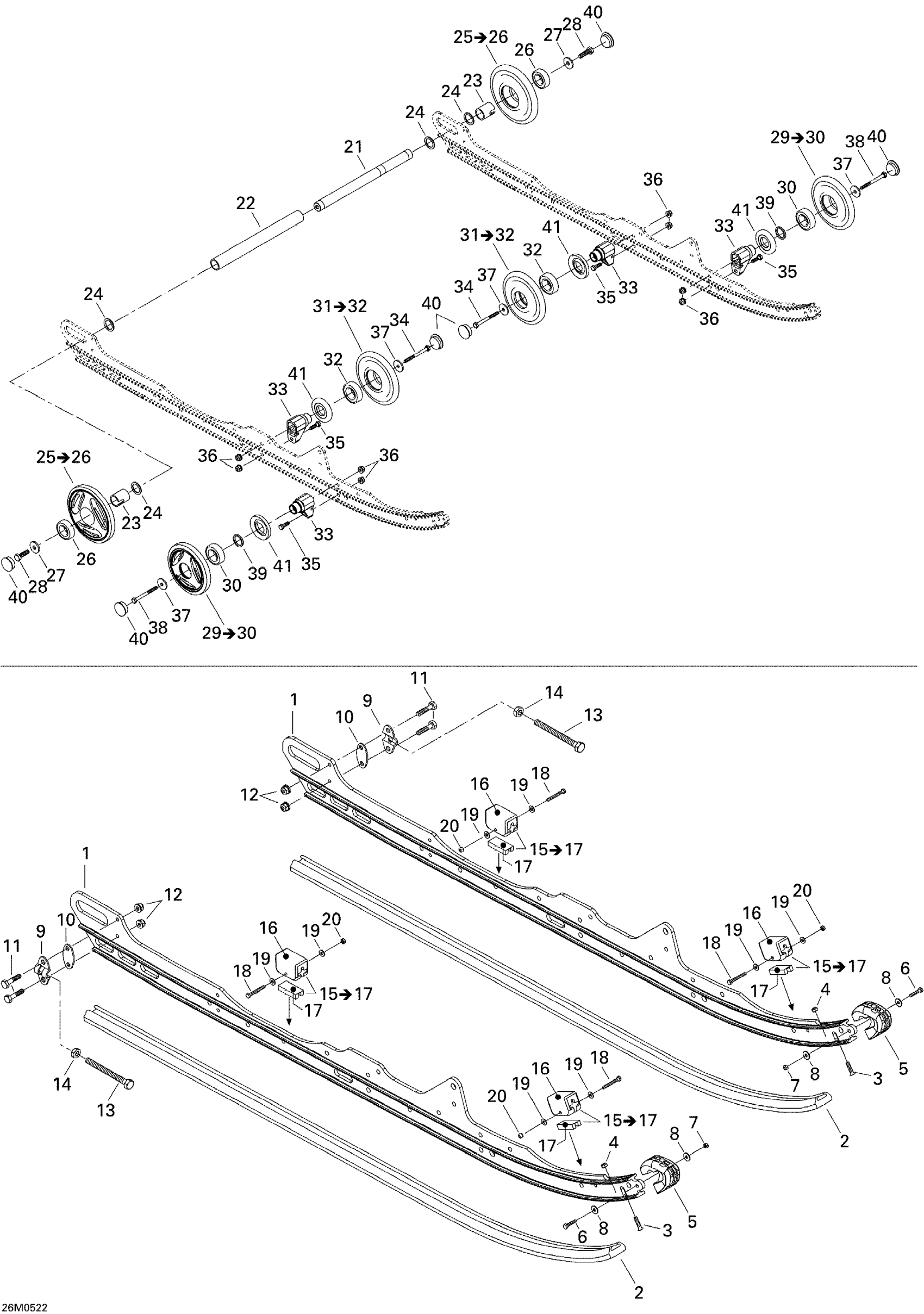

Ski-Doo Expedition 550F, 2005 08- Rear Suspension Diagram

#

Description
Price

1

Runner, 136”

503189582

Unavailable

2

Slide Shoe

605355362

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

11

Hex. Screw M6 X 30

207063044

$1.26

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.69

15

RUBBER STOPPER ASS'Y - Call your local BRP dealership

503190905

Unavailable

16

Rubber Stopper

570063000

Unavailable

17

Reinforcement Stopper

572084800

$12.99

18

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

19

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

20

Elastic Stop Nut M5

232551414

$0.87

21

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

22

SPACER - Call your local BRP dealership

503188941

Unavailable

23

Outer Spacer

503189809

$18.89

24

Washer

503180400

$3.49

25

Wheel 165 mm

503190856

$51.99

26

Ball Bearing

293350115

$12.11

27

Washer

503183300

$5.82

28

Hex. Screw With Nylon

250000019

$1.69

29

WHEEL 139 MM - Call your local BRP dealership | Includes 29 to 30

503190794

Unavailable

30

Ball Bearing

293350115

$12.11

31

Wheel 139 mm Ass'y

503190798

$33.99

32

Ball Bearing

293350115

$12.11

33

SUPPORT - Call your local BRP dealership

503190389

Unavailable

34

Hex. Screw M8 X 80

207088044

$1.68

35

Hex. Screw M8 X 25

207182544

$0.90

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Washer

503183100

$3.17

38

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

39

WASHER - Call your local BRP dealership

503173700

Unavailable

40

Wheel Cap

570063600

$3.49

41

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
