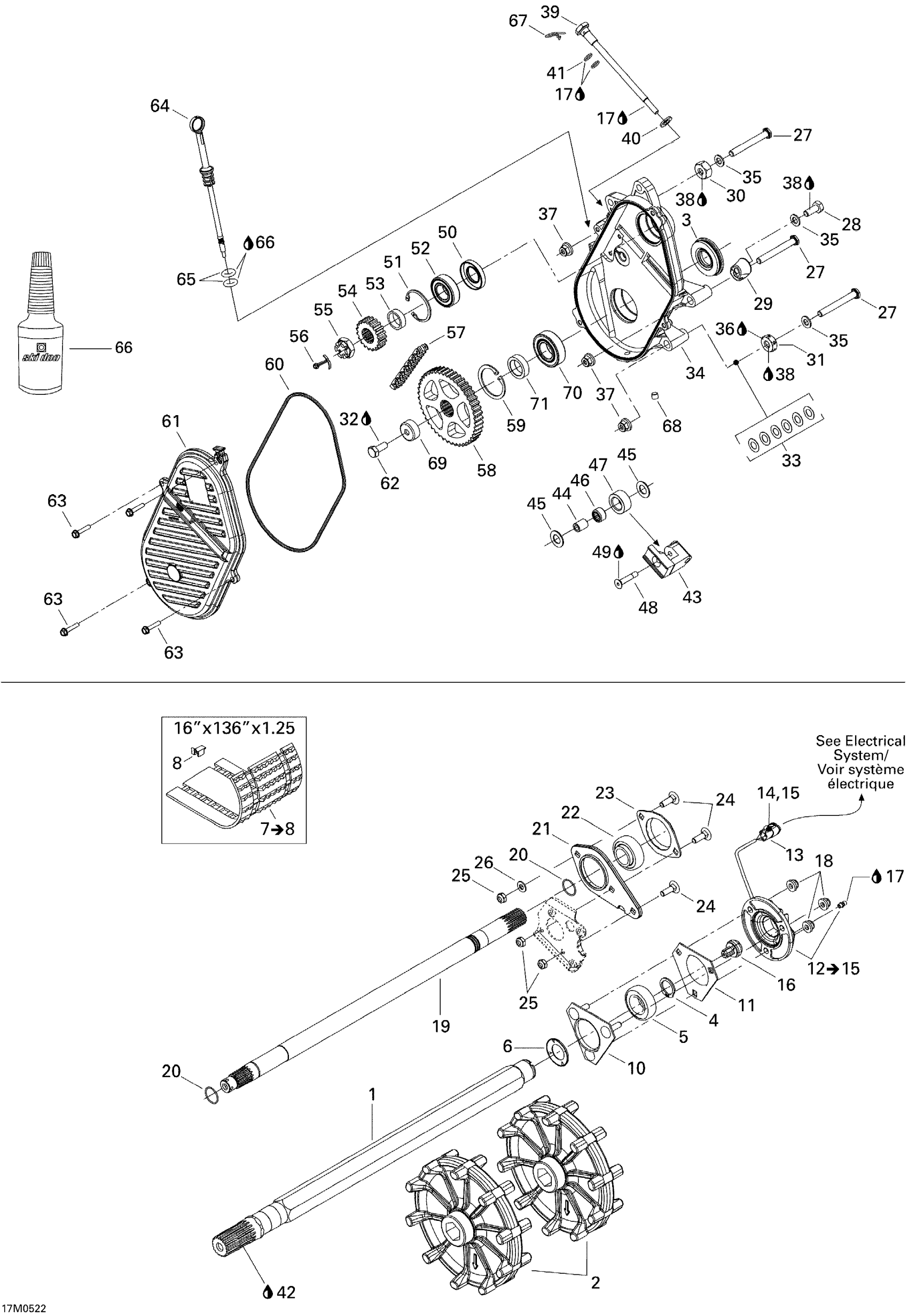

Ski-Doo Expedition 550F, 2005 05- Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

Oil Seal Ass'y

504151918

$20.49

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track 16" X 136" X 1.25" Ass'y | Includes 7 to 9

504152456

$899.99

8

Track Guide | Track Width 16''

415129528

$3.29

9

Not Available As Spare Part - Friction Washer

Unavailable

10

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

11

FLANGE - Call your local BRP dealership

501025000

Unavailable

12

Rotation Sensor

504152345

$71.99

13

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

14

Female Terminal

278000632

$2.09

15

Female Lock, 3 Circuits

515175676

$5.39

16

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

17

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

COUNTER SHAFT - Call your local BRP dealership

504152292

Unavailable

20

Circlip

371910000

$1.19

21

SPACER - Call your local BRP dealership

504151968

Unavailable

22

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

23

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

24

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

25

Hex. Elastic Stop Nut M8

232581414

$0.56

26

Flat Washer 8 mm

234081410

$0.83

27

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

Unavailable

28

Hex. Screw M10 X 25

207102544

$1.37

29

Spacer

504152252

Unavailable

30

Spacer

504083800

Unavailable

31

SPACER - Call your local BRP dealership

504152237

Unavailable

32

Loctite 271, 10 ml

293800005

$26.99

33

WASHER - Call your local BRP dealership

504073700

Unavailable

34

Chaincase

504152312

Unavailable

35

Washer

503175800

$3.28

36

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

37

Hex. Flange Elastic Nut M10

233201414

$1.58

38

Loctite 243, 10 ml

293800060

$21.49

39

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

40

Flat Washer 10 mm

234001410

$1.26

41

O-Ring

414484400

$7.51

42

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

43

Chain Tensioner

504151951

Unavailable

44

SPACER - Call your local BRP dealership

504080200

Unavailable

45

WASHER - Call your local BRP dealership

504080300

Unavailable

46

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

47

ROLLER - Call your local BRP dealership

414531300

Unavailable

48

SCREW - Call your local BRP dealership

732601144

Unavailable

49

Loctite 271, 10 ml

293800005

$26.99

50

SEAL - Call your local BRP dealership

504151927

Unavailable

51

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

52

Ball Bearing

293350115

$12.11

53

SHIM - Call your local BRP dealership

504147200

Unavailable

54

Sprocket, 19 Teeth

504152031

$109.99

55

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

56

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

57

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

58

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

59

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

60

O-Ring

415046400

$24.99

61

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

62

Hex. Screw M10 X 25

207102544

$1.37

63

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

64

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

65

O-RING - Call your local BRP dealership

414969400

Unavailable

66

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

67

Hair Pin

414575600

$1.89

68

Plug 1/8”-27

504151921

$4.19

69

CAP - Call your local BRP dealership

504152460

Unavailable

70

Ball Bearing

504152005

$46.49

71

Shim

504152058

Unavailable
