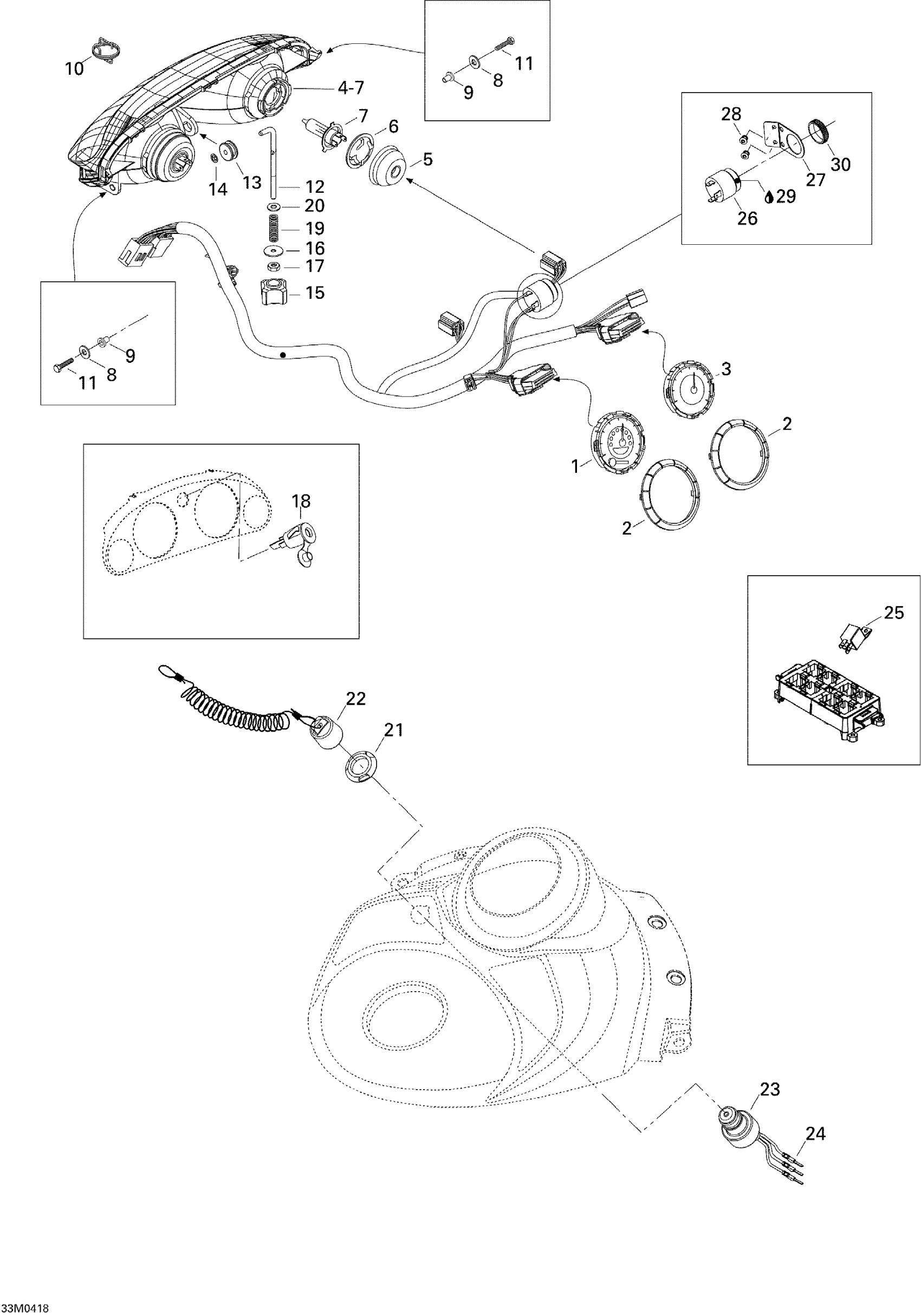

Ski-Doo Expedition 4-TEC, 2004 10- Electrical System Diagram

#

Description
Price

1

Speedometer

515176185

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

Tachometer

515176072

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

COVER - Call your local BRP dealership

515175911

Unavailable

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

Washer 5,3 mm

20008

$0.74

9

NUT M5 - Call your local BRP dealership

250100018

$6.99

10

SPRING - Call your local BRP dealership

M5447238

Unavailable

11

Screw M5X35

M40235

Unavailable

12

ADJUSTER ROD - Call your local BRP dealership

605450023

Unavailable

13

Grommet - Call your local BRP dealership

415100800

Unavailable

14

Push Nut

732610072

$2.19

15

Handle - Call your local BRP dealership

515175548

Unavailable

16

WASHER - Call your local BRP dealership

M20038

Unavailable

17

Elastic Stop Nut M6

232561414

$0.55

18

DC Outlet

710001248

$37.99

19

SPRING - Call your local BRP dealership

415100600

Unavailable

20

Flat Washer 6 mm

234061410

$1.36

21

Safety Nut (DESS Switch)

278002963

$3.28

22

DESS

515178284

$84.99

23

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

24

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

25

Relais *Relay This part replaces 410113604.

515177672

$46.49

26

HORN - Call your local BRP dealership

515176035

Unavailable

27

Holder

M5447941

Unavailable

28

Rivet

36005

$2.11

29

Silicone Sealant 51388, 300 ml

296000309

$36.99

30

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable
