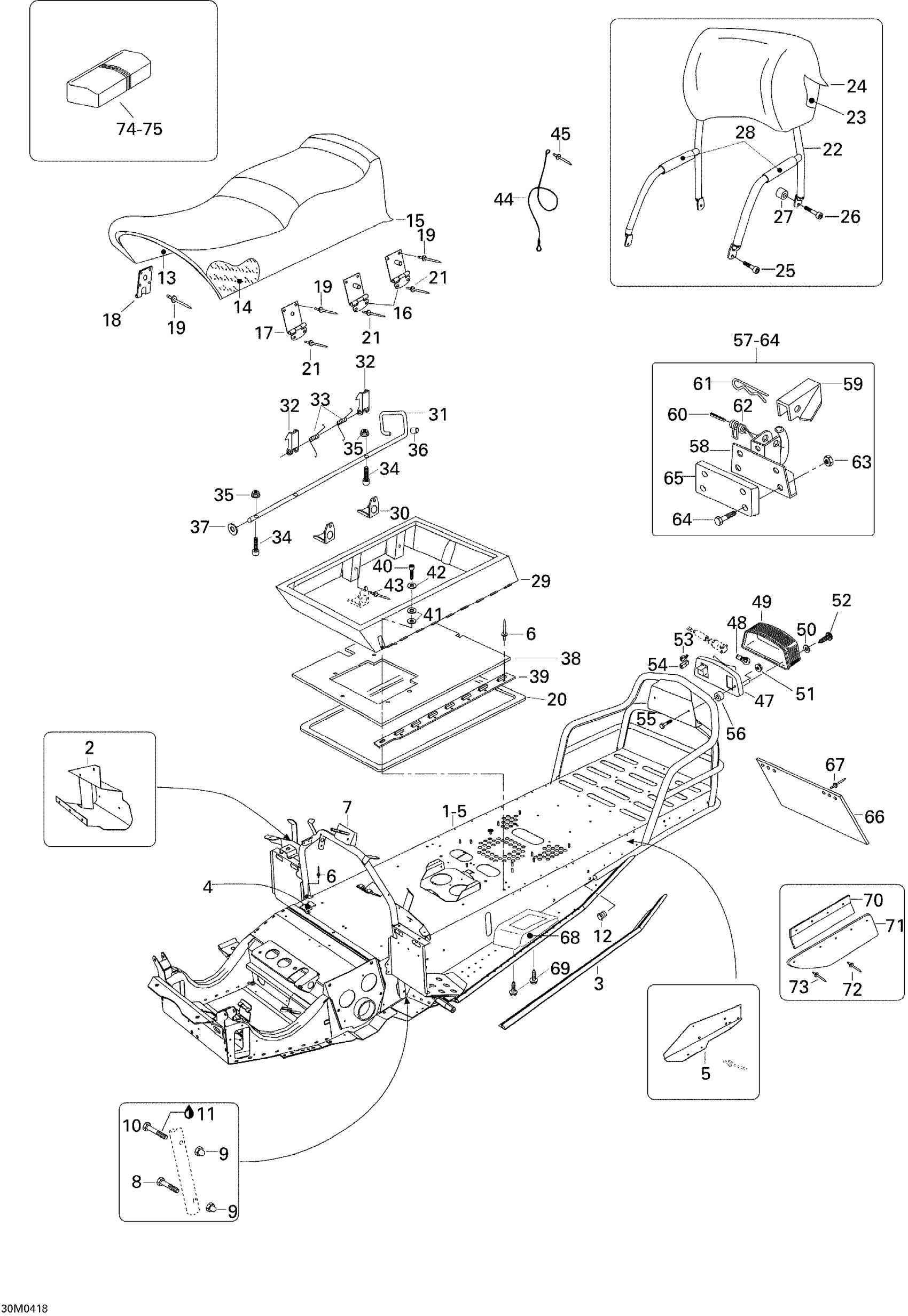

Ski-Doo Expedition 4-TEC, 2004 09- Frame and Seat Diagram

#

Description
Price

1

Frame Assy | Includes Items 1 to 5

605150594

Unavailable

2

RH Toe Rest

605350839

Unavailable

2

LH TOE REST - Call your local BRP dealership

605350840

Unavailable

3

RH REINFORCEMENT - Call your local BRP dealership

605250774

Unavailable

3

LH REINFORCEMENT - Call your local BRP dealership

605250773

Unavailable

4

Support Cooling

605349992

Unavailable

5

RH Coner Support

605350846

Unavailable

5

LH CONER SUPPORT - Call your local BRP dealership

605350845

Unavailable

6

Rivet

36108

$1.90

7

Bar Support

605150605

Unavailable

8

Hex. Screw M6 X 30

207063044

$1.26

9

Hex. Nut M6

232061414

$0.53

10

Hex. Screw M6 X 40

207064044

$1.48

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Plug

M28210

Unavailable

13

Sub Seat

M519394

Unavailable

14

Foam Seat

605150323

Unavailable

15

COVER - Call your local BRP dealership

605153063

Unavailable

16

HINGE - Call your local BRP dealership

M549874

Unavailable

17

HINGE - Call your local BRP dealership

M5440581

Unavailable

18

Lock Plate

M549732

Unavailable

19

Rivet

M36071

Unavailable

20

SEALING STRIP PROFIL - Call your local BRP dealership

M5440059

Unavailable

21

Rivet

M36489

Unavailable

22

Backrest

M5245664

Unavailable

23

Backrest Foam

M539399

Unavailable

24

Backrest Cover

605350589

Unavailable

25

SCREW-SOCKET - Call your local BRP dealership

M40388

Unavailable

26

Allen Screw

M40389

Unavailable

27

Spacer

M5440665

Unavailable

28

RH Grip, 250 mm

415050300

Unavailable

29

Seat Box

605150634

Unavailable

30

Support

M5443661

Unavailable

31

Pivot Pin

M5344987

Unavailable

32

CAM LOCK - Call your local BRP dealership

605451589

Unavailable

33

SPRING - Call your local BRP dealership

M5444439

Unavailable

34

Screw M4 X 16

M40144

Unavailable

35

Elastic Stop Nut M4

232541414

$0.58

36

Cap

M28019

Unavailable

37

Flat Washer 8 mm

234081410

$0.83

38

Seat Box Cover

605350645

Unavailable

39

RH Support

M5144029

Unavailable

39

LH Support

M5144028

Unavailable

40

Socket Head Screw M6 X 20

M40052

Unavailable

41

Flat Washer 6 mm

234062410

$0.77

42

Lock Washer M6, Black

234161471

$0.53

43

Rivet This part replaces M36009.

36009

$1.15

44

Retainer Cable | SUV 600

M5447746

Unavailable

45

Rivet

M36038

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

48

Bulb

520000758

$9.10

49

Lens

414513700

$28.99

50

Washer - Call your local BRP dealership

414516400

Unavailable

51

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

52

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

53

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

54

Female Terminal Housing, 1 Circuit

409010400

$7.62

55

Hex. Screw M6 X 45

207064544

$2.11

56

Sleeve

M549103

Unavailable

57

HITCH ASS'Y - Call your local BRP dealership

5344156

$79.99

58

HITCH ASS'Y - Call your local BRP dealership

5344156

$79.99

59

HITCH PROTECTOR - Call your local BRP dealership

M5440767

Unavailable

60

Pin

41012

$6.39

61

Hair pin

41029

$4.44

62

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

63

Hex. Elastic Stop Nut M8

232581414

$0.56

64

Hex. Screw M8 X 50

207085044

$1.48

65

SPACER - Call your local BRP dealership

605351510

Unavailable

66

Snow Guard

M535437

Unavailable

67

Black, Rivet

M36036

$1.69

68

RH Rear Footrest | Europe

414975300

Unavailable

68

LH Rear Footrest | Europe

414975400

Unavailable

69

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

70

RH SIDE SNOW GUARD - Call your local BRP dealership

605251249

Unavailable

70

LH SIDE SNOW GUARD - Call your local BRP dealership

605251248

Unavailable

71

Side Snowguard This part replaces M5142828.

5142828

$30.49

72

RIVET - Call your local BRP dealership

M36097

Unavailable

73

Rivet

36005

$2.11

74

TOOL SET - Call your local BRP dealership

605352219

Unavailable

75

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable
