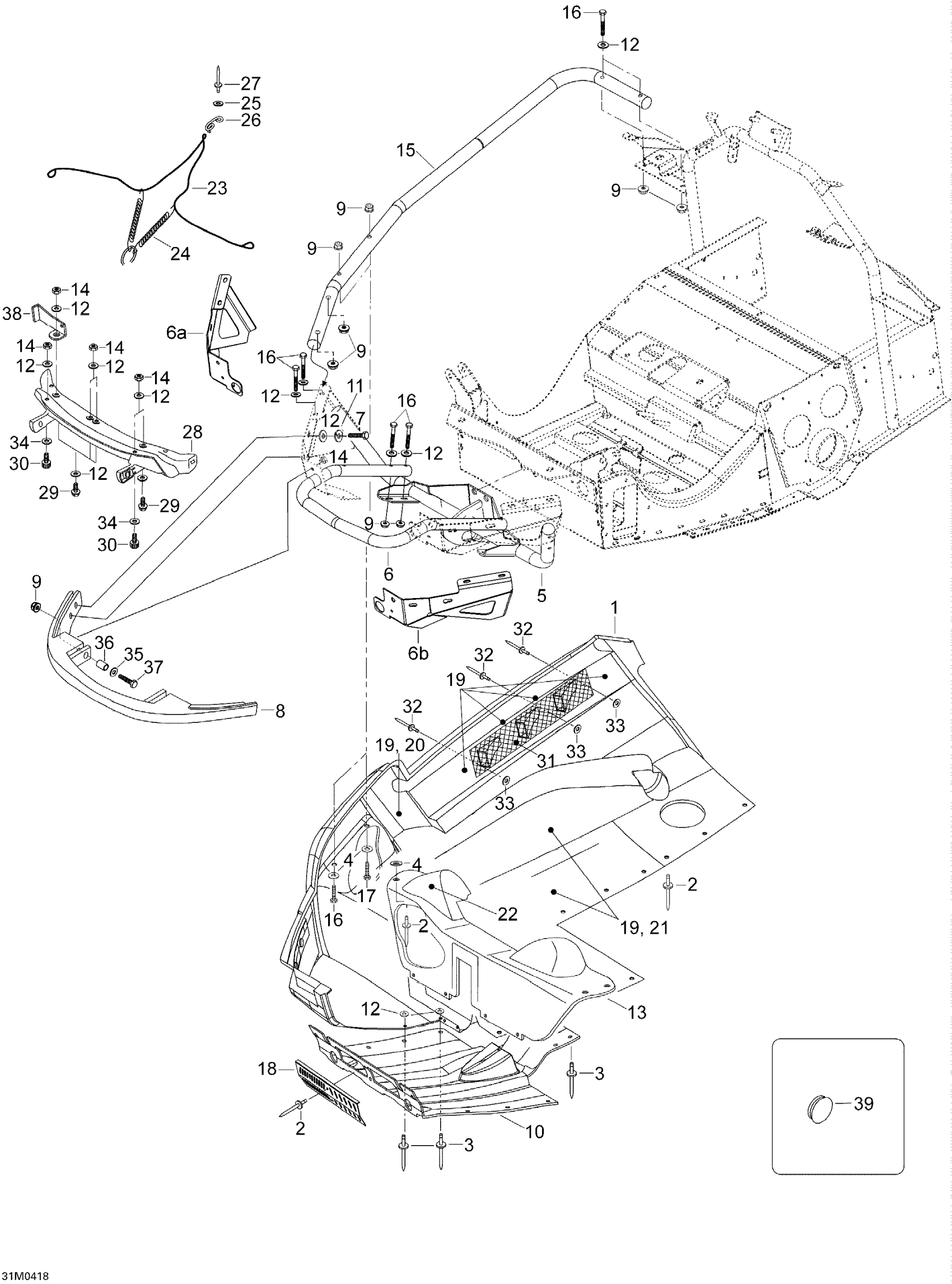

Ski-Doo Expedition 4-TEC, 2004 09- Bottom Pan Diagram

#

Description
Price

1

RH Bottom Pan

605149806

Unavailable

1

LH Boyyom Pan

605149805

Unavailable

2

Black Rivet

36037

$1.48

3

RIVET - Call your local BRP dealership

M36072

Unavailable

4

Washer 5,3 mm

20008

$0.74

5

Bumper Support

605350850

Unavailable

6

BUMPER FRONT - Call your local BRP dealership

605351509

Unavailable

6a

RH Bumper Support

605250848

Unavailable

6b

LH Bumper Support

605250847

Unavailable

7

Hex. Screw M6 X 16

207161644

$0.74

8

Bumper, Black

502006719

$101.49

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Center Bottom Pan

605149807

Unavailable

11

Lock Washer M6, Black

234161471

$0.53

12

Flat Washer 6 mm

234062410

$0.77

13

Shock Cover

605250708

Unavailable

14

Elastic Stop Nut M6

232561414

$0.55

15

Side Bumper

605150849

Unavailable

16

Hex. Screw M6 X 40

207064044

$1.48

17

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

18

Front Grille

605251582

Unavailable

19

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

20

Heat Protection Tap

605351212

Unavailable

21

Heat Protection Tap

605351213

Unavailable

22

Heat Protection Tap

605351214

Unavailable

23

Retainer Cable

605351372

Unavailable

24

Spring This part replaces M5442675.

5442675

$14.99

25

Flat Washer M5

234051410

$0.53

26

Cable Keeper

M5442870

Unavailable

27

Rivet

36005

$2.11

28

Hinge

517302631

$48.99

29

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

30

Screw M6X20

M40381

Unavailable

31

GRILL - Call your local BRP dealership

605351546

Unavailable

32

Rivet *Rivet

M36891

Unavailable

33

Washer

20037

$2.11

34

Washer

20117

$6.39

35

Flat Washer 6 mm

234061410

$1.36

36

BUSHING - Call your local BRP dealership

517302179

Unavailable

37

Hex. Screw

M40003

Unavailable

38

RH HOOD SUPPORT - Call your local BRP dealership

605351464

Unavailable

38

LH HOOD SUPPORT - Call your local BRP dealership

605351463

Unavailable

39

Bottom Pan Cap

570277300

Unavailable
