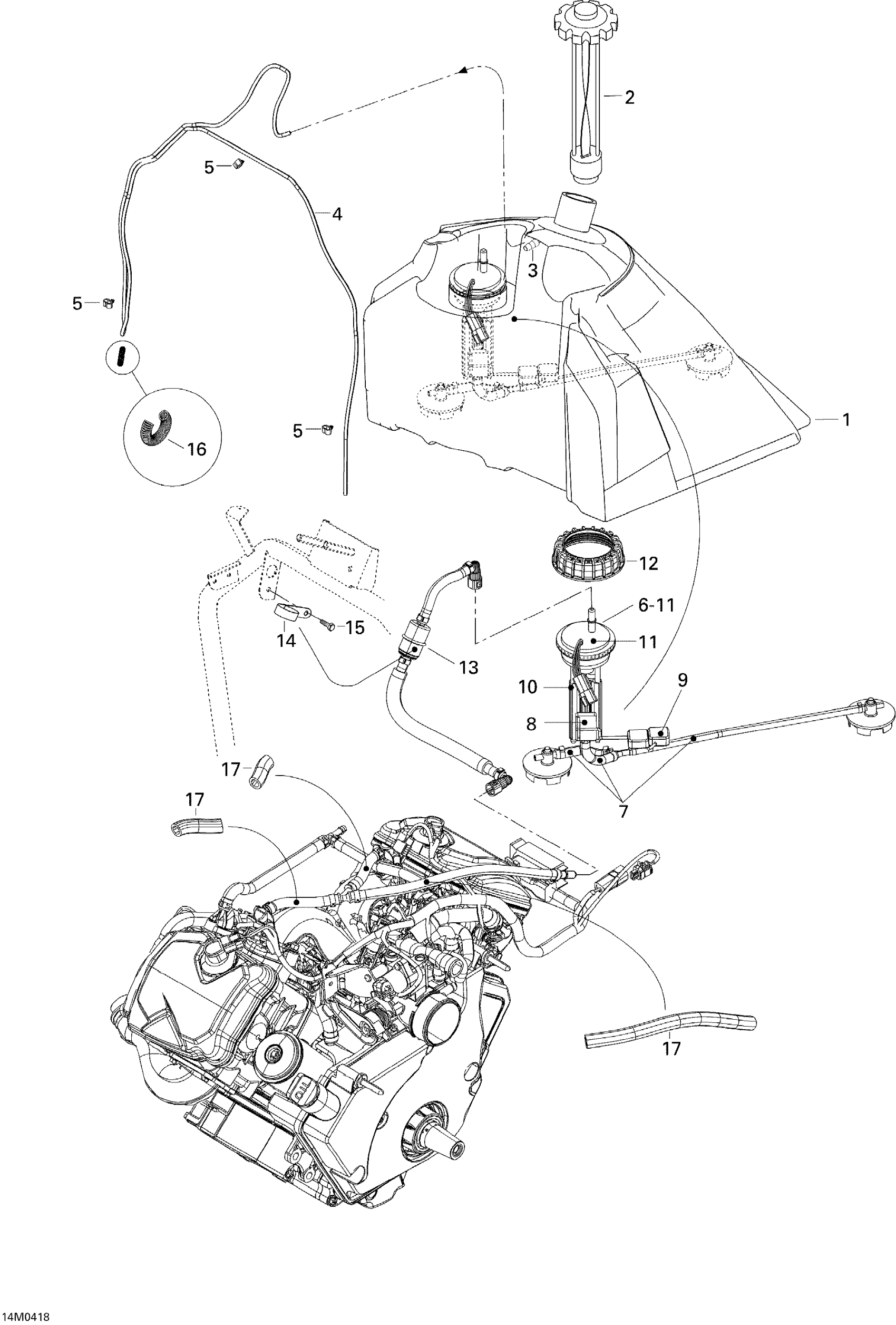

Ski-Doo Expedition 4-TEC, 2004 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

605150515

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

3

NIPPLE - Call your local BRP dealership

404127600

Unavailable

4

HOSE - Call your local BRP dealership

M39035

Unavailable

5

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

6

Fuel Pump Module | Includes 7 to 12

513033101

Unavailable

7

Fuel Hose Kit

861302300

Unavailable

8

Pump Kit

861302000

Unavailable

9

Resistor Card Kit

861301800

Unavailable

10

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

11

Float Lever Kit

861301900

Unavailable

12

Nut, Fuel Pump Module

513033040

$29.99

13

Fuel Filter

513033106

Unavailable

14

Open Clamp

513033047

$5.19

15

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

16

SPRING - Call your local BRP dealership

M25003

Unavailable

17

Was M27127 Tubing

219704355

$23.49
