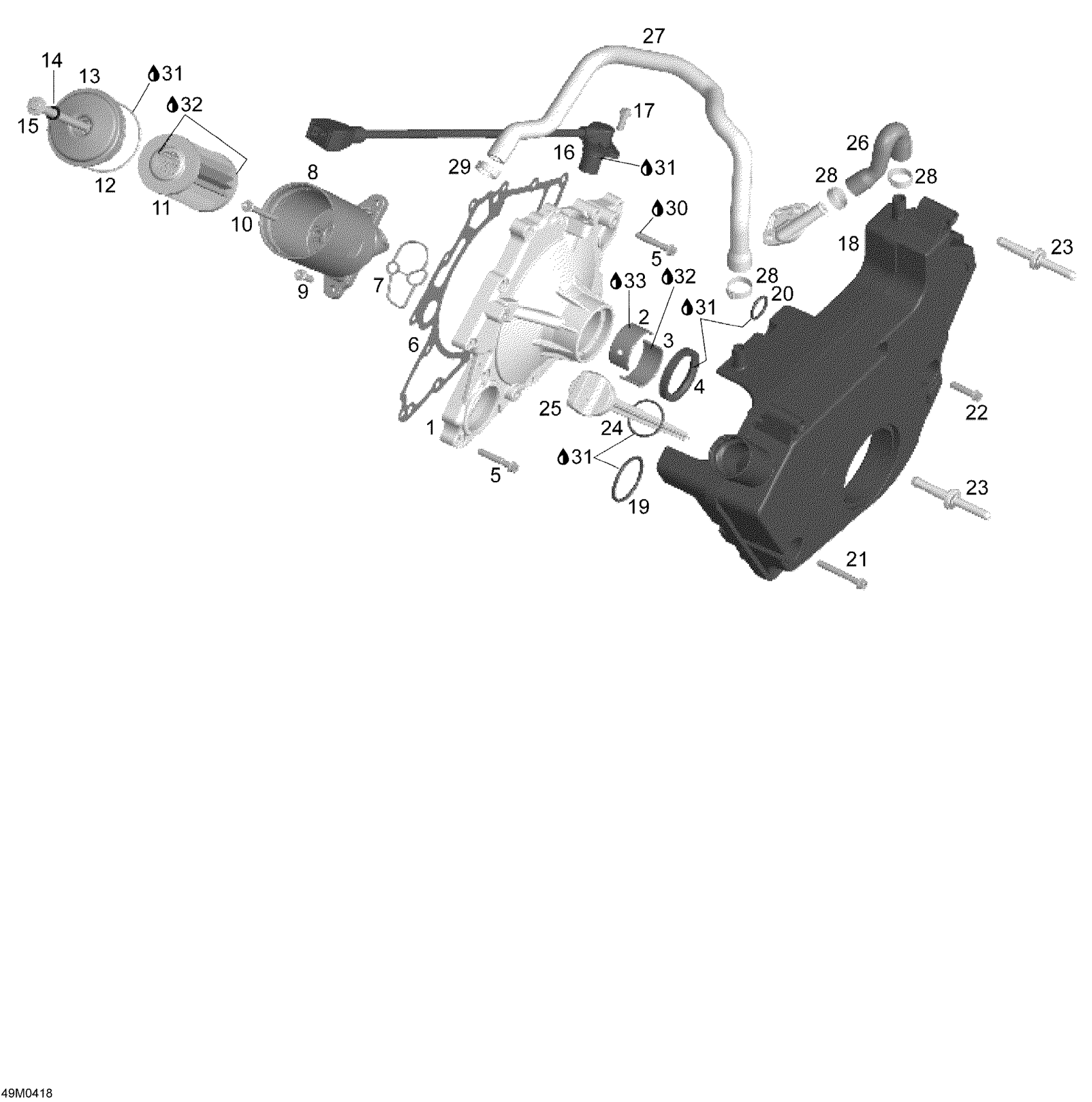

Ski-Doo Expedition 4-TEC, 2004 02- Clutch Cover and Oil Tank Diagram

#

Description
Price

1

Clutch Cover Ass’Y | Includes 1 to 3

420811671

Unavailable

2

HALF BUSHING - Call your local BRP dealership

420933540

Unavailable

3

PLAIN BEARING - Call your local BRP dealership

420933545

Unavailable

4

OIL SEAL - Call your local BRP dealership

420931155

Unavailable

5

Torx Flange Screw M6 X 35

420440274

$1.01

6

GASKET - Call your local BRP dealership

420950610

Unavailable

7

GASKET - Call your local BRP dealership

420950990

Unavailable

8

OIL FILTER HOUSING ASS'Y - Call your local BRP dealership

420811903

Unavailable

9

Torx Flange Screw M6 X 25

420440234

$3.06

10

Hex. Flange Screw M6 X 65

420440602

$6.39

11

Oil Filter

420956741

$13.77

12

O-Ring

420230923

$3.17

13

OIL FILTER COVER - Call your local BRP dealership

420610326

Unavailable

14

O-Ring

420950860

$3.91

15

Oil Filter Screw Kit

295501207

$39.99

16

Crank Position Trigger

420265920

Unavailable

17

Torx Flange Screw M6 X 16

420440162

$3.17

18

Oil Tank Ass’Y

420956700

Unavailable

19

O-RING - Call your local BRP dealership

420631400

Unavailable

20

O-RING - Call your local BRP dealership

420631410

Unavailable

21

Torx Flange Screw M6 X 45

420440324

$0.98

22

Torx Flange Screw M6 X 25

420440234

$3.06

23

FIXATION BOLT - Call your local BRP dealership

420660860

Unavailable

24

O-ring

420430590

$7.65

25

OIL DIPSTICK - Call your local BRP dealership

420956890

Unavailable

26

HOSE - Call your local BRP dealership

420960740

Unavailable

27

HOSE - Call your local BRP dealership

420960801

Unavailable

28

Clamp

420853143

$8.57

29

Clamp

420853313

$8.57

30

Loctite 243, 10 ml

293800060

$21.49

31

Grease, Super Lube

293550030

$28.99

32

Synth Oil 4T 12x1

293600054

Unavailable

33

Petamo Grease, GHY133N, 400 g

420899271

$67.99
