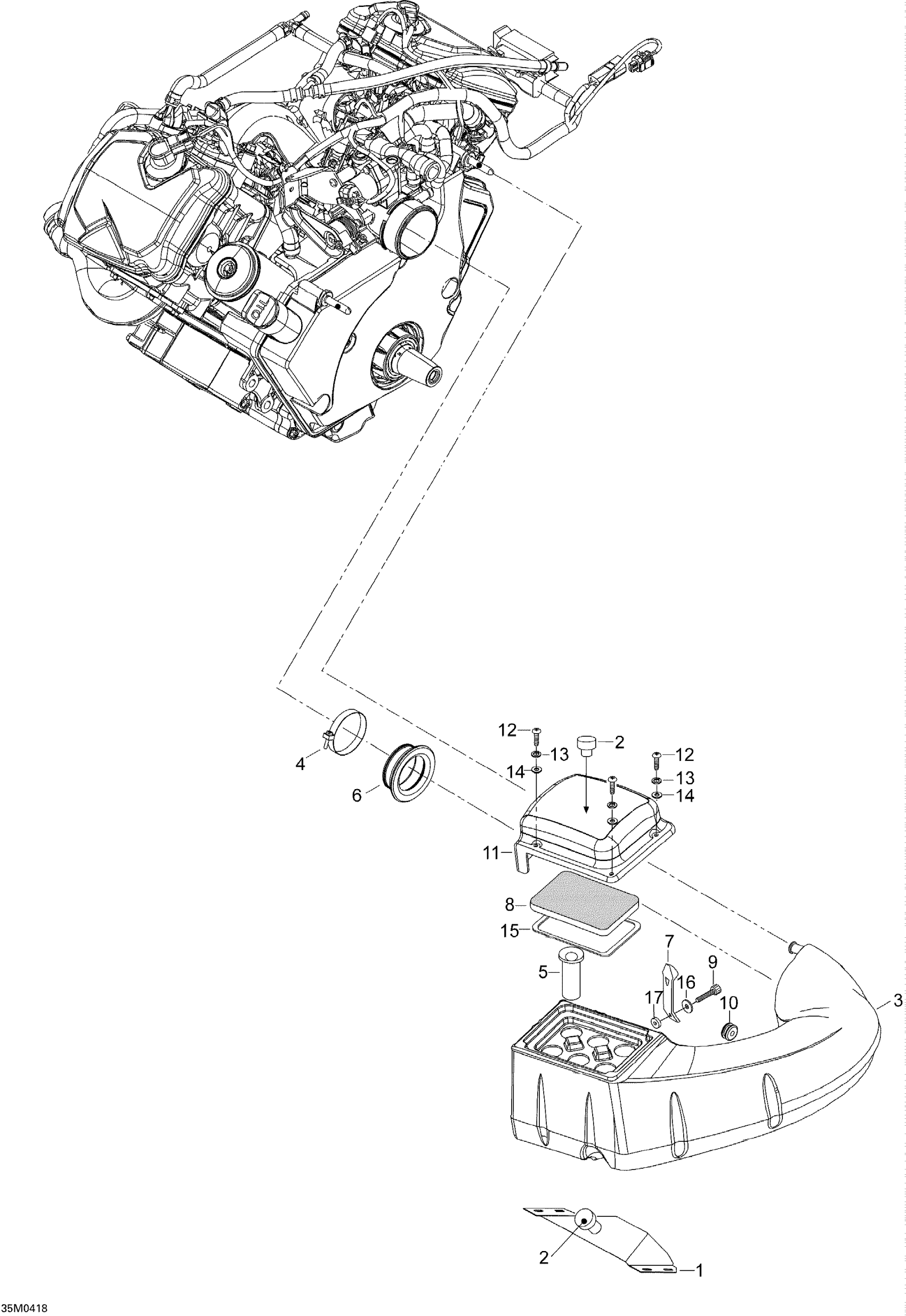

Ski-Doo Expedition 4-TEC, 2004 02- Air Intake System Diagram

#

Description
Price

1

Air Intake Support

605351370

Unavailable

2

Rubber Bumper

570044700

$13.10

3

Air Intake

605150516

Unavailable

4

GEMI CLAMP - Call your local BRP dealership

508000382

Unavailable

5

INLET TUBE - Call your local BRP dealership This part replaces M5444445.

5444445

Unavailable

6

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

7

Hood Latch

M531955

Unavailable

8

Filter

605350180

Unavailable

9

Screw

M40364

Unavailable

10

GROMMET - Call your local BRP dealership

570065500

Unavailable

11

AIR INTAKE COVER - Call your local BRP dealership

605250565

Unavailable

12

Screw

M40070

Unavailable

13

Lock Washer

M20013

Unavailable

14

Washer 5,3 mm

20008

$0.74

15

VELCRO 1/2? - Call your local BRP dealership

415110900

Unavailable

16

Washer

M543392

Unavailable

17

Sleeve

M543417

Unavailable
