Description

Price

1

Indicator | Except Package SWT

515177913

$569.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129370

$11.49

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

7

Safety Nut (DESS Switch)

278002963

$3.28

8

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

8

Key

860201162

$70.99

9

Visor Harness

515177837

$33.99

10

Cap

572103300

$10.49

11

Extension

515175851

$11.12

12

DC Outlet

710001248

$37.99

13

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

WIRING HARNESS ASSY | Includes 1 To WMS This part replaces 515178126.

515179642

$1.00

15

WIRING HARNESS MAIN - Call your local BRP dealership

515178124

$589.99

16

Eco Switch Wiring Harness This part replaces 515177568.

515179615

$104.99

17

ECO Rocker Switch

515177569

$19.49

18

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

19

Clip

270000141

$11.49

20

Avdel Rivet 3/16"

293150037

$0.56

21

Pop Rivet 3/16"

390402200

$0.35

22

Connector Plug

710004904

$8.79

23

Compressor Module | With Air Suspension

515177125

$539.99

24

Ground Wire

515176883

$28.99

25

ALUMINIUM TUBE D22 - Call your local BRP dealership | Engine 1200 4-TEC

39066

Unavailable

26

Tie-Rap 180 mm

414115200

$0.11

26

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

Tie Wrap 142 mm

293750002

$1.25

27

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

27

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

28

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Cap

515176498

$12.99

31

Rubber Cap Protector

219800280

$19.49

32

Torx Screw M6 X 20

250000722

$1.68

33

Panel Nut M6 X 1.0

250100198

$2.11

34

CURRENT OUTLET KIT - Call your local BRP dealership | Includes 20 to 20,007

860200285

Unavailable

35

DC Outlet

710001248

$37.99

36

CURRENT OUTLET BRACKET - Call your local BRP dealership

515176801

Unavailable

37

Rivet

36108

$1.90

38

Heat Grip Switch

410110700

$31.99

39

Switch Cover

515175281

$15.99

40

Harness

515176802

$38.99

41

Velcro

293740059

Unavailable

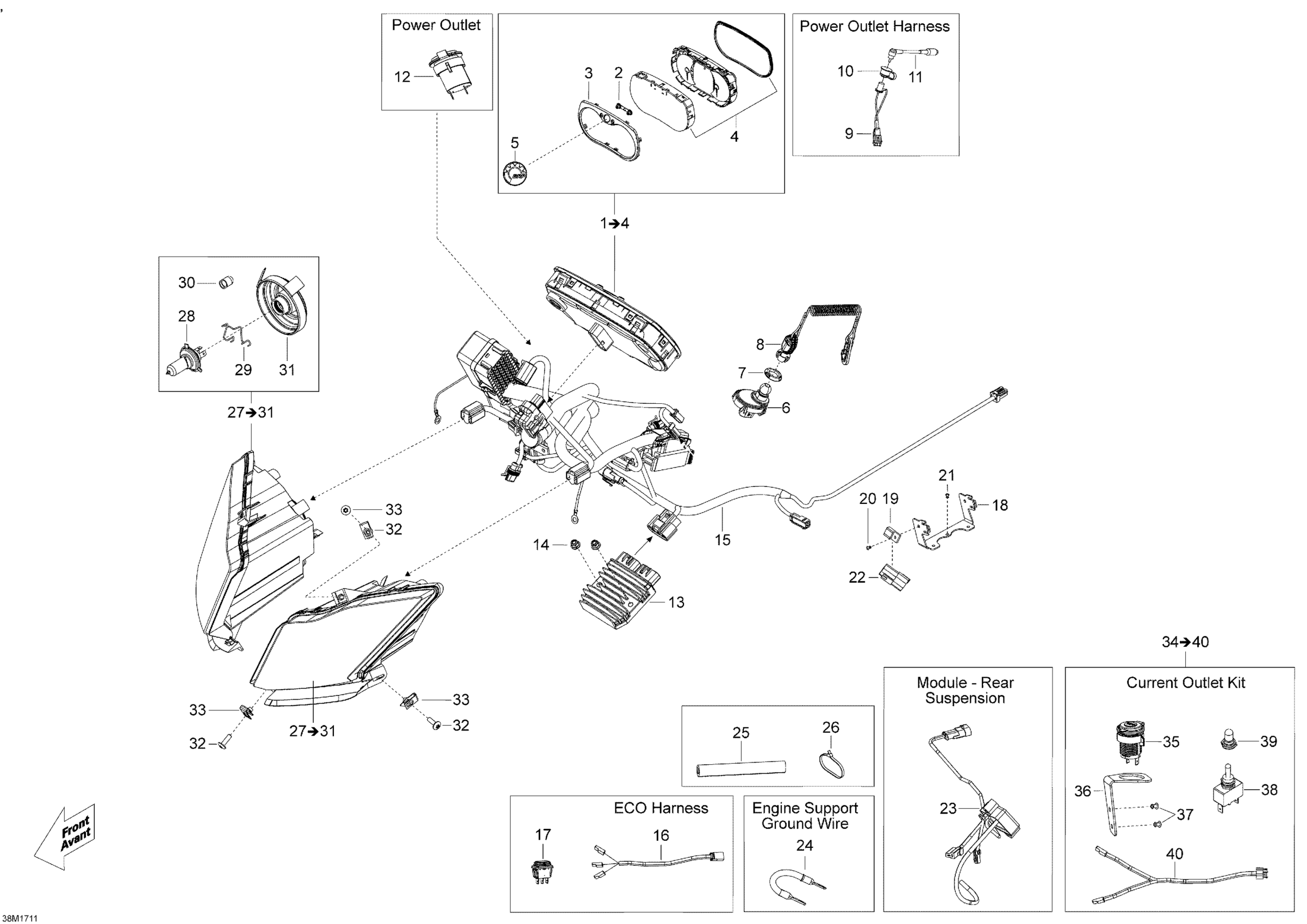

Ski-Doo EXPEDITION - 4-STROKE - LE-SE, 2017 10- Electrical System Diagram
