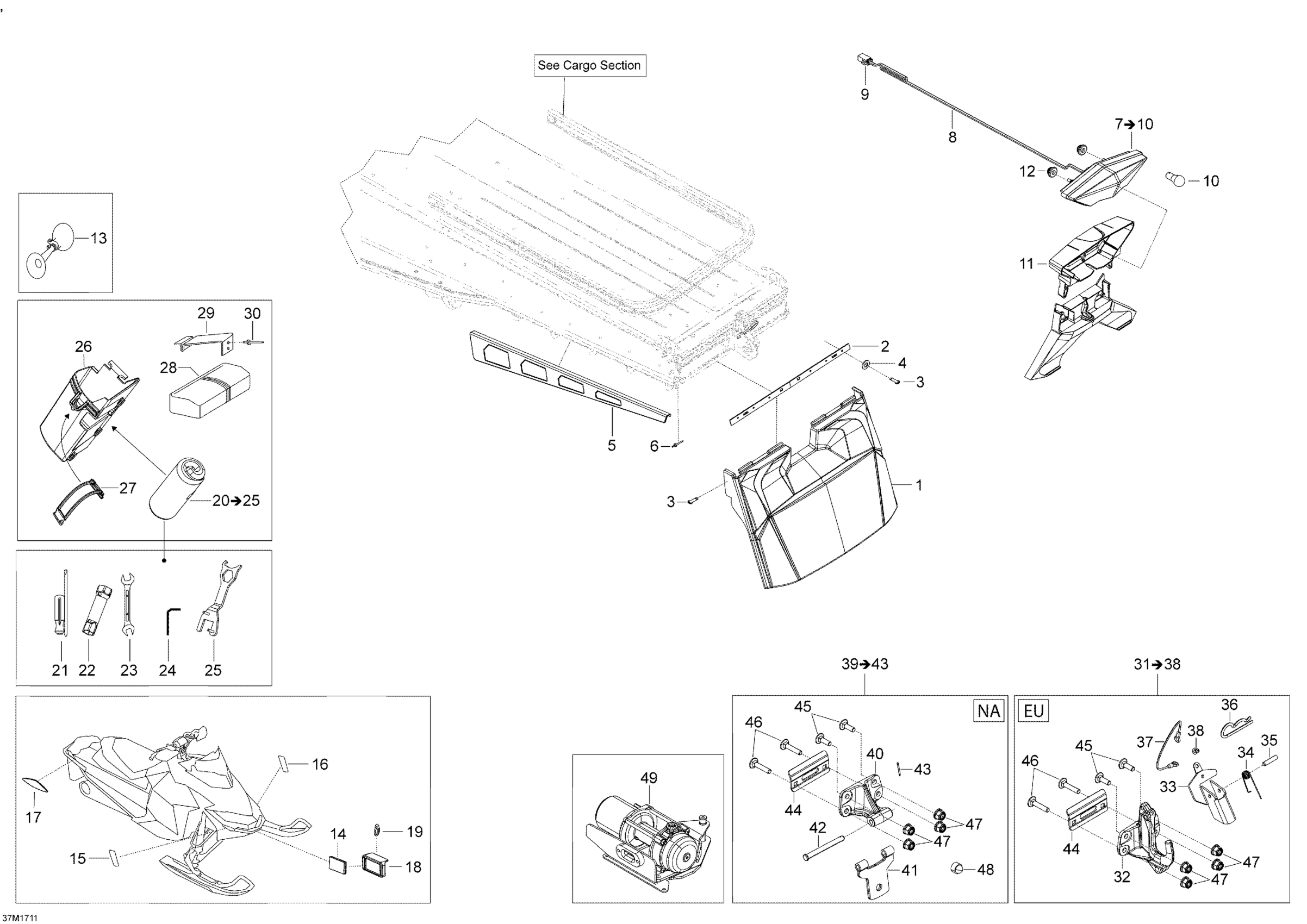

Ski-Doo EXPEDITION - 4-STROKE - LE-SE, 2017 Utilities Diagram

#

Description
Price

1

Black, Snow Guard Long

520001410

$109.99

1

Snow Guard

520001406

$86.99

2

Plate

520001021

$34.58

3

Forming Screw M5 x 16

250000676

$0.83

4

Washer M5

250200025

$0.61

5

RH Protector

520000693

$53.99

5

LH Protector

520000694

$53.99

6

Rivet Hucklok

293150163

$2.82

7

Rear Light | Includes 200 to 200a

520000848

$96.12

8

Rear Wiring Harness

520000849

$50.74

9

Male Housing, 3 Circuits

515175494

$15.35

10

Bulb

520000758

$7.49

11

Rear Light Cover

511000764

$36.12

12

Stopper Rubber

705014429

$6.09

13

Horn

549011291

$35.35

14

Reflector (Bright)

21118

$26.89

15

Yellow, RH Reflector

520001600

$31.51

16

Yellow, LH Reflector

520001601

$31.51

17

Amber, Lateral Reflector

705002423

$13.28

17

Red, Lateral Reflector

705003412

$13.28

18

Deep Black, Reflector Support

520000871

$5.29

19

TIE RAP - Call your local BRP dealership

27120

Unavailable

20

Tools Kit | Includes 1400 to 1400b

520001593

$52.99

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Set Key, 16/21 mm

529000046

$14.49

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Spacing Tool

520001142

$10.99

25

Wrench

520001442

$14.99

26

Tool Kit Rack

520000894

$14.99

27

Latch

520000528

$6.60

28

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

29

Tool Kit Rack

5346728

Unavailable

30

Rivet

36108

$1.85

31

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.99

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Pin

41012

$5.22

36

Hair pin

41029

$4.28

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Avex Rivet

390909100

$0.29

39

Hitch Ass'y | Includes 3600 to 3600a

520001398

$71.51

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

43

Cotter Pin

41031

$6.26

44

Plate

520000727

$33.82

45

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

46

Bolt Carriage M8 X 40

207784044

$1.09

47

Hex. Flange Elastic Nut M8

233281414

$1.14

48

Cover | Model-T3

28056

$5.52

49

WINCH KIT - Call your local BRP dealership | Includes 30 to 30,009

619400069

Unavailable

50

Amber Reflector | Except Europe Model

705011222

$12.32

51

LH Reflector Mount | Package SE

520001744

Unavailable

51

RH Reflector Mount | Package SE

520001746

Unavailable

52

Socket Head Screw M8 X 20

205082044

$1.09

53

Hex. Flange Elastic Nut M8

233281414

$1.14

54

Cover | Model-T3

28056

$5.52

55

Elastic Flange Nut M5

233251494

$1.74
