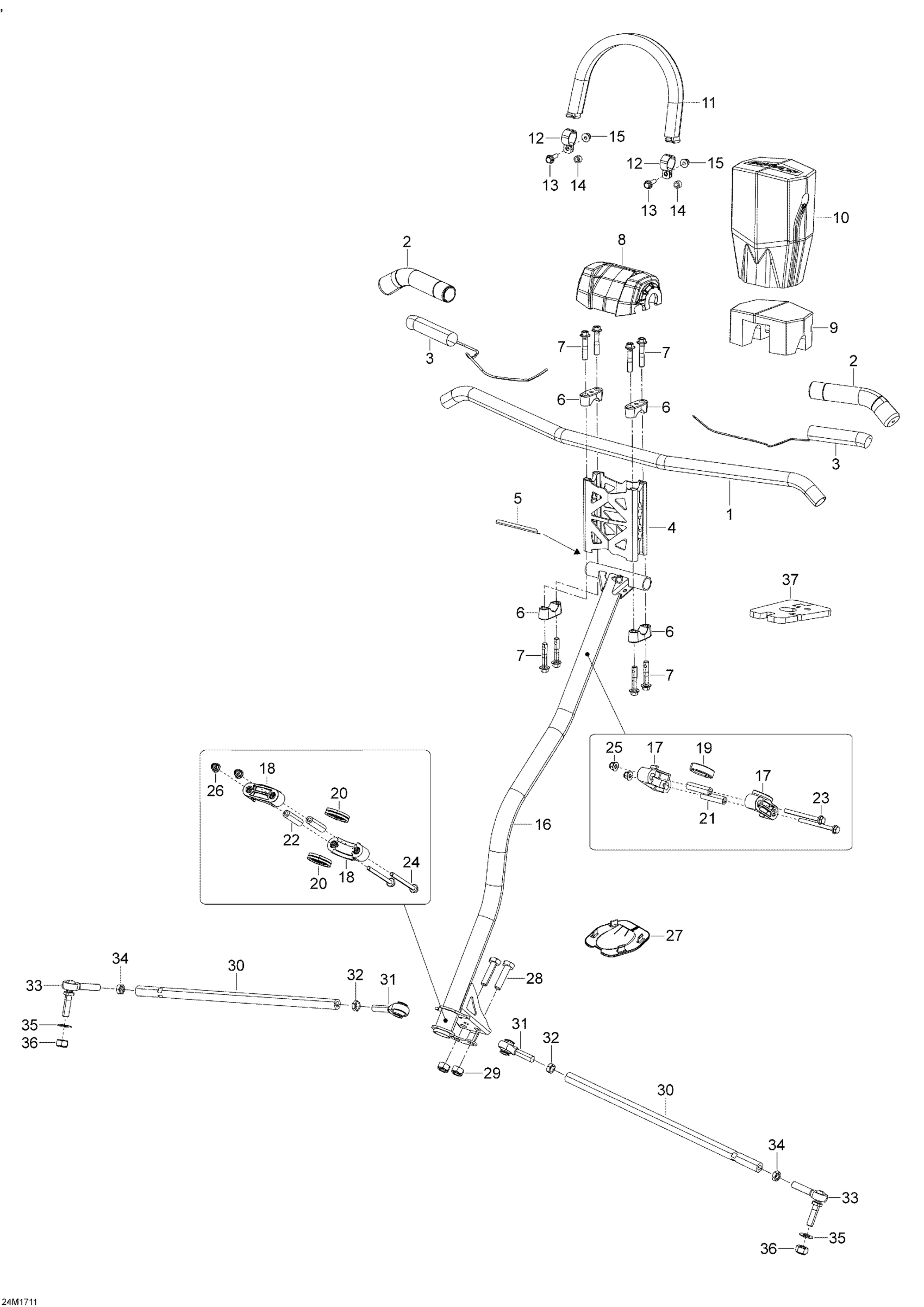

Ski-Doo EXPEDITION - 4-STROKE - LE-SE, 2017 Steering Diagram

#

Description
Price

1

Handle Bar

506152722

$145.35

2

Grip | WAKE This part replaces M5340464.

506152483

$9.85

3

Heated Film, 25W

506152428

$37.66

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.99

4

Tilt Steering | Package SE

506152532

$269.20

5

Limiter Plate | Package SE

506152415

$83.82

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

Hex. Flange Screw M8 x 40

250000285

$0.77

8

Deep Black, Steering Pad

506152541

$42.28

9

Foam | Package SE

506152761

$37.66

10

Steering Cover | Package SE

506152381

$154.99

11

Strap Ass'y | Package XMR

506152115

$43.05

12

Black Support Plate

506152536

$8.60

13

Hex. Flange Screw M6 X 20

207662054

$0.83

14

Bushing | Package XMR

506152156

$5.35

15

Hex. Flange Elastic Nut M6

233261494

$1.26

16

Steering Column

506152964

$189.20

17

Upper Half-Housing

506152508

$7.40

18

Lower Half-Housing

506152217

$5.57

19

Upper Anti-Vibration Gasket

506152509

$4.52

20

Lower Vibration Ring

506152518

$4.52

21

Housing Bushing

506152297

$10.23

22

Housing Bushing

506152297

$10.23

23

Hex. Flange Screw M6 X 70

207667056

$3.61

24

Hex. Flange Screw M6 X 70

207667056

$3.61

25

Elastic Flange Nut M6 X 1.0

233261416

$1.74

26

Elastic Flange Nut M6 X 1.0

233261416

$1.74

27

Plate

506152163

$10.23

28

Hex. Screw M10 X 40

207004044

$4.65

29

Elastic Stop Nut M10

232500416

$1.56

30

Tie-Rod

506152498

$36.89

31

LH Thread Ball Joint

506152081

$39.97

32

LH Threaded Hex. Jam Nut M10

250100016

$0.72

33

RH Threaded Ball Joint

506152684

$42.28

34

RH Threaded Hex. Jam Nut M10

732610010

$0.72

35

Washer

506152582

$4.42

36

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

37

Cushion

506152404

$25.35
