Description

Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$319.99

2

Lever With Parking Lock

507032476

$99.99

3

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

4

Screw M4 X 20

415129356

$2.22

5

Pin Ass'y

415030000

$19.99

6

Microswitch | Grand Touring

507032479

$99.49

7

Male Terminal

515175232

$1.58

8

Clamp And Screw Kit

507032477

$23.99

9

Hex. Flange Screw M6 X 25

250000447

$2.11

10

Banjo Bolt

507032551

$5.61

11

Copper Washer

705601628

$4.44

12

Brake Caliper | Includes 200 to 200c

507032720

$349.49

13

Brake Pads Kit

507032473

$52.99

14

Brake Spring Kit

507032722

$37.99

15

Bleeder

507032475

$19.99

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

18

Banjo Bolt

507032551

$5.61

19

Copper Washer

705601628

$4.44

20

Disk

507032513

$243.99

21

O-Ring

293300134

$2.32

22

Disk Protector | WT

507032537

$60.99

23

Counter Plate | Includes 505 to 505a

518328661

$19.99

24

Hex. Flange Elastic Nut M6

233261494

$1.58

25

Hose, Steel Braided | WT

507032548

$47.49

26

Clamp

293650256

$5.49

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

Open Clamp

414176000

$1.99

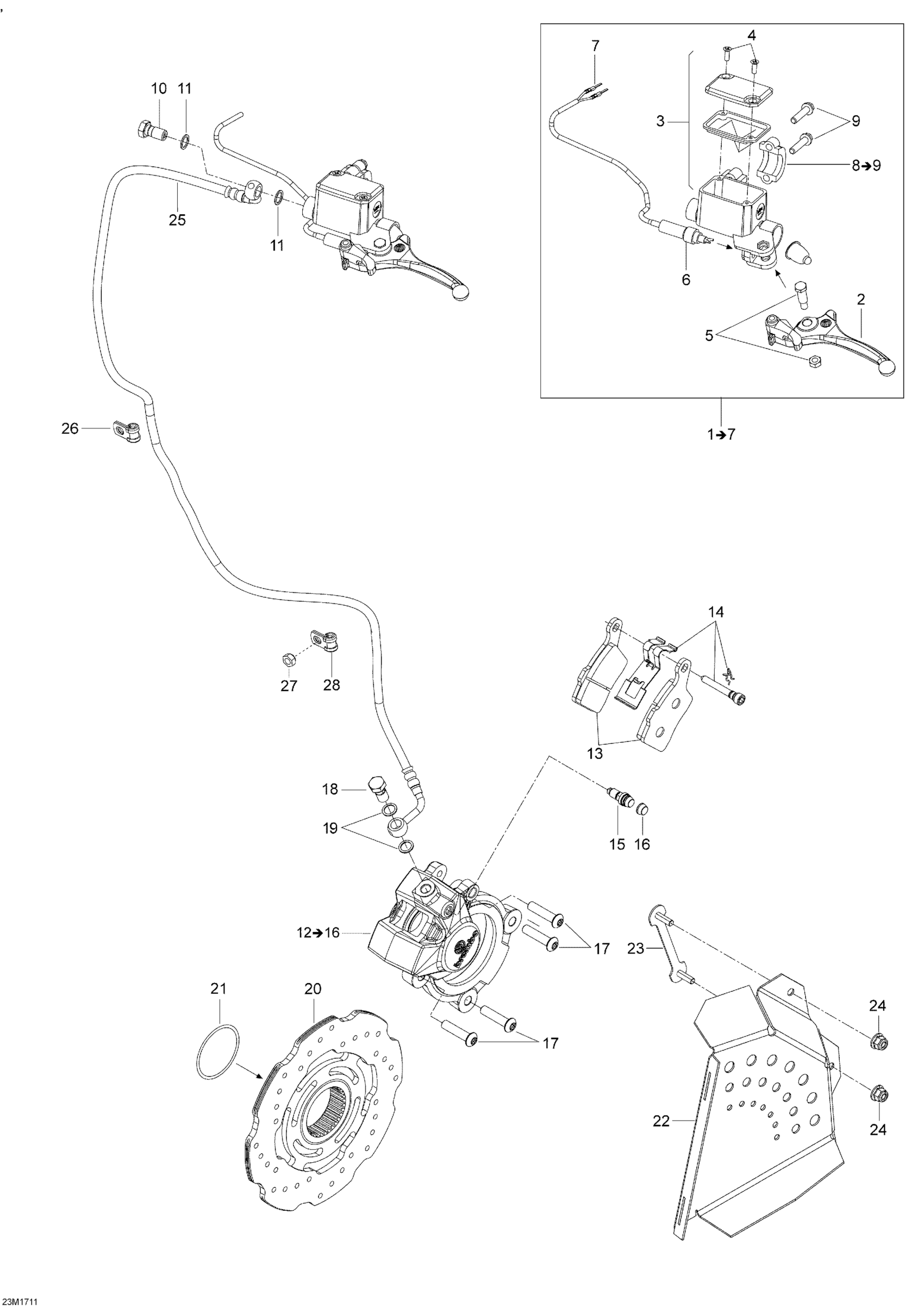

Ski-Doo EXPEDITION - 4-STROKE - LE-SE, 2017 06- Hydraulic Brakes Diagram

Master Cylinder Ass'y | Includes 10 to 10h

Lever With Parking Lock

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

Screw M4 X 20

Pin Ass'y

Microswitch | Grand Touring

Male Terminal

Clamp And Screw Kit

Hex. Flange Screw M6 X 25

Banjo Bolt

Copper Washer

Brake Caliper | Includes 200 to 200c

Brake Pads Kit

Brake Spring Kit

Bleeder

Not Available As Spare Part - Friction Washer

Hex. Button Head Screw M8 X 1.25 X 35

Banjo Bolt

Copper Washer

Disk

O-Ring

Disk Protector | WT

Counter Plate | Includes 505 to 505a

Hex. Flange Elastic Nut M6

Hose, Steel Braided | WT

Clamp

Hex. Flange Elastic Nut M6 x 1.0

Open Clamp
