Description

Price

1

Fuel Tank

513033757

$589.99

2

Fuel Tank Cap 95 Octane | Europe

513033723

$26.99

2

Fuel Tank Cap

513033969

$26.99

3

Fuel Sensor

513033538

$82.99

4

Grommet

293720058

$11.99

5

Check Valve

513033842

$35.99

6

Grommet

513033596

$21.99

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

8

Tie-Rap 180 mm

414115200

$0.11

9

Tie Wrap 142 mm

293750002

$1.25

10

O Ring

293300184

$3.38

11

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$259.99

12

O-Ring

415129509

$19.99

13

Fuel Filter

415129510

$25.99

14

O-Ring

415129511

$18.49

15

Wave Washer

415129512

$19.99

16

Screw

415129513

$9.59

17

Cover

415129685

$29.99

18

Fuel Pump Ring

415129569

$19.49

19

Fuel Filter

415129451

$25.99

20

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

21

Ring

513033180

$19.99

22

Gasket

513033334

$24.49

23

Clamp

513033628

$20.49

24

Hose Ass'y | Includes 500 to 500a

513033582

$77.99

24

Hose Ass'y | Includes 27 to 28

513033583

$82.99

25

Locking Clip

513033135

$5.89

26

Insulate Foam

513033788

$10.49

27

Spring Clamp

414554800

$0.88

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Open Clamp

293850125

$3.17

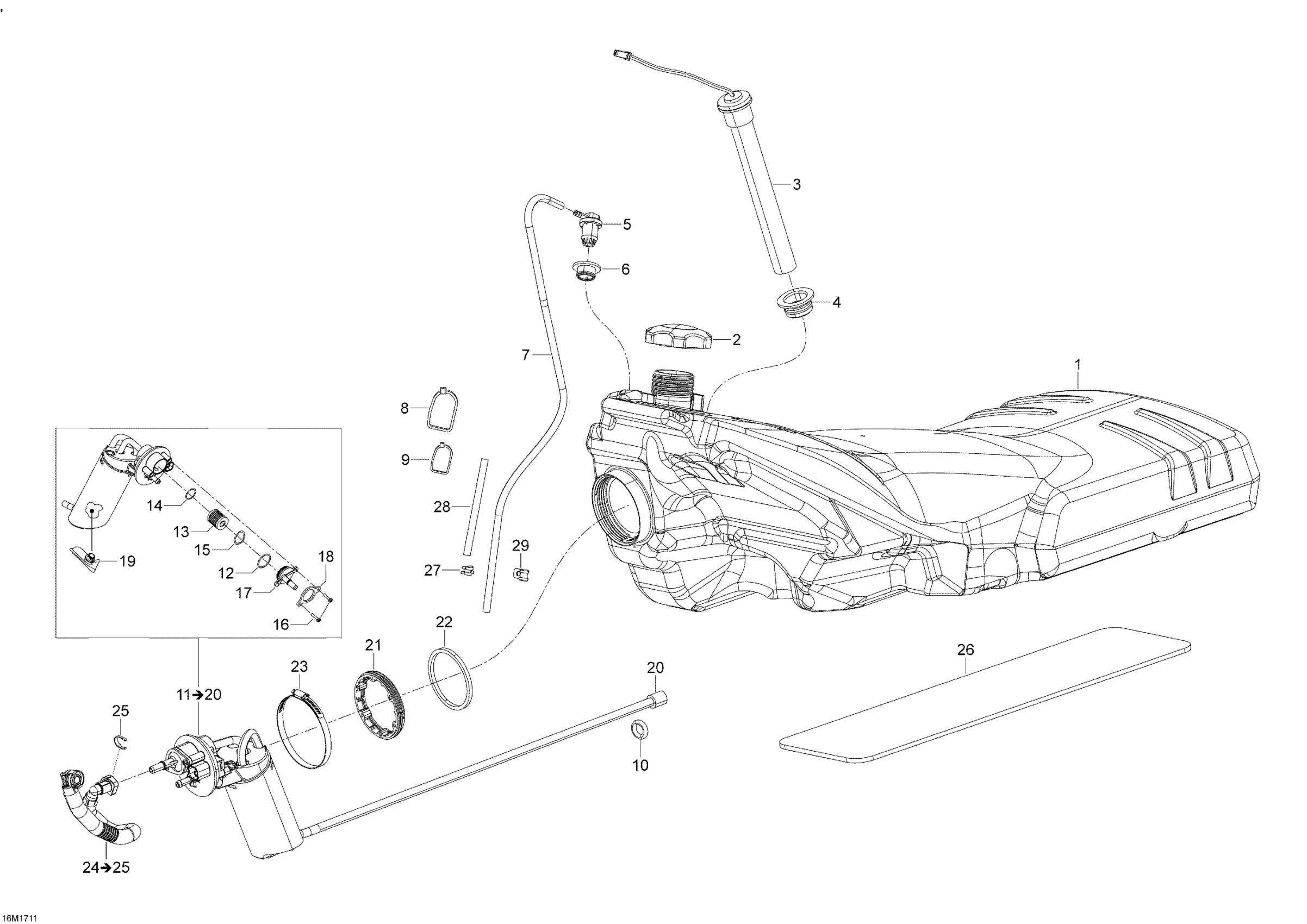

Ski-Doo EXPEDITION - 4-STROKE - LE-SE, 2017 02- Fuel System Diagram

Fuel Tank

Fuel Tank Cap 95 Octane | Europe

Fuel Tank Cap

Fuel Sensor

Grommet

Check Valve

Grommet

Polyurethane Hose 10000Mm Long

Tie-Rap 180 mm

Tie Wrap 142 mm

O Ring

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

O-Ring

Fuel Filter

O-Ring

Wave Washer

Screw

Cover

Fuel Pump Ring

Fuel Filter

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

Ring

Gasket

Clamp

Hose Ass'y | Includes 500 to 500a

Hose Ass'y | Includes 27 to 28

Locking Clip

Insulate Foam

Spring Clamp

Not Available As Spare Part - Friction Washer

Open Clamp
