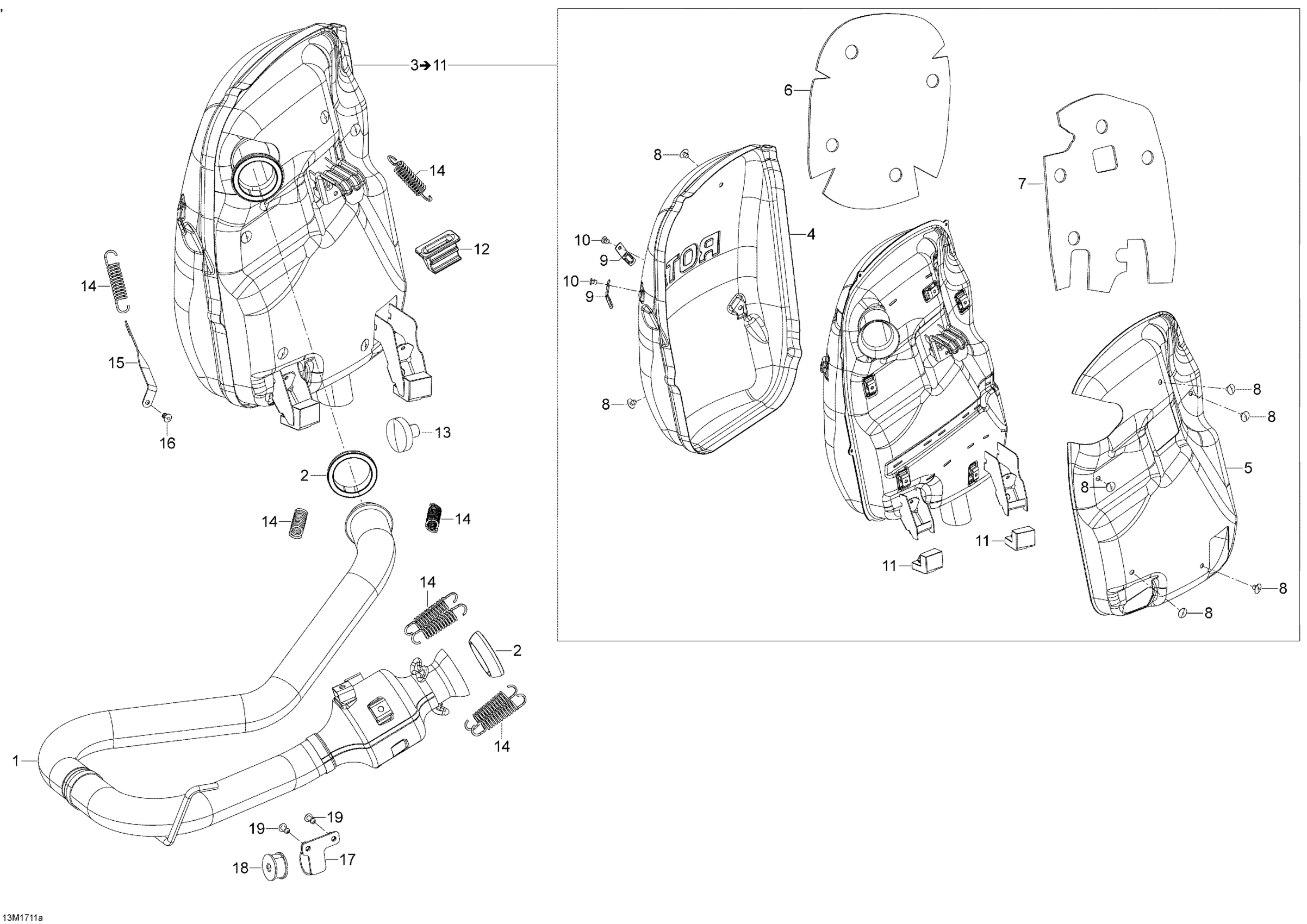

Ski-Doo EXPEDITION - 4-STROKE - LE-SE, 2017 Exhaust System - 900 ACE Diagram

Description

Price

TUBE - Call your local BRP dealership

514055017

Unavailable

Exhaust Gasket

707601033

$13.04

Muffler Ass'y | Includes 400 to 400h

514055326

$698.48

RH Heat Shield

514055325

$52.96

LH HEAT SHIELD - Call your local BRP dealership

514055128

Unavailable

RH Insulating Wool

514054769

$11.28

LH Insulating Wool

514054881

$13.36

Pop Rivet 3/16”

390910000

$0.55

Spring Bracket

514054522

$6.09

Avex Rivet

390909200

$0.28

Lower Stopper

514054529

$17.13

Stopper

514054346

$17.88

Rubber Bumper

514053654

$47.73

Spring

415107100

$6.01

Spring Bracket

514055317

Unavailable

Avex Rivet

390909100

$0.28

Support

514054939

$26.84

Anti-Vibration Rubber

707600702

$8.09

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.00
