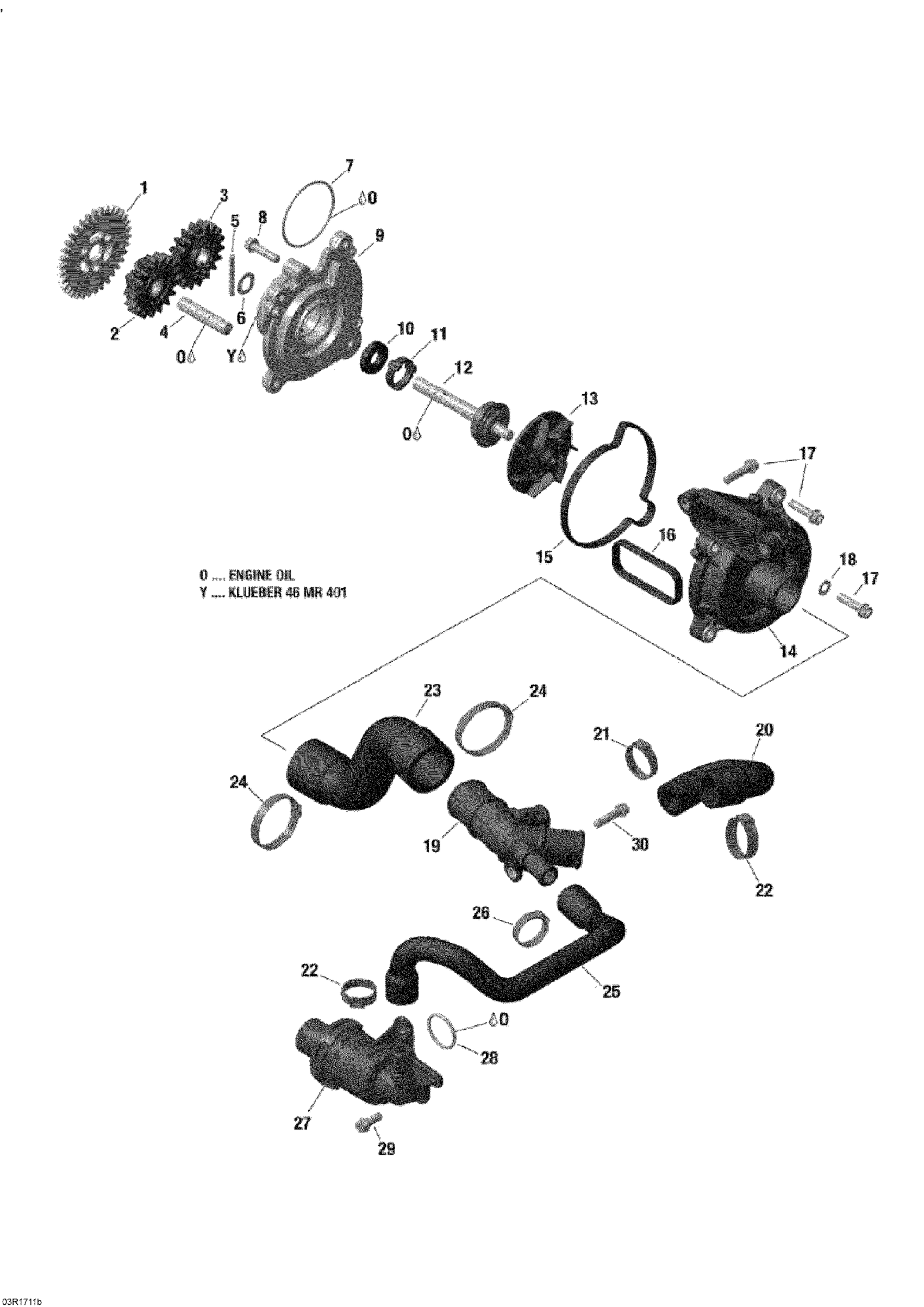

Ski-Doo EXPEDITION - 4-STROKE - LE-SE, 2017 Engine Cooling - 1200 4-TEC Diagram

#

Description
Price

1

Idle Gear, 34 Teeth

420835065

$64.90

2

Idle Gear, 17 Teeth

420835062

$18.63

3

Water Pump Gear, 18 Teeth

420835070

$18.63

4

Location Pin 10 M6x50

420229302

$3.01

5

Needle Pin

420832660

$2.00

6

Thrust Washer

420827590

$3.75

7

O-Ring

293300117

$4.15

8

Torx Flange Screw M6 X 25

420440234

$2.91

9

Step Collar

420910230

$64.90

10

Oil Seal

420650315

$11.04

11

Spacer Ring

420947430

$2.00

12

Water Pump Shaft

420837921

$52.96

13

Water Impeller

420922805

$35.79

14

Water Pump Housing Ass'y | Includes 14 to 16 This part replaces 420822462.

420822463

Unavailable

15

Gasket

420430780

$13.18

16

Gasket

420431290

$13.18

17

Torx Flange Screw M6 X 25

420440234

$2.91

18

Seal Washer

420230415

$1.72

19

Water Manifold

420922141

$37.28

20

MOLDED HOSE - Call your local BRP dealership

420922091

Unavailable

21

Gear Clamp

420851673

$5.40

22

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

23

Molded Hose

420460461

$18.63

24

Gear Clamp

420951293

$8.09

25

Molded Hose

420922132

$29.07

26

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

27

Thermostat Housing Ass'y | Includes 30 to 31

420822541

$67.13

28

O-Ring

420631876

$10.21

29

Torx Flange Screw M6 X 16

420440162

$3.01

30

Torx Flange Screw M6 X 25

420440234

$2.91
