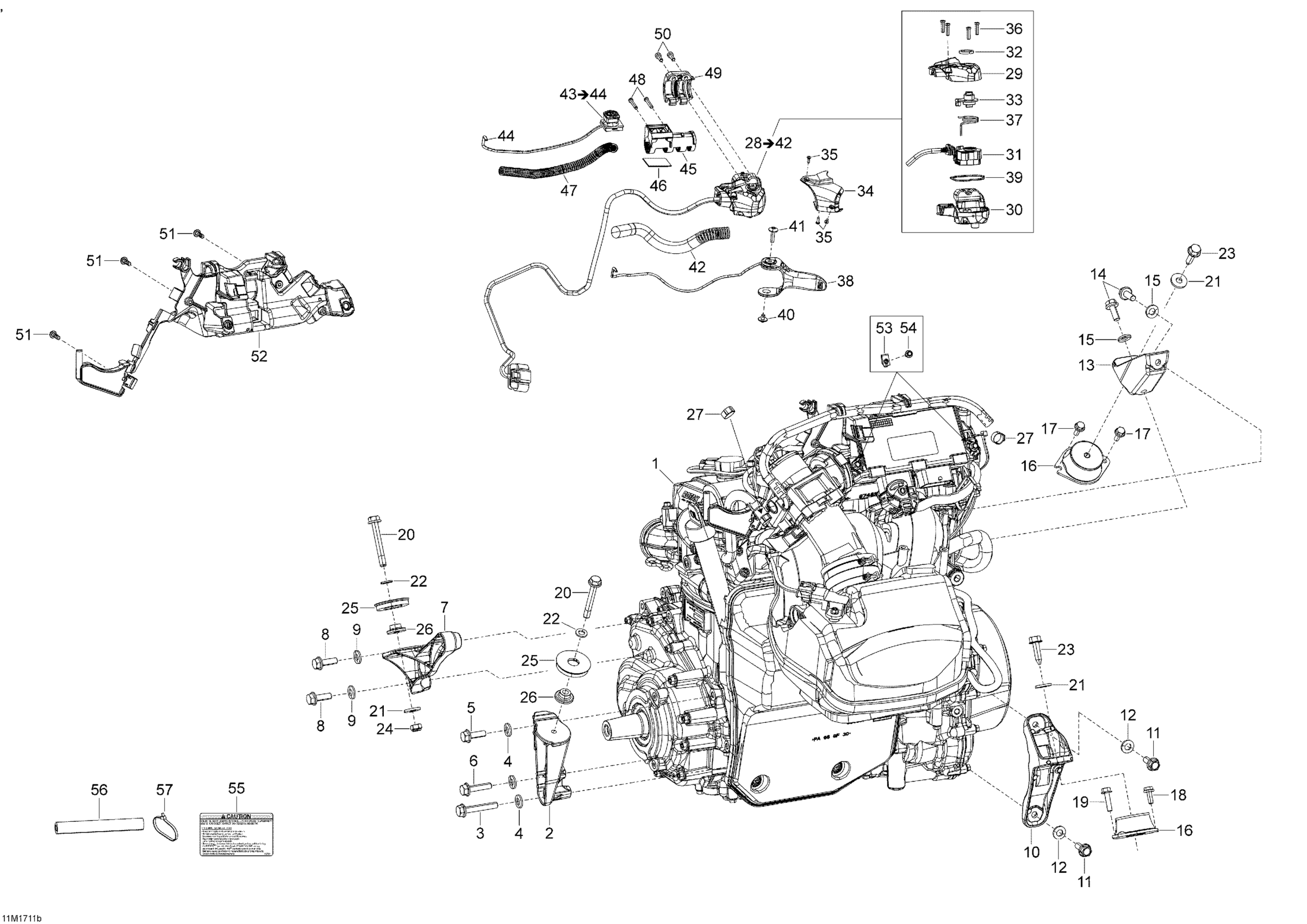

Ski-Doo EXPEDITION - 4-STROKE - LE-SE, 2017 01- Engine And Engine Support - 1200 4-TEC Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rear Support, PTO

512060591

$48.99

3

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.44

4

Conical Spring Washer M8

234281474

$1.48

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

6

Hex. Flange Screw M8 X 35

250000986

$2.11

7

Front Support, PTO

512060593

$29.99

8

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

9

Conical Spring Washer M8

234281474

$1.48

10

Rear Support, MAG

512060594

$31.99

11

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

12

Conical Spring Washer M8

234281474

$1.48

13

Front Support, MAG

512060596

$31.99

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

15

Conical Spring Washer M8

234281474

$1.48

16

Rubber Mount

512060729

$65.99

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

19

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.11

20

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

21

Yellow, Washer

503183200

$3.19

22

Flat Washer With Teflon 8 mm

250200008

$3.80

23

Cone Screw, M8 X 30

250000257

$1.89

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

Stopper This part replaces 512060244.

512061202

$19.49

26

Spacer

512060285

$19.99

27

Oetiker Clamp

293650046

$2.89

28

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$339.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Cap

512060862

$13.49

35

Torx Screw M2.9 x 9.5

250000623

$3.17

36

Torx Screw

250000671

$1.01

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Torx Screw M5 X 20

250000528

$2.11

42

Protector Tube

515177716

$4.55

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

44

Male Terminal

515175232

$1.58

45

Switch Support

512061453

$9.28

46

Friction Tape

294000973

$11.49

47

Protector Tube

515177716

$4.55

48

Torx Screw #8-18

250000263

$1.04

49

Front Housing

512060987

$8.57

50

Torx Screw M5 X 14

250000632

$7.51

51

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

52

Module Support

512061012

$16.33

53

Panel Nut M5 X 0.8

250000958

$4.23

54

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

55

Caution Decal, Oil Level

516005521

Unavailable

56

Aluminium coated fiberglass tube - Call your local BRP dealership

39065

Unavailable

57

Tie-Rap 180 mm

414115200

$0.11
