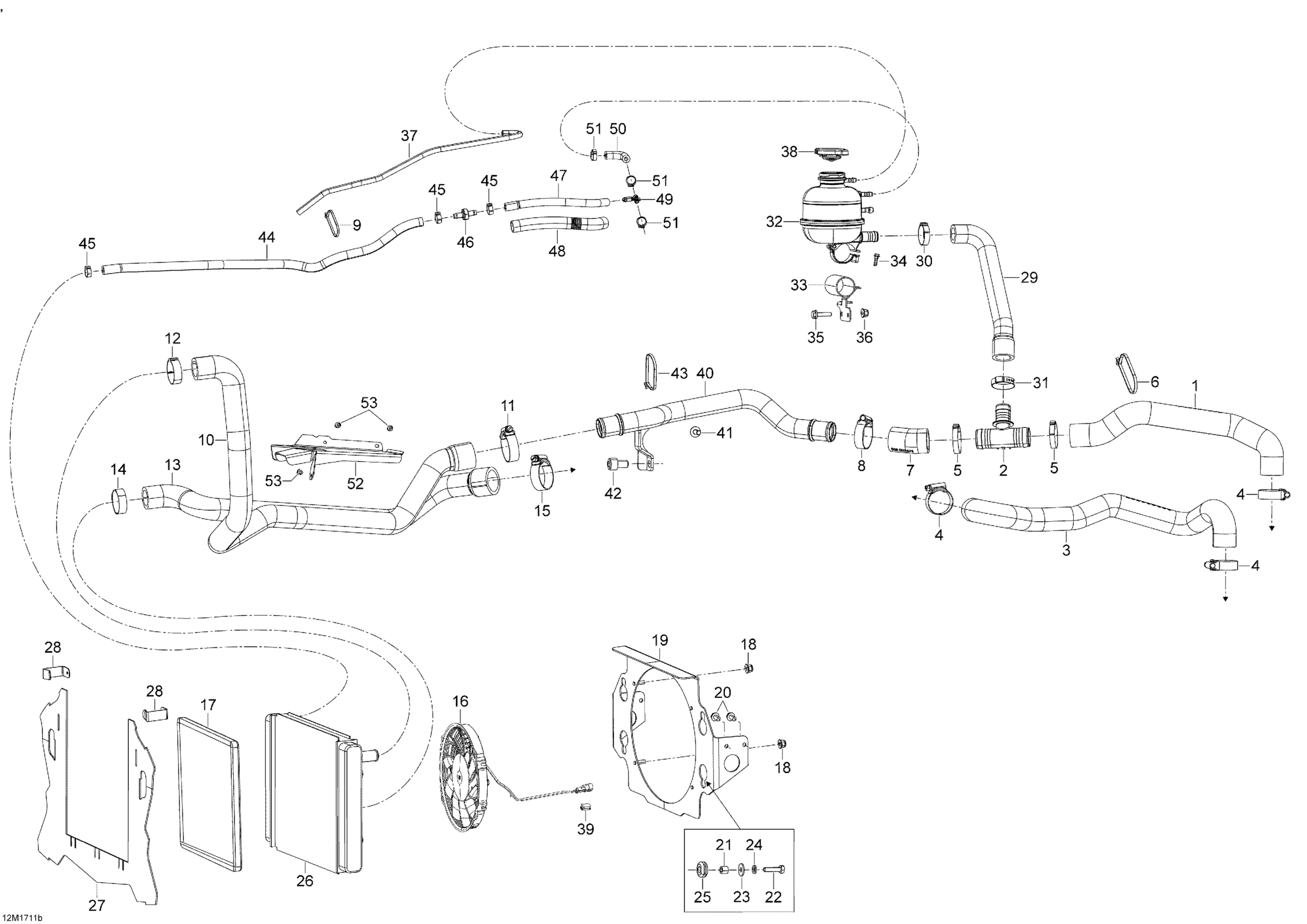

Ski-Doo EXPEDITION - 4-STROKE - LE-SE, 2017 01- Cooling System - 1200 4-TEC Diagram

#

Description
Price

1

Formed Hose

509000894

$15.28

2

T-Fitting

509000372

$10.33

3

Formed Hose

509000895

$41.49

4

Aba Gear Clamp, 26-38 MM

509000443

$12.72

5

Oetiker Gear Clamp

509000181

$4.44

6

Tie Wrap 368 mm

293750008

$1.04

7

Engine Inlet Hose This part replaces 509000675.

509001067

$17.53

8

Aba Gear Clamp, 26-38 MM

509000443

$12.72

9

Tie-Rap 180 mm

414115200

$0.11

10

Hose, Front Radiator ( Air Engine)

509000780

$37.99

11

Aba Gear Clamp, 26-38 MM

509000443

$12.72

12

Oetiker Gear Clamp

293650165

$5.39

13

Hose, Front Radiator (Engine)

509000781

$25.99

14

Oetiker Gear Clamp

293650165

$5.39

15

Aba Gear Clamp, 26-38 MM

509000443

$12.72

16

Cooling Fan

509000838

$217.49

17

Insulation

509000718

$61.49

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Radiator support | Includes 3340 to 3340a

509000791

$94.49

20

Hex. Flange Screw M6 X 40

207664044

$2.22

21

Bushing

605453745

$13.16

22

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

23

Flat Washer 6 mm

234062410

$0.77

24

Lock Waasher

234161431

Unavailable

25

Grommet

709000582

$4.69

26

Radiator

509000787

$222.49

27

Air Deflector

509000700

$44.99

28

Deflector Clip

509000703

$41.49

29

Filling Hose

509000663

$62.49

30

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

31

Crimp Clamp

293650099

$4.29

32

Coolant Tank

509000421

$92.99

33

Reservoir support

509000856

$19.49

34

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

35

Hex. Flange Screw M6 X 25

207662544

$0.64

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hose 6 Mm 15000Mm Long

219704360

$132.49

38

Radiator Pressure Cap

509000180

$20.49

39

Clip

710000992

$4.29

40

Water Pipe Aluminum

509000724

$158.99

41

Torx Head Screw M6 X 16

250000717

$2.11

42

Socket Screw M10 X 16

205501644

$4.29

43

Tie-Rap 180 mm

414115200

$0.11

44

Was 509000407 Hose 8 mm

219704420

$50.99

45

Oetiker Clamp

293650140

$2.69

46

Check Valve

509000153

$19.99

47

Hose-formed

509001069

$15.28

48

Tubing 16 Mm 1000Mm Long

219704408

$7.49

49

Y-Fitting

293710140

$8.11

50

Hose

509001070

$13.16

51

Oetiker Clamp

293650046

$2.89

52

HEAT DEFLECTOR - Call your local BRP dealership This part replaces 509000751.

509000839

Unavailable

53

Avex Rivet

390909200

$0.30
