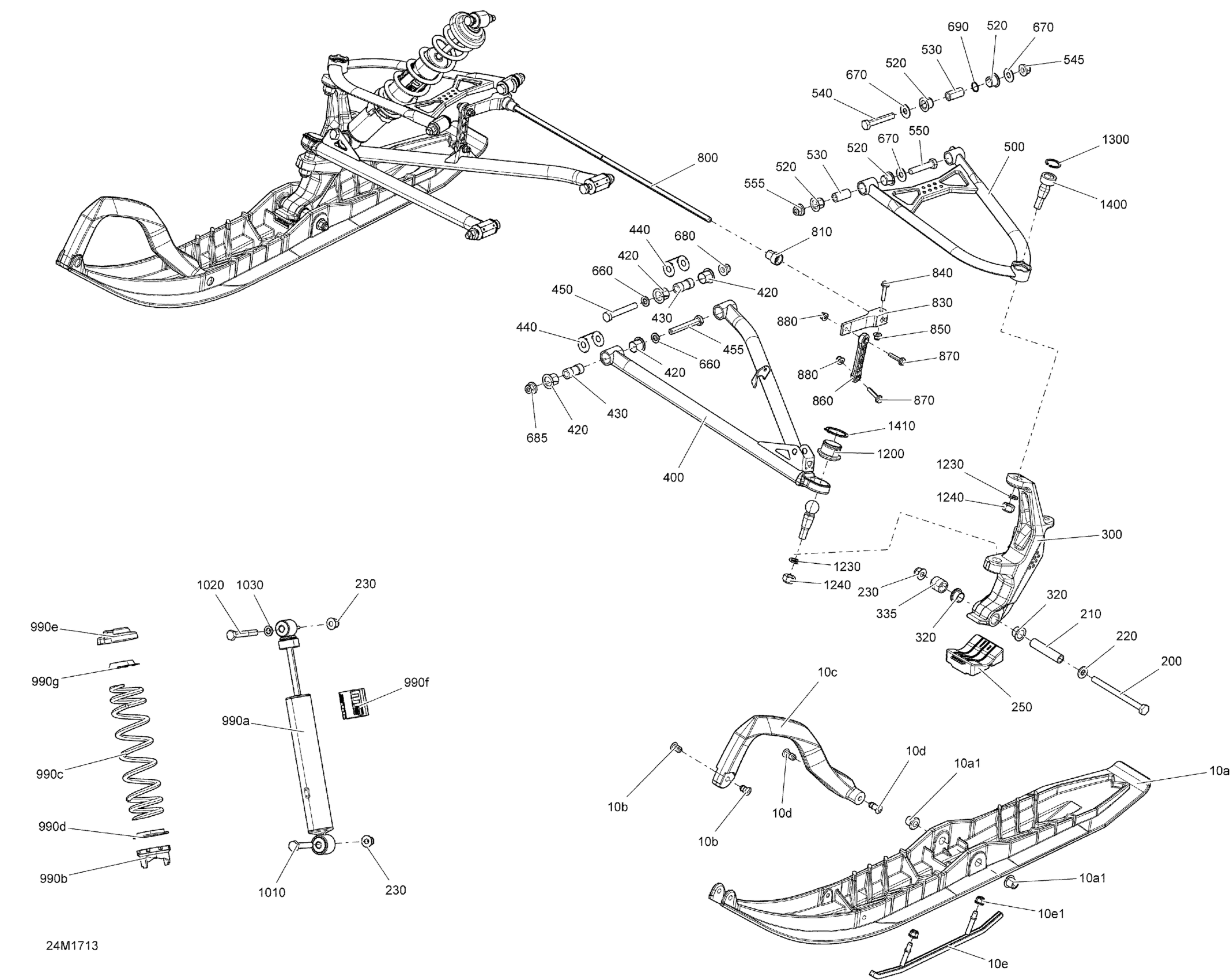

Ski-Doo EXPEDITION - 2-STROKE - SPORT, 2017 Front Suspension And Ski - All Models Diagram

#

Description
Price

10a>10a1

Black, Ski

505073227

$179.99

10a1

Ski Bushing

505071781

$16.18

10b

Retainer 17mm long

505071812

$5.95

10c

Black, Handle

505072976

$35.99

10d

Retainer 23mm Long

505072133

$6.78

10e>10e1

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

10e1

Hex. Flange Elastic Nut M8

233281414

$1.47

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

210

Spacer

506133300

$23.99

220

Washer

503192496

$0.77

230

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

250

Ski Stopper

505072594

$18.49

300

White, LH Ski Leg

505073559

$249.99

300

White, RH Ski Leg

505073560

$249.99

320

Leg Bushing

505072690

$12.49

400

Black, RH Lower Arm

505072497

$204.99

400

Black, LH Lower Arm

505072498

$204.99

420

Bushing

505072208

$3.28

430

Sleeve

505072209

$17.84

440

Wear Plate

505072634

$6.29

450

Screw Hex. M10 X 70

250001024

$2.11

455

Screw Hex. M10 X 70

250001024

$2.11

500

LH Upper Arm 39"

505073468

$154.99

500

RH Upper Arm 39"

505073469

$154.99

520

Bushing

505072250

$3.28

530

Sleeve

505072143

$9.00

540

Screw Hex. M10 X 60

250001023

$2.11

545

Hex. Flange Elastic Nut M10

250100165

$0.85

550

Screw Hex. M10 X 50

250001022

$1.69

555

Hex. Flange Elastic Nut M10

250100165

$0.85

660

Washer

503189564

$0.74

670

Washer

505072392

$4.76

680

Hex. Flange Elastic Nut M10

250100165

$0.85

685

Hex. Flange Elastic Nut M10

250100165

$0.85

690

O-Ring

505072448

$2.32

800

Stabilisator

505072602

$68.99

810

Bushing

505072064

$2.32

830

Stabilisator Lever

505072394

$18.73

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

850

Hex. Flange Elastic Nut M6

233261466

$2.00

860

Sway Bar Double Joint Link

505072204

$21.99

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

880

Hex. Flange Elastic Nut M6

233261466

$2.00

990a

Front Shock

505073181

$164.49

990b

Adjustment Cam

505073625

$12.99

990c

Full Moon Spring

505072897

$67.99

990d

Spring Guide

503187500

$10.49

990e

Spring Stopper

706200881

$12.99

990f

Shock Decal "Mc"

516005535

$12.99

1010

Hex Screw M10 X 1.5 X 55

207005554

$7.51

1020

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

1030

Washer

503189564

$0.74

1200

Ball Joint

505073636

$51.99

1230

Washer

503192491

$4.54

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.11

1300

Circlip

293370070

$8.99

1400

Upper Ball Joint

505072913

$72.99

1410

Circlip

293370035

$2.64
