Pulley System - All Models

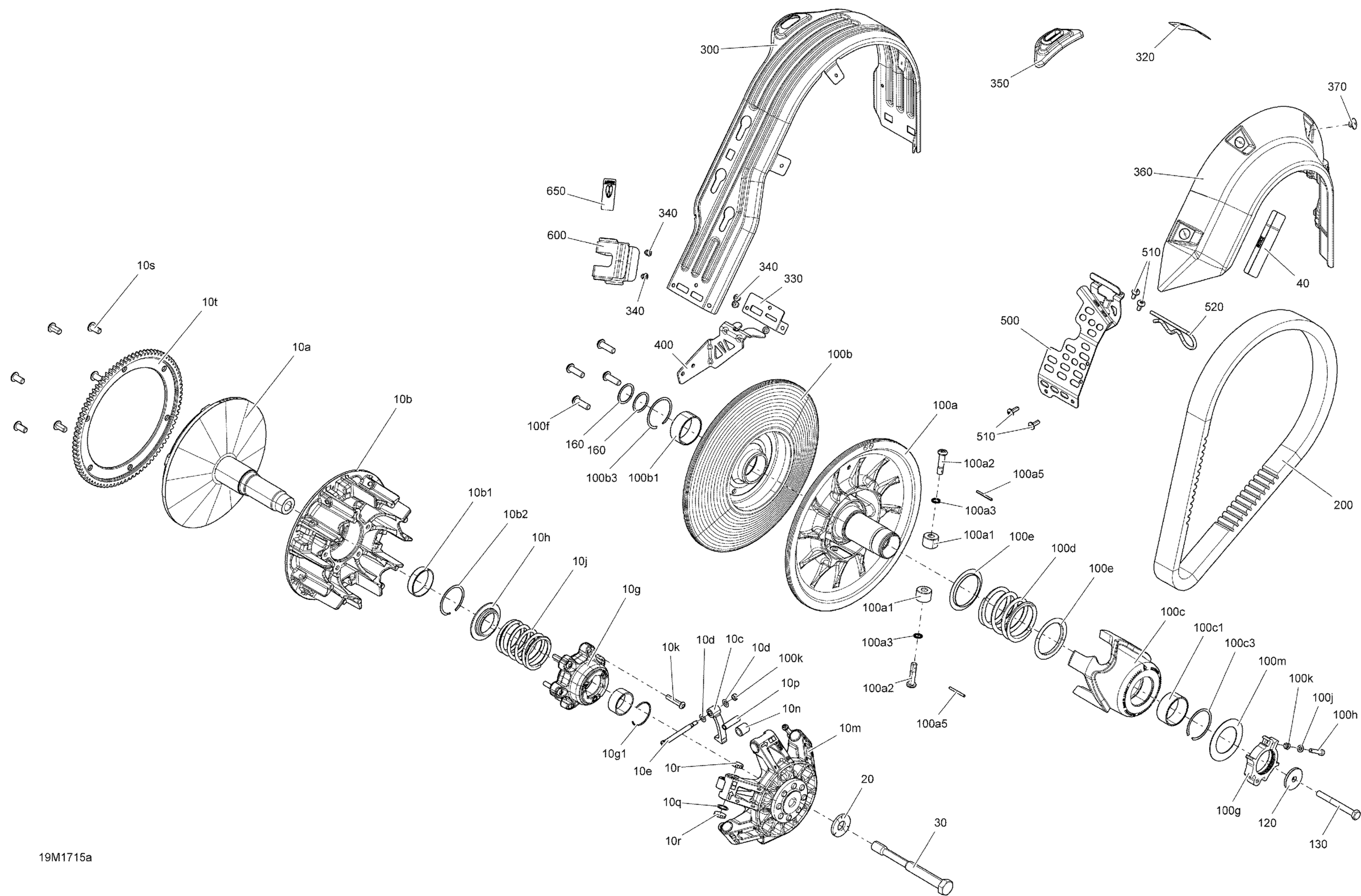

Ski-Doo EXPEDITION - 2-STROKE - SPORT, 2017 Pulley System - All Models Diagram
#
10a
Fixed Flange Ass'y | Includes 10a to 10c This part replaces 417224097.
417224097
Unavailable
10b>10b2
Sliding Flange Ass'y | Includes 10b to 10b3
417224101
Unavailable
10b1
Bushing
417222758
Unavailable
10b2
Circlip
293370037
Unavailable
10c
Ramp 700 Ass'y This part replaces 417223557.
417223604
Unavailable
10d
Thrust Washer
417223255
Unavailable
10e
Ramp Axle
417223694
Unavailable
10f
Elastic Stop Nut M5
232551414
Unavailable
10g>10g1
Spring Cover Ass'y | Includes 10j to 10j3
417223907
Unavailable
10g1
Circlip
293370065
Unavailable
10h
Seat Spring
417223752
Unavailable
10j
Spring Clutch
417223748
Unavailable
10k
Torx Screw M6 X 30
250000580
Unavailable
10m
Governor Cup Ass'y
417223865
Unavailable
10n
Roller
417223767
Unavailable
10p
Roller Axle
417223257
Unavailable
10q
O-Ring
293300185
Unavailable
10r
Slider Shoe
417223919
Unavailable
10s
Torx Button Head Screw M8 X 16
250000706
Unavailable
10t
Crown Gear Launch
417223476
Unavailable
20
Conical Spring Washer M14
250200144
Unavailable
30
Pulley Drive Bolt
417300432
Unavailable
40
Decal English
516005503
Unavailable
100a>100a5
Fixe Flange Ass'y | Includes 100a to 100f
417127392
Unavailable
100a1
Pulley Roller
417127016
Unavailable
100a2
Pivot Stud
417127294
Unavailable
100a3
Lock Washer 8 mm
250200009
Unavailable
100a5
Spring Pin M3 X 30
250400063
Unavailable
100b>100b3
Slider Flange Ass'y | Includes 100b to 100b3
417127366
Unavailable
100b1
Bushing ID 41mm OD 45mm X 19mm L
417127318
Unavailable
100b3
Circlip
293370049
Unavailable
100c>100c3
Cam Ass'y | Includes 100c to 100c3
417127367
Unavailable
100c1
Bushing ID 41mm OD 45mm X 19mm L
417127318
Unavailable
100c3
Circlip
293370049
Unavailable
100d
Spring
417127061
Unavailable
100e
Swivel Abutment
417127116
Unavailable
100f
Button Head Torx Screw M8 X 25 S.Gr
250000757
Unavailable
100g
Calibration Ass'y
415129604
Unavailable
100h
Socket Screw M5 X 25
205052544
Unavailable
100j
Flat Washer M5
234051410
Unavailable
100k
Elastic Stop Nut M5
232551414
Unavailable
100m
Washer
417127155
Unavailable
120
Strength Washer
517302322
Unavailable
130
Hex. Cap Screw M8 X 75
207287544
Unavailable
160
Spacer
417300265
Unavailable
200
Drive Belt
417300585
Unavailable
300
Belt Guard
417300382
Unavailable
320
Safety Belt Guard Decal
516005509
Unavailable
330
Reinforcement
417300380
Unavailable
340
Avex Rivet
390909200
Unavailable
350
Guide
417300381
Unavailable
360
Side Protector
417300356
Unavailable
370
Pop Rivet 3/16"
293150103
Unavailable
400
Front Belt Guard Bracket
417300386
Unavailable
410
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
500
BELT GUARD BRACKET - Call your local BRP dealership
417300448
Unavailable
510
Torx Screw M5 X 14
250000742
Unavailable
520
Hair Pin
114045200
Unavailable
