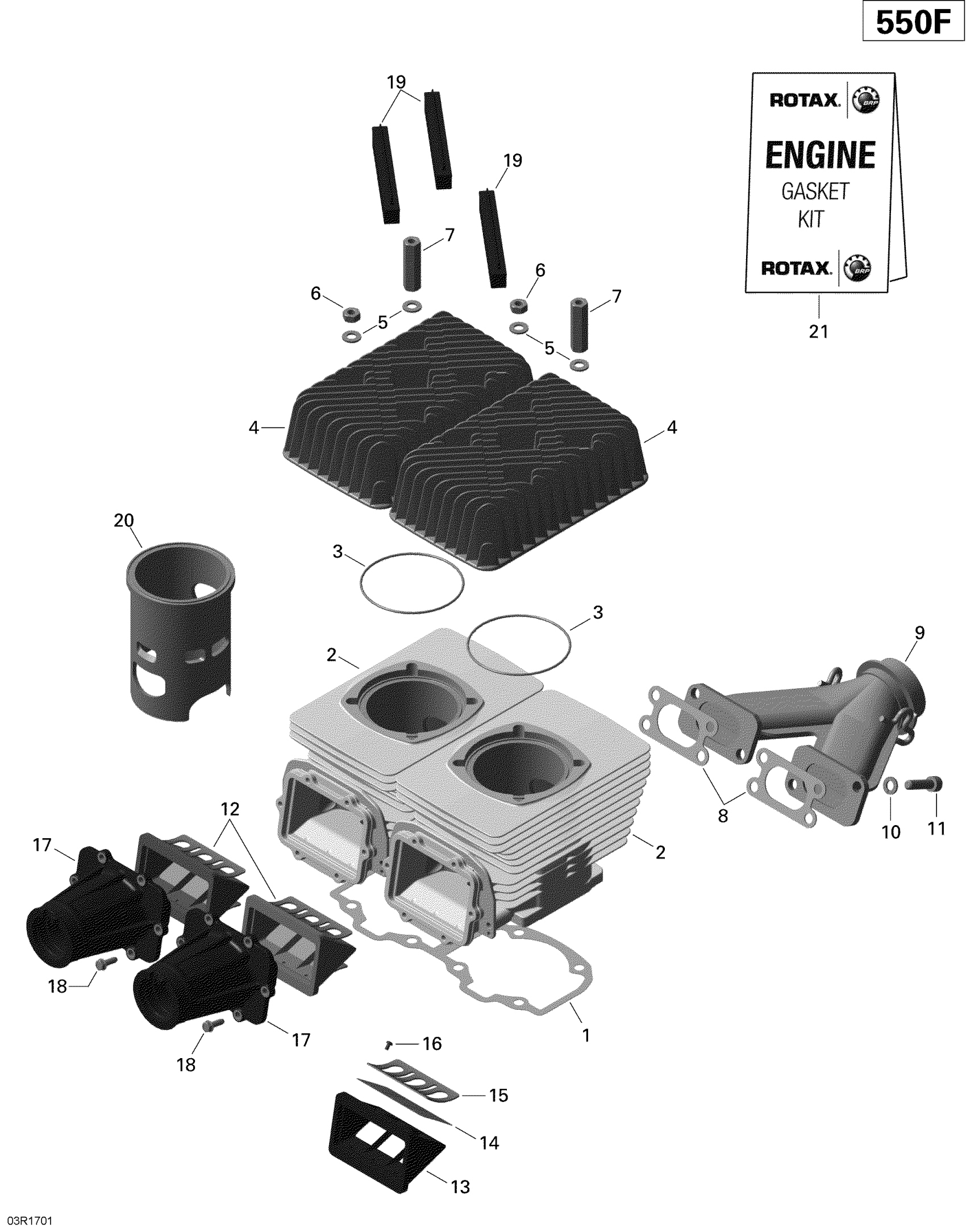

Ski-Doo EXPEDITION - 2-STROKE - SPORT, 2017 Cylinder, Exhaust Manifold and Reed Valve - 550F Diagram

#

Description

Price

1

Gasket 0.3

420950910

$14.90

1

Gasket 0.4

420950911

$17.13

1

Gasket 0.6

420950912

$17.13

2

Cylinder With Sleeve

420623142

$402.96

2

Cylinder With Sleeve

420623142

$402.96

3

O-Ring This part replaces 420850540.

293300026

$3.06

4

Head Cylinder

420923597

$217.88

5

Flat Washer 8.4 mm

420250315

$1.06

6

Hex. Nut M8

232081414

$0.69

7

Distance Nut M8 X 47

420842204

$14.10

8

Gasket 1.0 mm

420831849

$7.69

9

Exhaust Manifold

420673065

$309.67

10

Washer-Lock Din.128

420945832

$1.06

11

Socket Head Screw M8 X 30

205083044

$1.06

12

Reed Valve Ass'y

420924519

$49.22

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Reed Pedal

420924532

$42.51

15

Reed Pedal Stop

420924539

$11.18

16

Phillips Screw M3 X 5

420941215

$1.63

17

Carburetor Socket

420667600

$108.18

18

Taptite Screw M5 X 16

420941928

Unavailable

19

Noise Damper

420860091

$14.10

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Gasket Set, Engine

420889911

$86.54
