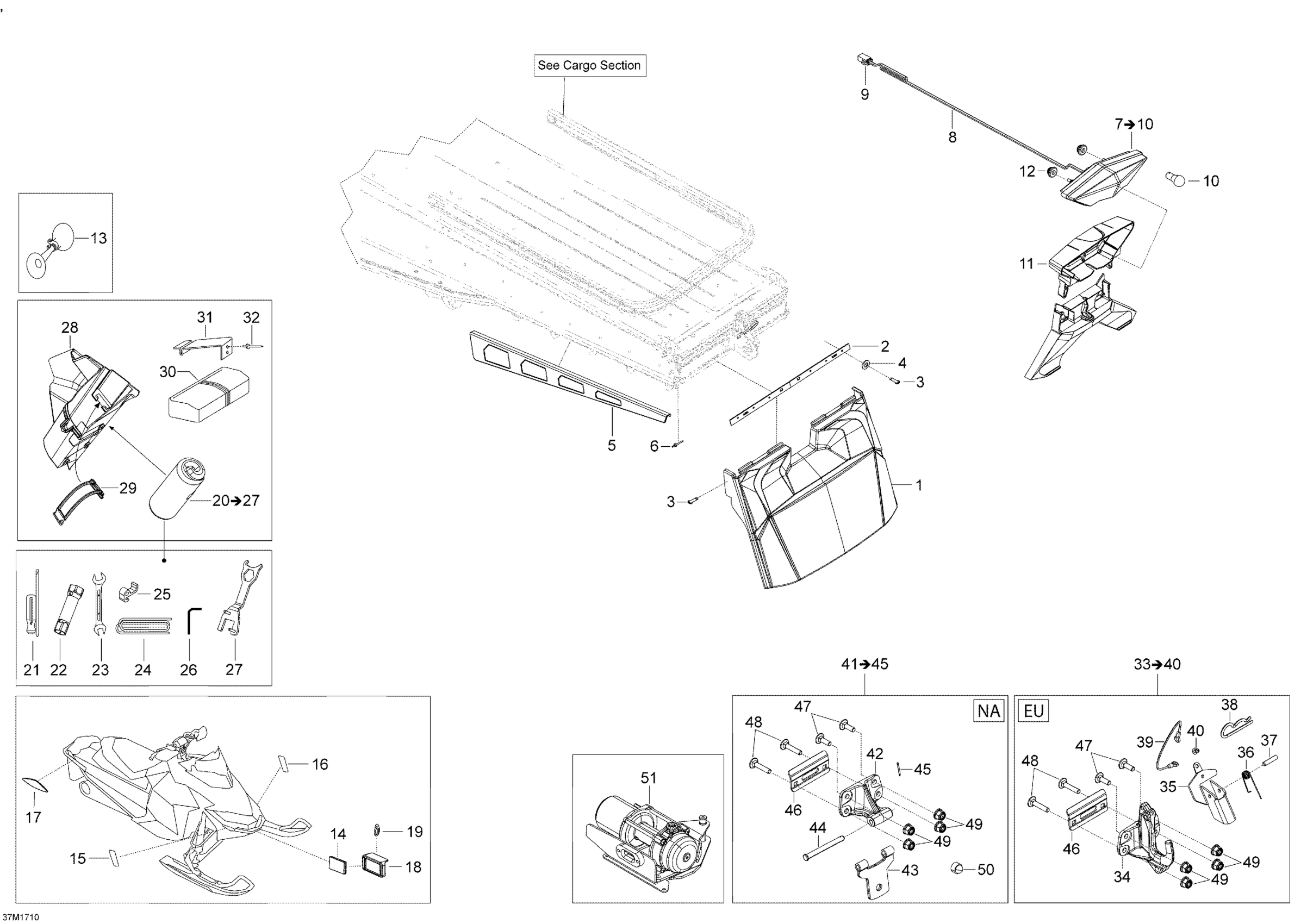

Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME, 2017 Utilities Diagram

#

Description
Price

1

Black, Snow Guard Long

520001410

$109.99

1

Snow Guard

520001406

$86.99

2

Plate

520001021

$33.55

3

Forming Screw M5 x 16

250000676

$0.96

4

Washer M5

250200025

$0.70

5

RH Protector

520000693

$52.96

5

LH Protector

520000694

$52.96

6

Rivet Hucklok

293150163

$2.73

7

Rear Light | Includes 200 to 200a

520000848

$93.25

8

Rear Wiring Harness

520000849

$49.22

9

Male Housing, 3 Circuits

515175494

$14.90

10

Bulb

520000758

$8.60

11

Rear Light Cover

511000764

$35.04

12

Stopper Rubber

705014429

$6.09

13

Horn

549011291

$34.30

14

Reflector (Bright)

21118

$26.09

15

Yellow, RH Reflector

520001600

$30.57

16

Yellow, LH Reflector

520001601

$30.57

17

Amber, Lateral Reflector

705002423

$12.88

17

Red, Lateral Reflector

705003412

$12.88

18

Deep Black, Reflector Support

520000871

$5.13

19

TIE RAP - Call your local BRP dealership

27120

Unavailable

20

Tools Kit | Includes 1400 to 1400b

520001593

$52.99

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Set Key, 16/21 mm

529000046

$14.49

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Was 412500100 Rope-Starter

219704403

$9.85

25

Starter Grip

529000060

$11.06

26

Spacing Tool

520001142

$10.99

27

Wrench

520001499

$13.99

28

Tool Kit Rack

520000894

$14.99

29

Latch

520000528

$6.40

30

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

31

Tool Kit Rack

5346728

Unavailable

32

Rivet

36108

$1.79

33

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.16

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Pin

41012

$5.06

38

Hair pin

41029

$4.15

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Avex Rivet

390909100

$0.28

41

Hitch Ass'y | Includes 3600 to 3600a

520001398

$69.37

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

45

Cotter Pin

41031

$6.07

46

Plate

520000727

$32.81

47

Carriage Bolt, M8 X 25 | XXC

207782544

$1.51

48

Bolt Carriage M8 X 40

207784044

$1.06

49

Hex. Flange Elastic Nut M8

233281414

$1.31

50

Cover | Model-T3

28056

$5.36

51

WINCH KIT - Call your local BRP dealership | Includes 30 to 30,009

619400069

Unavailable

52

Amber Reflector | Except Europe Model

705011222

$11.96

53

LH Reflector Mount | Package SE

520001744

Unavailable

53

RH Reflector Mount | Package SE

520001746

Unavailable

54

Socket Head Screw M8 X 20

205082044

$1.06

55

Hex. Flange Elastic Nut M8

233281414

$1.31

56

Cover | Model-T3

28056

$5.36

57

Elastic Flange Nut M5

233251494

$2.00
