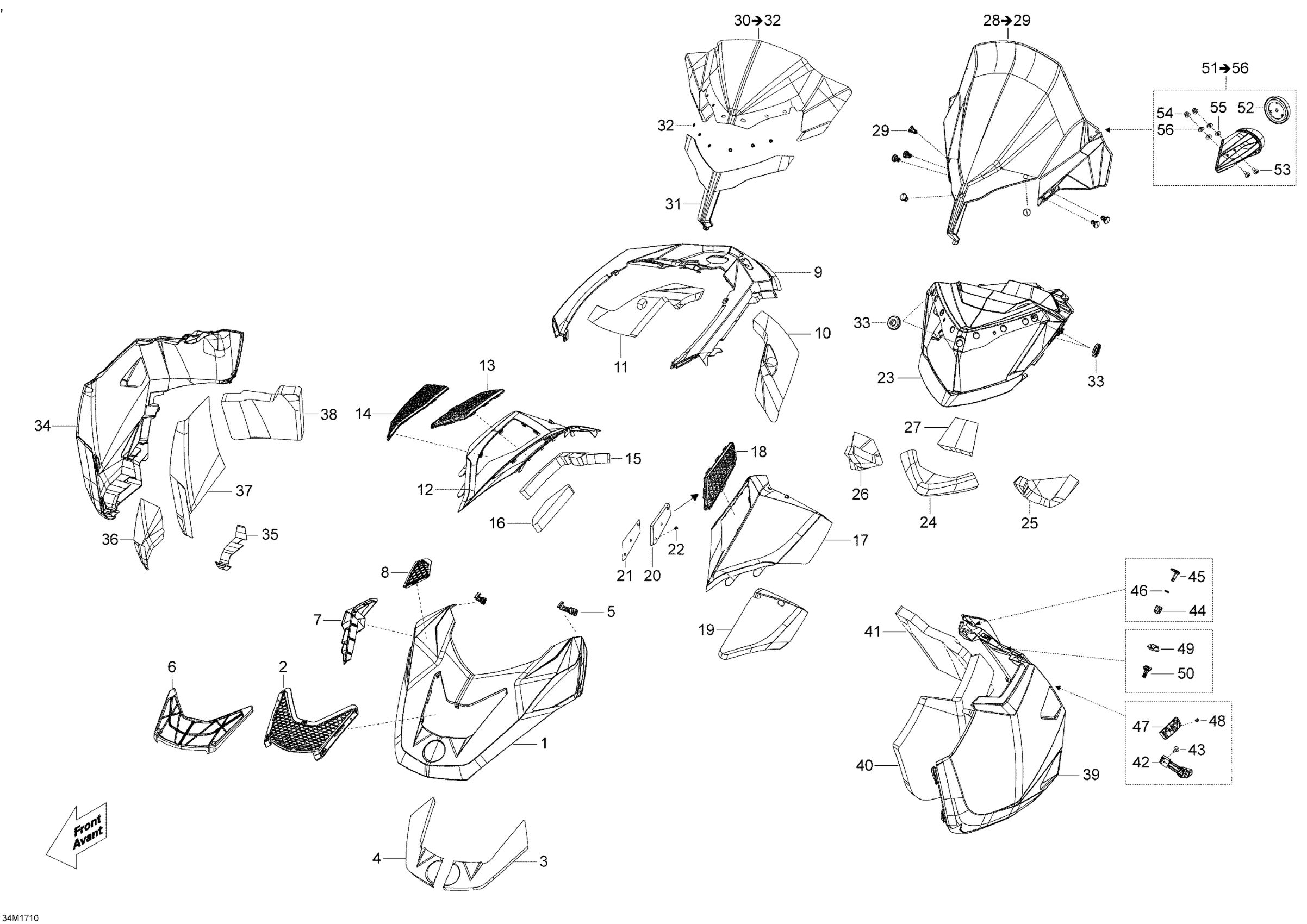

Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME, 2017 09- Hood Diagram

#

Description
Price

1

Black, Hood

517304812

$319.99

1

Gray Hood | Package SE

517305440

$269.99

1

Black Hood | Includes 1 to 2

517305818

$294.99

2

Hood Grille

517304843

$88.99

3

Insulator

517304330

$36.99

4

Insulator

517304214

$31.99

5

Latch Pannel

517304289

$11.49

6

Hood Grille With Mesh

517305553

$88.99

7

Scoop Grille

517306980

$37.99

7

Intake Grille

517306981

$28.99

8

Intake Grille

517304584

$28.99

9

Black, Console

517305220

$144.99

9

Black, Console

517304820

$179.99

10

Insulator

517305644

$38.99

11

Insulator

517304318

$48.99

12

Black, RH Side Access Panel | Includes 13 to 15

517304829

$264.99

12

Gray, RH Side Access Panel | Package SE

517305446

$209.99

13

RH Access Panel Grille

517304015

$36.99

14

RH Lower Acces Grille

517304016

$31.99

15

Insulator

517304311

$61.99

16

Insulator

517305987

$31.99

17

Black, LH Side Access Panel | Includes 18 to 19

517304839

$294.99

17

Gray, LH Side Access Panel | Package SE

517305450

$214.99

18

LH Access Panel Grille

517303893

$36.99

19

Insulator

517304313

$61.99

20

Insulator

517305311

$14.49

21

Grille plate

502007312

$31.99

22

Black, Dart

414644300

$0.98

23

Indicator Support

517304272

$179.99

24

Insulator

517304314

$62.99

25

Insulator

517304315

$31.99

26

Insulator

517304316

$31.99

27

Insulator

517304319

$31.99

28

Windshield Ass'y

860201000

$209.99

29

Button

517304744

$2.19

29

Button

517304744

$2.19

30

Windshield (355) Ass'y | Includes 29 to 31

517305098

$201.49

31

Windshield Support

517304712

$33.99

32

Push Nut

732610072

$2.19

33

Grommet

517303756

$4.09

33

Grommet

517303756

$4.09

34

Black, RH Side Panel

517306970

$249.99

35

Aluminium Foil

517304215

$19.99

36

Aluminium Foil

517304216

$22.49

37

RH Foam

517303890

$53.99

38

RH Rear Foam

517304310

$60.99

39

Black, LH Side Panel

517306973

$219.99

39

LH Side Panel

517306975

$309.99

40

LH Foam

517303891

$52.99

41

LH Rear Foam

517304309

$60.99

42

Latch-Panel

517304572

$11.99

43

Pop Rivet 3/16”

293150108

$1.19

44

Handle Fastener Quarter-Turn

517304297

$16.99

45

Quarter-Turn Handle

517304296

$16.99

46

Locking Plate

517304538

$4.59

47

Side Panel Support | Except Package SWT

517304497

$19.99

48

Rivet | Except Package SWT

293150211

$2.19

49

End Piece Latch

517304075

$4.69

50

Latch-Panel

517306057

$24.49

51

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$72.99

52

Not Available As Spare Part - Friction Washer

Unavailable

53

Torx Truss Screw M6 X 16

250000721

$1.69

54

Domed Nut M6

232361493

$2.11

55

Rubber Washer 5 mm

250200024

$2.19

56

Washer

20117

$6.39
