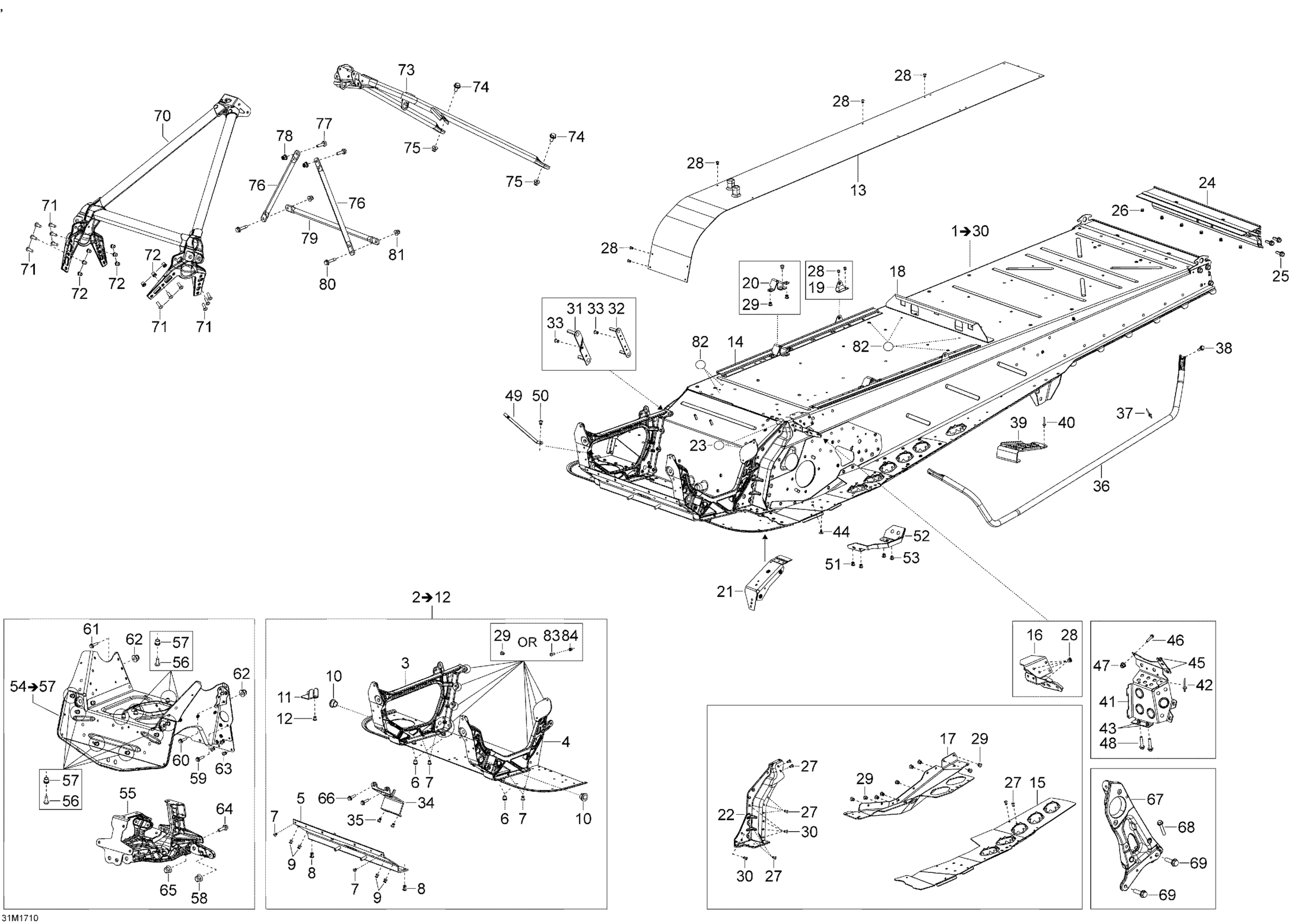

Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME, 2017 09- Frame Diagram

#

Description
Price

1

FRAME XU E-TEC SC-5 BLACK - Call your local BRP dealership | Model LE, SE

518329390

Unavailable

1

Black Frame | Model Extreme

518329394

Unavailable

2

MODULE E ETEC - Call your local BRP dealership | Includes 2 To 12

518328813

$869.99

3

RH Member

518326795

$284.99

4

LH Member

518326796

$229.99

5

Front Member

518326198

$64.99

6

Clinch Nut Hexsert M8

605636002

$7.51

7

Avex Rivet

390909100

$0.30

8

Hemlock Rivet 6.5 mm

293150120

$7.41

9

Hemlock Rivet, 6.5 mm

293150119

$4.29

10

Leg Bushing

505072690

$12.49

11

Muffler Support

518328194

$19.99

12

Rivet Hucklok

293150163

$2.99

13

Tunnel Radiator | Includes 10p to 10q

509000976

$719.99

14

Fastening rail

518326107

$18.49

15

LH Footrest

518328821

$88.99

15

LH Footrest

518328332

$88.99

15

RH Footrest

518328822

$88.99

15

RH Footrest

518328333

$88.99

16

Fastening Bracket

605355235

$56.99

17

LH Drive Axle Cover

518328016

$209.99

17

RH Drive Axle Cover

518328017

$209.99

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$78.99

19

Seat Box Bracket

518329164

$29.99

20

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

21

Clinch Nut plate

518326430

$44.49

22

LH Frame Corner

518325524

$56.99

22

RH Frame Corner

518328024

$52.99

23

Adhesive Patch

518325560

$4.69

24

Rear Profile

518328748

$234.99

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

26

Hemlock Rivet, 6.4 mm

293150174

$7.86

27

Avex Rivet

390909100

$0.30

28

Avex Rivet

390909200

$0.30

29

Hemlock Rivet, 6.5 mm

293150119

$4.29

30

Rivet

293150183

$2.11

31

Gearbox Front Plate

518326123

$17.49

32

Gearbox Rear Plate

518326124

$17.99

33

Pop Rivet 3/16"

390402200

$0.35

34

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

35

Hemlock Rivet, 6.5 mm

293150119

$4.29

36

LH Footboard Support Tube

518326963

$139.99

36

RH Footboard Support Tube

518326964

$139.99

37

Avex Rivet

390909100

$0.30

38

Hex. Flange Screw M6 x 20

207662056

$1.01

39

Black Rear Footrest

520001208

$19.99

40

Rivet 3/16"

293150102

$0.70

41

Toe hold L.H. | Package SE

518327375

$42.99

41

Black, LH Toe Hook | Package LE

518327374

$39.99

41

Black RH Toe Hook

518327376

$42.99

42

Avex Rivet

390909200

$0.30

43

Clinch Nut M6 Hexsert

605636003

$4.23

44

Black, Dart

414644300

$0.98

45

Clinch Nut M6 Hexsert

605636003

$4.23

46

Hex. Flange Screw M6 x 20

207662056

$1.01

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

48

Torx Head Screw M6 X 16

250000717

$2.11

49

Spring Bracket

514054846

$4.69

50

Avex Rivet

390909200

$0.30

51

Avex Rivet

390909200

$0.30

51

Avex Rivet

390909200

$0.30

52

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

53

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

54

Cross Member | Package LE

518328392

$659.99

54

Cross Member | Package SE

518328396

$619.99

55

Front Suspension Support

518327487

$289.99

56

Hex. Flange Screw M6 X 20

207662044

$2.00

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

58

Hex. Flange Elastic Nut M8

233281414

$1.47

59

Hexagonal Head Screw

210262050

$2.11

60

Hex. Flange Screw M6 X 25

207662544

$0.64

61

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

62

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

63

Rivet Hucklok

293150163

$2.99

64

Hex. Flange Screw M6 X 20

207662044

$2.00

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

66

Hex. Flange Screw M6 X 16

207661644

$0.74

67

Pulley Support

518328434

$144.99

68

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

69

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

70

Front Member

518326970

$299.99

71

Hex. Flange Screw M6 X 20

207662044

$2.00

72

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

73

Upper Support Tube

518329105

$204.99

74

Hex. Screw M8 X 20

207182044

$0.74

75

Hex. Elastic Stop Nut M8

232581414

$0.56

76

Upper Lateral Column Support

518325114

$22.49

77

Hex. Flange Screw M6 x 20

207662056

$1.01

78

Elastic Flange Nut M6 X 1.0

233261416

$2.11

79

Center Column Support

518325115

$22.49

80

Hex. Flange Screw M6 X 25

207662556

$4.44

81

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

82

Adhesive Patch

518325560

$4.69

83

Hex. Flange Screw M6 X 20

207662044

$2.00

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
