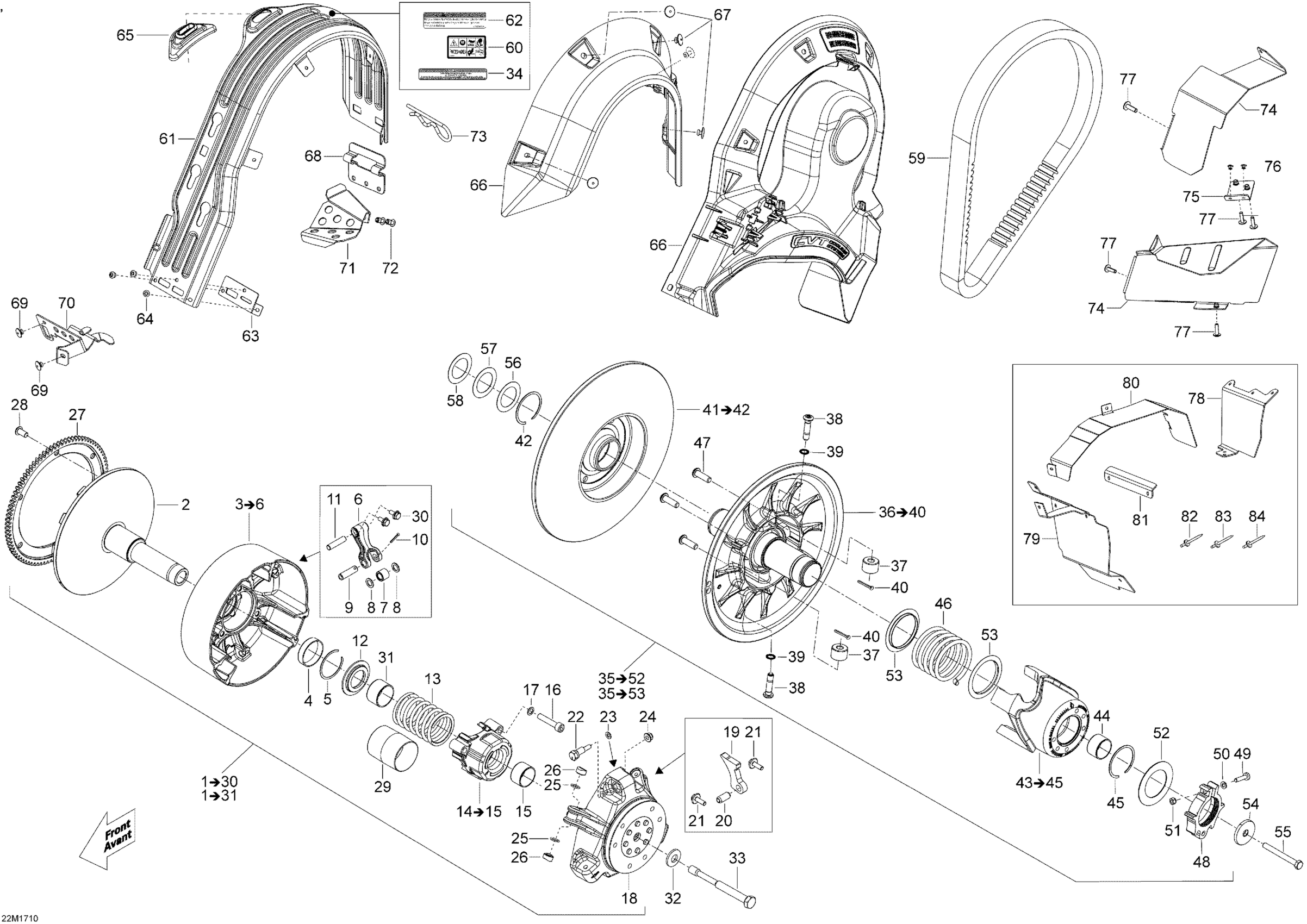

Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME, 2017 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$214.90

2

Fixed Flange Ass'y

417223232

$358.18

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$188.03

3

Sliding Flange Ass'y | Includes 3 to 5

417223444

$313.40

4

Bushing

417222758

$20.12

4

Bushing

417223086

$32.81

5

Circlip

293370037

$2.93

5

Circlip

293370071

$3.75

6

Lever | Includes 10f to 10g

417222671

$46.24

7

Roller

417222947

$19.37

8

Stopper Washer

417004302

$15.64

9

Pin

417222594

$13.69

10

Cotter Pin

250400060

$1.84

11

Lever Axle

417223164

$4.12

12

Spring Seat

417222312

$8.03

13

Tra Spring

414993000

$52.96

13

SPRING YELLOW/GREEN - Call your local BRP dealership

414742100

Unavailable

13

Spring, Violet/blue

415034900

$41.01

14

Spring Cover Ass'y | Includes 10r to 10t

417007500

$44.75

14

Spring Cover Ass'y | Includes 14 to 15

417222759

$49.22

15

Bushing

417009204

$15.64

16

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

17

Lock Washer 8 mm

250200009

$2.00

18

Governor Cup Ass'y

417223669

$435.04

18

Governor Cup Ass'y

417223666

$443.25

19

Ramp 600

417222444

$32.81

19

Ramp 413 | Europe

417222508

$29.82

19

KIT CVT UPGRADE EXPEDITION XTREME - Call your local BRP dealership | Model 800R E-TEC, North America

861805513

Unavailable

20

Spring Pin M10 X 22

250400050

$2.73

21

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.75

22

Calibration Screw

417223501

$11.73

23

Washer

417005600

$3.75

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

25

O-Ring

732401030

$0.93

26

Slider Shoe

417223271

$8.49

27

Ring Gear_Starter This part replaces 417223738.

417225070

$216.39

27

Ring Gear_Starter This part replaces 417223739.

417225071

$216.39

28

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.72

29

Guard

417009205

$16.39

30

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.75

30

Serrated Hex. Flange Bolt M6

250000416

$4.00

31

Bushing

417223471

$5.75

32

Conical Spring Washer M14

250200144

$4.16

33

Drive Pulley Bolt

417120000

$61.91

33

TRA 7 Bolt (M14 X 153.5 mm)

417300409

$42.51

34

Decal English

516005503

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Fixed Flange Ass'y

417127466

$405.94

36

Fixed Flange Ass'y

417127433

$563.40

37

Roller

417127189

$43.25

38

Pivot Stud

417127294

$13.18

39

Lock Washer 8 mm

250200009

$2.00

40

Spring Pin M3 X 30

250400063

$2.00

41

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$143.25

42

Circlip

293370049

$4.57

43

Cam Ass'y

417127411

$160.42

44

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

45

Circlip

293370049

$4.57

46

Spring, White

417127243

$41.01

46

Black, Return Spring

417127039

$44.00

47

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

48

Calibration Ass'y

415129604

$22.49

49

Socket Screw M5 X 25

205052544

$1.54

50

Flat Washer M5

234051410

$0.51

51

Elastic Stop Nut M5

232551414

$0.82

52

Washer

417127155

$7.79

53

Swivel Abutment

417127116

$7.82

54

Strength Washer

517302322

$10.76

55

Hex. Cap Screw M8 X 75

207287544

$4.87

56

Spacer

417300252

$5.01

57

Spacer

417300265

$2.06

58

Shim

504112000

$5.87

59

Drive Belt

417300551

$167.13

59

Drive Belt

417300531

$211.91

60

Warning Decal | Europe

516003919

$7.42

61

Belt Guard

417300357

$83.55

62

Security Label, Belt Guard

516006900

Unavailable

63

Reinforcement

417300380

$5.01

64

Avex Rivet

390909200

$0.28

65

Guide

417300381

$8.73

66

Side Protector

417300356

$12.85

66

CVT Air Duct

417300441

$26.09

67

Pop Rivet 3/16"

293150103

$0.52

68

Belt Guard Bracket | Except Package SWT

417300363

$11.84

69

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

70

Belt Guard Bracket

417300364

$27.58

71

Brake Hose Cover | Except Package SWT

518325626

$27.58

72

Rivet Hucklok

293150163

$2.73

73

Hair Pin

114045200

$10.37

74

Air Duct | North America

417300468

$45.49

74

Air Duct | Includes 550 to 550a

417300461

$72.36

75

Air Duct Bracket

417300497

Unavailable

76

Rivet 3/16"

293150102

$0.69

77

Torx Screw M6 X 20

250000722

$1.54

77

Torx Screw M6 X 20

250000722

$1.54

78

Air Duct Extreme CVT | North America

417300518

Unavailable

79

AIR DUCT EXTREME CVT - Call your local BRP dealership | Model North America

417300519

Unavailable

80

Air Duct Extreme CVT | North America

417300520

$10.13

81

Air Duct Extreme CVT | North America

417300521

Unavailable

82

Avex Rivet

390909100

$0.28

83

Avex Rivet

390909200

$0.28

84

Pop Rivet 3/16"

293150103

$0.52
