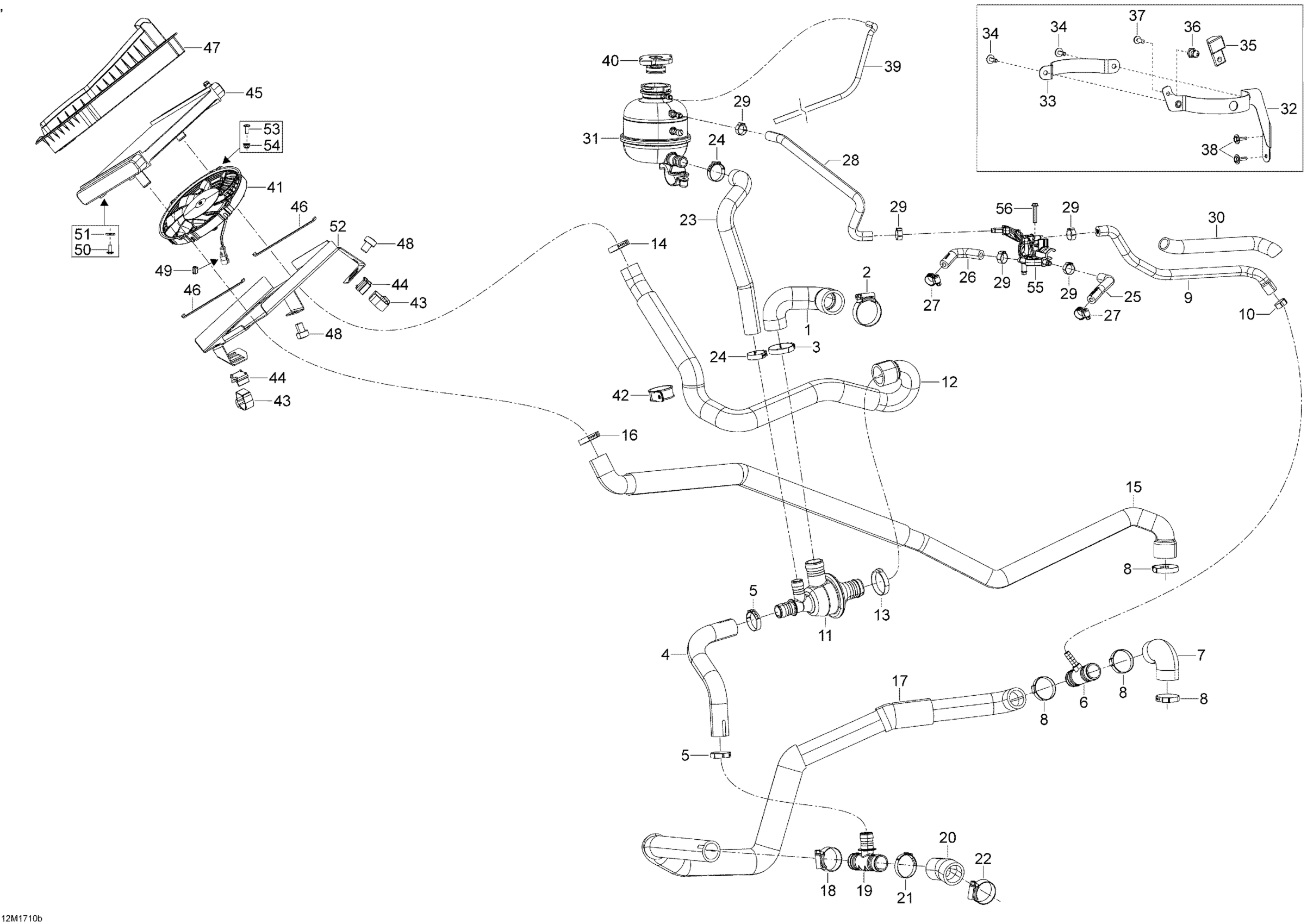

Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME, 2017 Cooling System - 800R E-TEC Diagram

#

Description
Price

1

Engine Outlet Hose

509000595

$14.54

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

Oetiker Gear Clamp

509000181

$3.61

4

Bypass Hose

509000523

$59.97

5

Crimp Clamp

293650099

$3.55

6

T-Fitting

509000510

$11.52

7

Radiator Hose This part replaces 509000671.

509001066

$18.43

8

Oetiker Gear Clamp, 36.5-706R

509000529

$8.20

9

Bleeder Hose

509000906

$23.05

10

Crimp Clamp, 15.3-706R

293650047

$2.64

11

Thermostat Housing

509000499

$39.97

12

Thermostat Outlet Hose

509000983

$97.66

13

Oetiker Gear Clamp

509000181

$3.61

14

Crimp Clamp

293650099

$3.55

15

Hose

509000994

$59.97

16

Crimp Clamp

293650099

$3.55

17

Radiator Hose

509000992

$44.58

18

Aba Gear Clamp, 26-38 MM

509000443

$5.68

19

T-Fitting

509000372

$7.87

20

Engine Inlet Hose

509000997

$18.43

21

Oetiker Gear Clamp

509000181

$3.61

22

Aba Gear Clamp, 26-38 MM

509000443

$5.68

23

Filling Hose

509000736

$35.35

24

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

25

Bleeder Hose

509000818

$10.52

26

Bleeder Hose

509000819

$10.52

27

Tridon Gear Clamp

293650170

$1.74

28

Hose

509000998

$10.52

29

Oetiker Clamp

293650046

$2.33

30

Tubing 16 Mm 1000Mm Long

219704408

$6.23

31

Coolant Tank

509000421

$86.89

32

Reservoir support

509000852

$66.12

33

Support

509000608

$29.97

34

Forming Screw M5 x 16

250000676

$0.83

35

Support

509000609

$23.05

36

Knob

517303439

$3.73

37

Torx Screw K50 X 16

250000720

$1.39

38

Screw M4 X 16

250000725

$2.87

39

Hose 6 Mm 15000Mm Long

219704360

$104.62

40

Radiator Pressure Cap

509000180

$11.69

41

Cooling Fan

509000838

$213.05

42

Clamp With Rubber

27011

Unavailable

43

Velcro Strip

508000820

$7.35

44

Bumper

508000822

$7.31

45

Radiator

509000980

$214.58

46

Rubber Strip

509000986

$4.28

47

Deflector

509000985

$27.66

48

Rubber Bumper

570044700

$10.55

49

Clip

710000992

$4.00

50

Torx Head Screw M6 X 16

250000717

$1.74

51

Flat Washer

224061201

$1.11

52

Support

509000984

$91.51

53

Torx Head Screw M6 X 16

250000717

$1.74

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

55

Bleed Collector

509000803

$24.58

56

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61
