Description

Price

1

FAIRING

89L-77231-00-00

Unavailable

2

SCREW, WITH WASHER(35R)

90159-06093-00

$8.49

3

SRAY, FAIRING

88R-77241-00-00

Unavailable

4

BRACKET, WINDSHIELD (L.H)

88R-77221-00-00

Unavailable

5

SCREW, BINDING

98907-06008-00

$8.49

6

BOLT, HEXAGON

97017-06030-00

$3.61

7

WASHER, SPRING

92907-06100-00

$4.25

8

WINDSHIELD COMP.

88R-77210-00-00

Unavailable

9

SCREW, ROUND HEAD(88R)

90150-05028-00

$4.29

10

WASHER, PLATE 8067717800

90201-05029-00

$8.49

11

NUT, HEXAGON

95317-05600-00

$2.34

12

BRACKET, METER

82M-83519-01-00

Unavailable

13

SCREW, BINDING

98907-06008-00

$8.49

14

COVER, HEADLIGHT

88R-77251-00-00

Unavailable

15

SCREW, BINDING

98907-05016-00

$8.49

16

emblem yamaha

3WF-2153E-41-00

Unavailable

17

INDICATOR, COCK

86M-24153-00-00

Unavailable

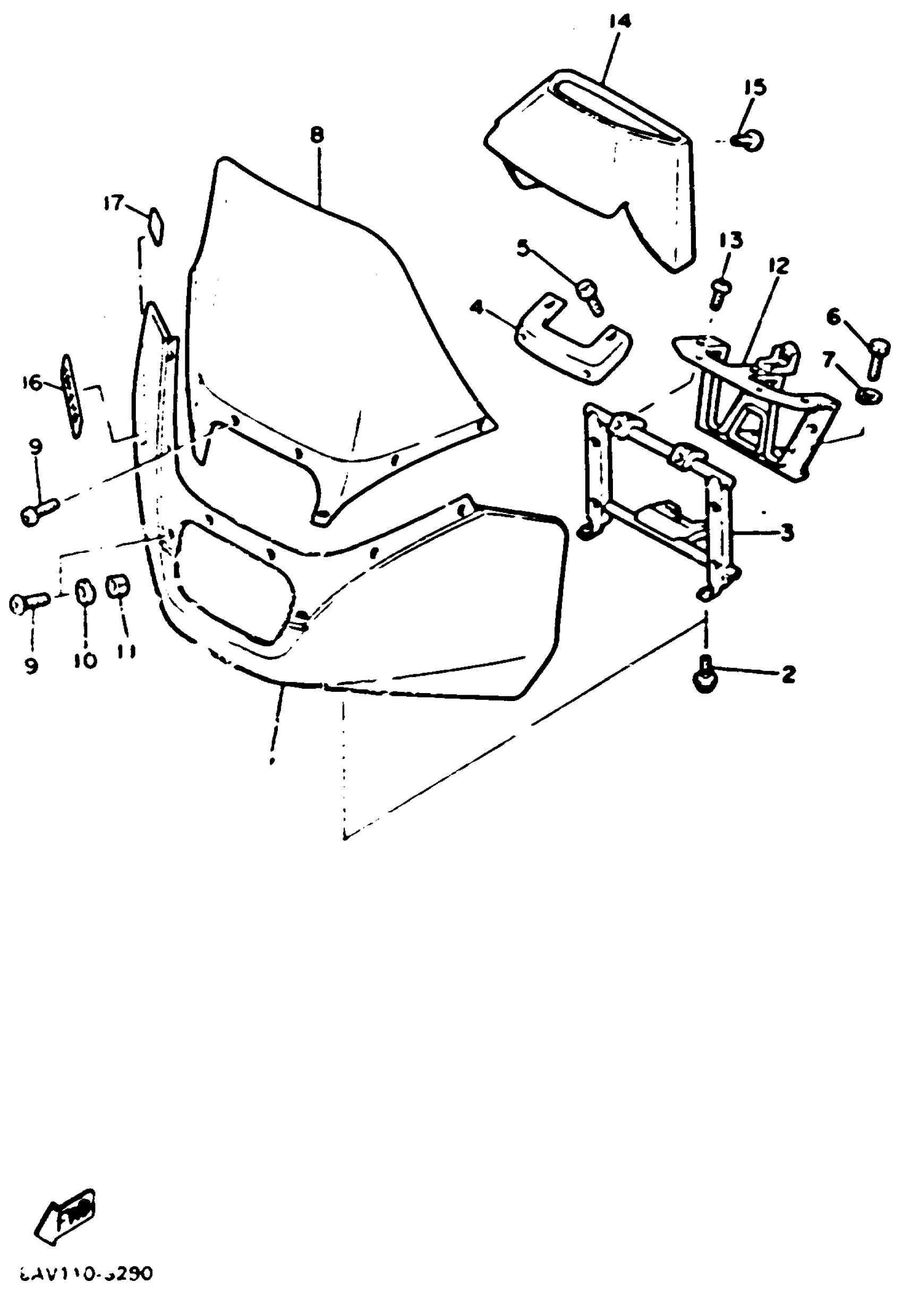

Yamaha EX570T (EXCITER II) 1993 WINDSHIELD Diagram

FAIRING

SCREW, WITH WASHER(35R)

SRAY, FAIRING

BRACKET, WINDSHIELD (L.H)

SCREW, BINDING

BOLT, HEXAGON

WASHER, SPRING

WINDSHIELD COMP.

SCREW, ROUND HEAD(88R)

WASHER, PLATE 8067717800

NUT, HEXAGON

BRACKET, METER

SCREW, BINDING

COVER, HEADLIGHT

SCREW, BINDING

emblem yamaha

INDICATOR, COCK
