TRACK SUSPENSION 2

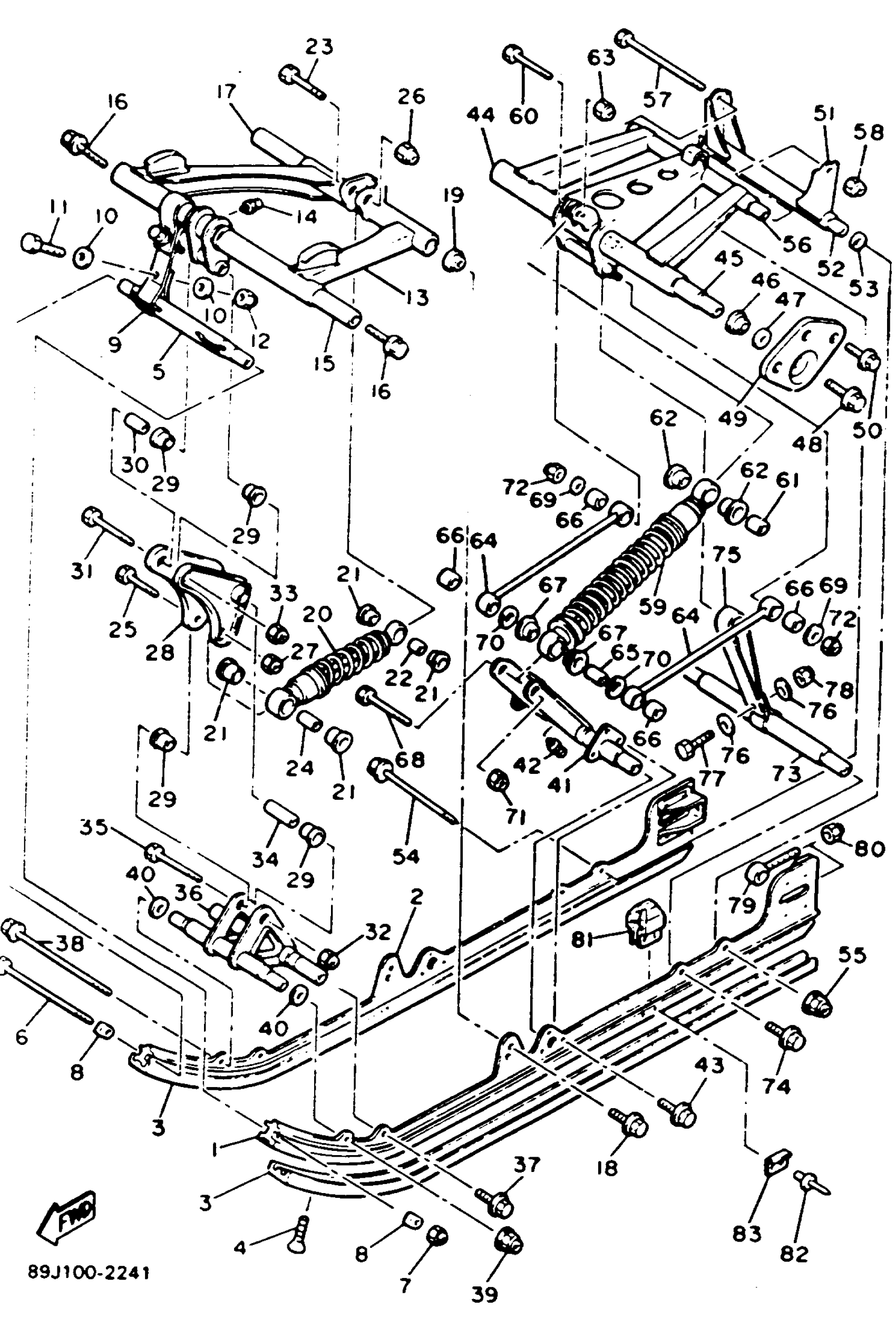

Yamaha EX570T (EXCITER II) 1993 TRACK SUSPENSION 2 Diagram
#
1
FRAME,SLIDING 1
8AV-W4741-00-00
Unavailable
2
FRAME,SLIDING 1
8AV-W4741-00-00
Unavailable
3
RUNNER, SLIDING 1 (8AV-47421-00-00)
8AV-47421-10-XX
Unavailable
4
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
5
BRACKET 1
8U7-47415-00-00
Unavailable
6
BOLT,HEXAGON
97027-08255-00
Unavailable
7
NUT, NYLON
95717-08300-00
$2.70
8
WASHER
8U7-47359-00-00
Unavailable
9
STOPPER 1
8U7-47495-00-00
Unavailable
10
WASHER, PLATE
90201-06747-00
$8.49
11
BOLT, HEXAGON
97017-06025-00
$4.24
12
NUT, NYLON
95707-06300-00
$3.50
13
ARM, PIVOT 1
8U7-47331-00-00
Unavailable
14
NIPPLE, GREASE
93700-06M03-00
Unavailable
15
SHAFT 1
885-47465-03-00
Unavailable
16
BOLT (8V0)
90109-10771-00
Unavailable
17
SHAFT 3
82M-47485-02-00
Unavailable
18
BOLT, FLANGE
95817-10030-00
Unavailable
19
COLLAR (8U7)
90387-105G6-00
Unavailable
20
SHOCK ABSORBER 2
8AV-47481-00-00
Unavailable
21
COLLAR (8U7)
90387-123G4-00
Unavailable
22
COLLAR
90387-08775-00
Unavailable
23
. BOLT
90101-08557-00
Unavailable
24
COLLAR
90387-08478-00
Unavailable
25
BOLT
97021-08065-00
Unavailable
26
NUT, NYLON
95717-08300-00
$2.70
27
NUT, U
95617-08100-00
Unavailable
28
BRACKET 6
8U7-47464-00-00
Unavailable
29
COLLAR
90387-123G5-00
Unavailable
30
COLLAR
90387-08478-00
Unavailable
31
BOLT
97021-08065-00
Unavailable
32
NUT, NYLON
95717-08300-00
$2.70
33
NUT, U
95617-08100-00
Unavailable
34
COLLAR
90387-084G0-00
Unavailable
35
BOLT, HEXAGON
97027-08100-00
Unavailable
36
BRACKET 4
8U7-47418-00-00
Unavailable
37
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
38
BOLT, WASHER BASED(51X)
90105-08346-00
Unavailable
39
NUT, SELF-LOCKING
90185-08169-00
Unavailable
40
.. WASHER, PLATE
92990-08600-00
Unavailable
41
BRACKET 2
8AX-47416-01-00
Unavailable
42
NIPPLE, GREASE
93700-06M03-00
Unavailable
43
BOLT, FLANGE
95817-06020-00
Unavailable
44
ARM, PIVOT 2
8AV-47332-01-00
Unavailable
45
SHAFT 2
88R-47475-02-00
Unavailable
46
COLLAR
88R-47319-00-00
Unavailable
47
WASHER, PLATE (856)
90201-10321-00
Unavailable
48
BOLT, FLANGE
95814-10040-00
Unavailable
49
BRACKET,REAR 2
8AB-47425-00-00
Unavailable
50
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
51
BRACKET 3
8U7-47417-00-00
Unavailable
52
COLLAR
90387-08632-00
Unavailable
53
WASHER (1T1)
90201-08649-00
Unavailable
54
BOLT, WASHER BASED(51X)
90105-08346-00
Unavailable
55
NUT, SELF-LOCKING
90185-08169-00
Unavailable
56
COLLAR (8U7)
90387-083G6-00
Unavailable
57
BOLT (83L)
97027-08220-00
Unavailable
58
NUT, NYLON
95717-08300-00
$2.70
59
SHOCK ABSORBER
89J-47480-00-00
Unavailable
59
SHOCK ABSORBER
8AV-47480-00-00
Unavailable
60
BOLT(88R)
90101-10738-00
Unavailable
61
COLLAR (8U7)
90387-105G5-00
Unavailable
62
COLLAR (8U7)
90387-145G7-00
Unavailable
63
NUT, U
95617-10100-00
Unavailable
64
ROD, RELAY
8U7-47494-02-00
Unavailable
65
COLLAR
90387-1007P-00
Unavailable
66
COLLAR (8U7)
90387-143G7-00
Unavailable
67
COLLAR (8U7)
90387-144G2-00
Unavailable
68
BOLT
90101-10747-00
Unavailable
69
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
70
WASHER PLATE 148272190000
90201-14215-00
Unavailable
71
NUT, NYLON
95707-10300-00
Unavailable
72
NUT, NYLON
95717-08300-00
$2.70
73
SHAFT 4
8V0-47486-00-00
Unavailable
74
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
75
STOPPER 2
8U7-47496-00-00
Unavailable
76
WASHER, PLATE
90201-06747-00
$8.49
77
BOLT(3RV)
97014-06035-00
Unavailable
78
NUT, NYLON
95707-06300-00
$3.50
79
COLLAR 3
8K2-47479-01-00
Unavailable
80
NUT, NYLON
95707-10300-00
Unavailable
81
DAMPER 1
89A-47456-00-00
Unavailable
82
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
83
PLATE, DAMPER
8K2-47458-01-00
Unavailable
