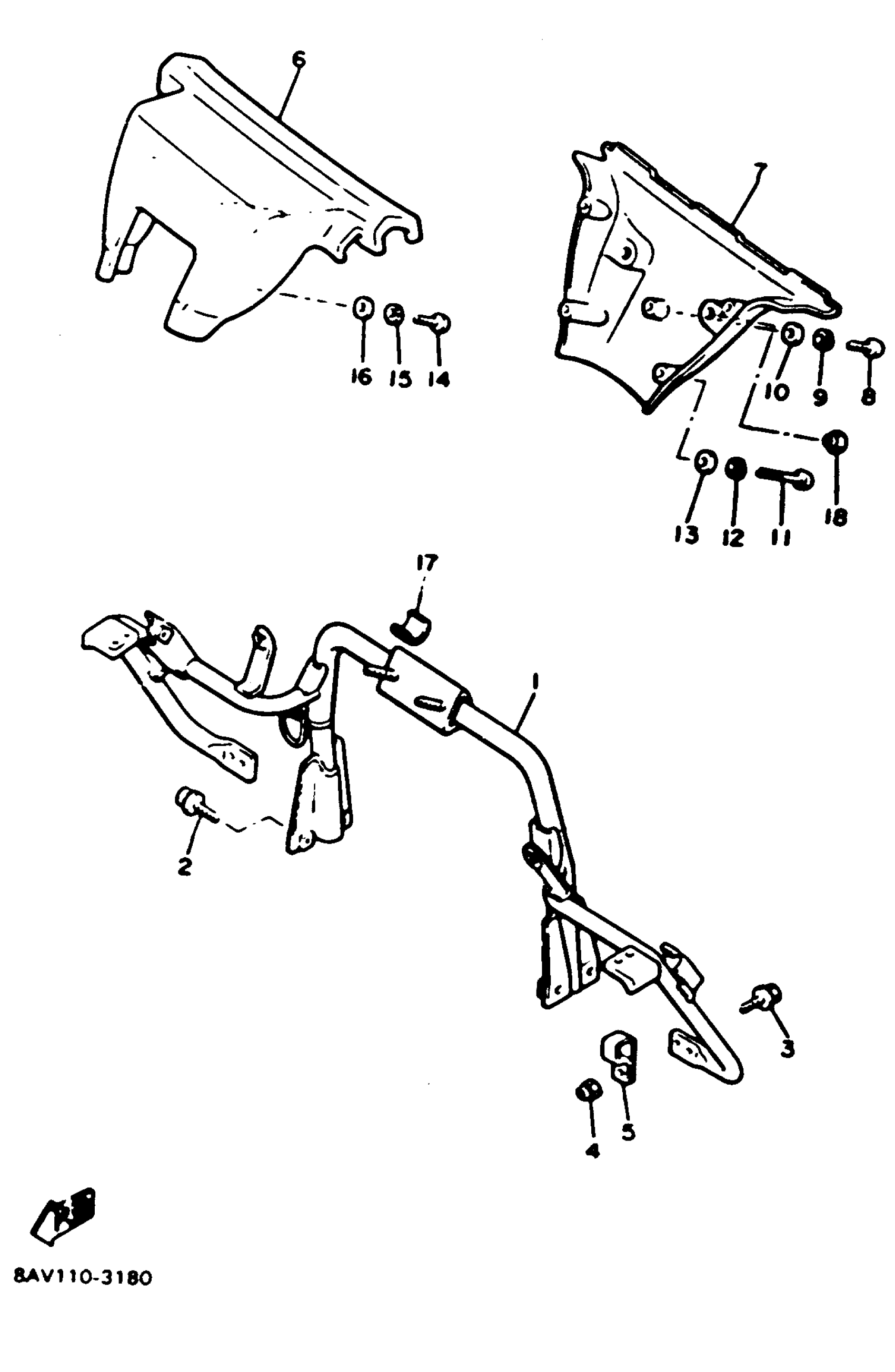

Yamaha EX570T (EXCITER II) 1993 STEERING GATE Diagram

#

Description
Price

1

STEERING GATE COMP.

88R-23870-00-00

Unavailable

2

BOLT, FLANGE

95817-08012-00

$5.49

3

BOLT, FLANGE

95817-06030-00

$4.29

4

NUT, NYLON

95707-06300-00

$3.50

5

CLAMP

90465-06013-00

Unavailable

6

PAD, STEERING

82M-23815-01-00

Unavailable

7

PAD,STEERING

80L-23817-02-00

Unavailable

8

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

9

WASHER(3SX)

92907-05100-00

$8.49

10

WASHER, PLAIN LARGE

92907-05200-00

$4.46

11

SCREW, PAN HEAD

98517-05030-00

$10.49

12

WASHER(3SX)

92907-05100-00

$8.49

13

WASHER(1RW)

92907-05600-00

$3.78

14

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

SPACER

8V0-23858-00-00

Unavailable

18

GROMMET

90480-17165-00

Unavailable
