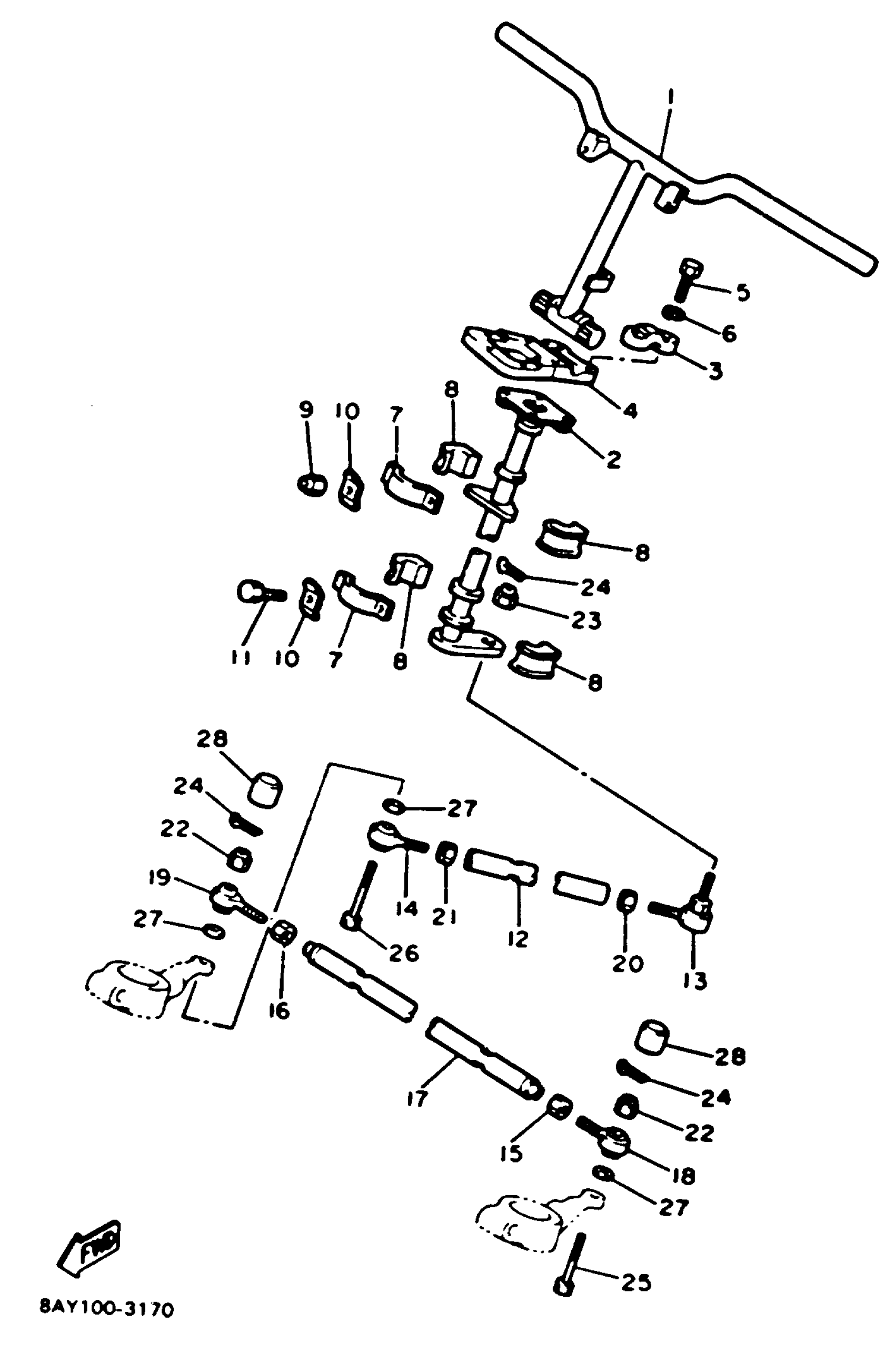

Yamaha EX570T (EXCITER II) 1993 STEERING Diagram
#
Description
Price
1
COLUMN, STEERING
88R-23811-00-00
Unavailable
2
COLUMN, STEERING 2
8AY-23813-00-00
Unavailable
4
HOLDER, HANDLE UPPER
8V0-23814-01-00
Unavailable
7
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
8
BEARING, STEERING
8F3-23812-00-00
Unavailable
12
ROD, STEERING RELAY
82M-23821-00-00
Unavailable
15
NUT (682)
95380-10700-00
Unavailable
16
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
17
ROD,TIE
89X-23831-00-00
Unavailable
18
JOINT, UNIVERSAL 2
87S-23845-01-00
Unavailable
20
NUT (682)
95380-10700-00
Unavailable
21
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
22
NUT, NYLON
95707-10300-00
Unavailable
23
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
24
PIN, COTTER
91490-25020-00
Unavailable
25
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
26
BOLT, HEXAGON SOCKET HEAD(85L)
90110-10173-00
Unavailable
27
SPACER
82M-23858-00-00
Unavailable
28
WASHER PLATE (3L6)
90201-08759-00
Unavailable
