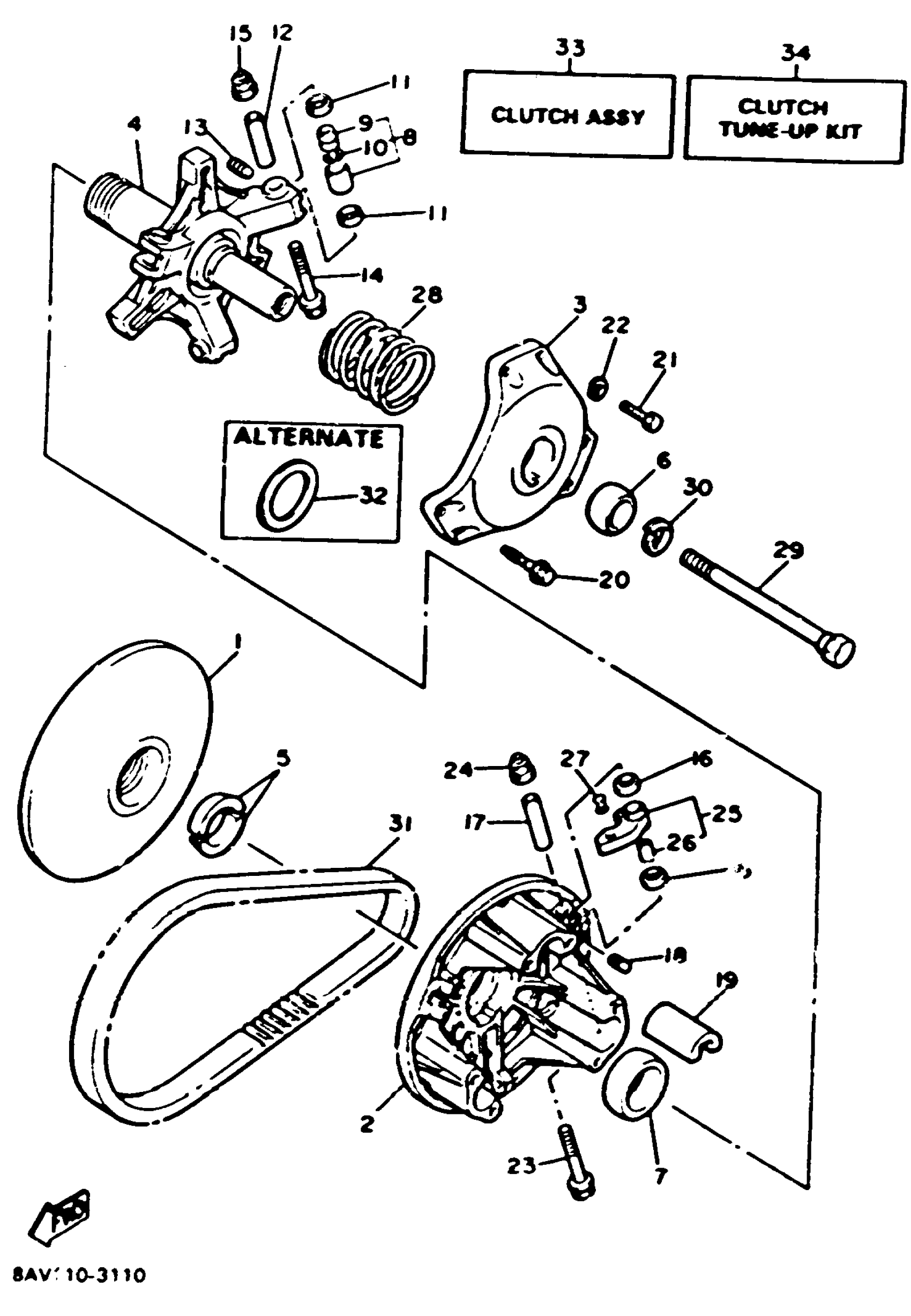

Yamaha EX570T (EXCITER II) 1993 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

88R-17611-02-00

$113.99

2

SHEAVE, PRIMARY SLIDING

88R-17621-01-00

Unavailable

3

CAP

88R-17631-01-00

Unavailable

4

SPIDER COMPLETE

8BW-17640-11-00

Unavailable

5

STOPPER

8V0-17639-00-00

$14.99

6

BUSH(83R)

90389-28032-00

$61.99

8

ROLLER, COMP

88R-17624-01-00

$47.99

9

BUSH(88K)

90386-08183-00

Unavailable

10

CIRCLIP(88K)

93450-13133-00

Unavailable

11

WASHER, PLATE(88R)

90202-08204-00

$9.49

13

BOLT, SET

90113-05041-00

$8.49

17

COLLAR

90387-0514T-00

$16.99

19

SLIDER

88R-17653-01-00

$36.99

20

BOLT(89J)

90109-066F4-00

$3.23

21

BOLT, HEXAGON

97017-06030-00

$3.61

22

WASHER, SPRING

92995-06100-00

Unavailable

23

BOLT, WASHER BASED(88R)

90105-05644-00

Unavailable

24

NUT, S/L FLANGE

95607-05200-00

Unavailable

25

WEIGHT COMP

88R-17605-00-00

Unavailable

26

. BUSH, SOLID

90380-08244-00

Unavailable

27

RIVET, COUNTER SUNK (8G8)

90261-06017-00

Unavailable

27

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

Unavailable

28

SPRING, COMPRESSION(88S)

90501-524G4-00

Unavailable

28

SPRING, COMPRESSION

90501-524G5-00

Unavailable

28

SPRING, COMPRESSION(88S)

90501-553G0-00

Unavailable

28

SPRING, COMPRESSION(88R)

90501-553G6-00

Unavailable

28

SPRING, COMPRESSION(8AX)

90501-581J7-00

Unavailable

28

SPRING, COMPRESSION(88R)

90501-604G0-00

Unavailable

28

SPRING, COMPRESSION(88R)

90501-605G7-00

Unavailable

29

. BOLT (L=1653MM)

88R-17647-00-00

Unavailable

30

WASHER(JN5)

92907-16100-00

Unavailable

31

V-BELT

89L-17641-02-00

Unavailable

32

WASHER, PLATE(88S)

90201-483P9-00

Unavailable

33

CLUTCH ASY

89L-17601-09-00

Unavailable

34

CLUCH TUNE-UP KIT (R)

88R-00000-51-00

Unavailable
