Description

Price

1

EXHAUST PIPE ASY L

99999-03003-00

Unavailable

2

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

3

BOLT, HEXAGON

97013-08020-00

$1.16

4

WASHER(JN5)

92907-08100-00

$8.49

5

MUFFLER ASY L

88R-14710-01-00

Unavailable

6

PROTECTOR, MUFFLER 1

86M-14718-00-00

Unavailable

7

PROTECTOR, MUFFLER 2

86M-14728-00-00

Unavailable

8

BOLT, FLANGE

95812-06010-00

$2.98

9

SPRING, TENSION (8R7)

90506-20272-00

$11.49

10

SPRING, TENSION

90506-16394-00

Unavailable

11

SPRING, TENSION

90506-16335-00

Unavailable

12

PROTECTOR, MUFFLER 2

8A5-14728-02-00

Unavailable

13

STOPPER

8M6-14768-00-00

Unavailable

14

STOPPER

89J-14768-00-00

Unavailable

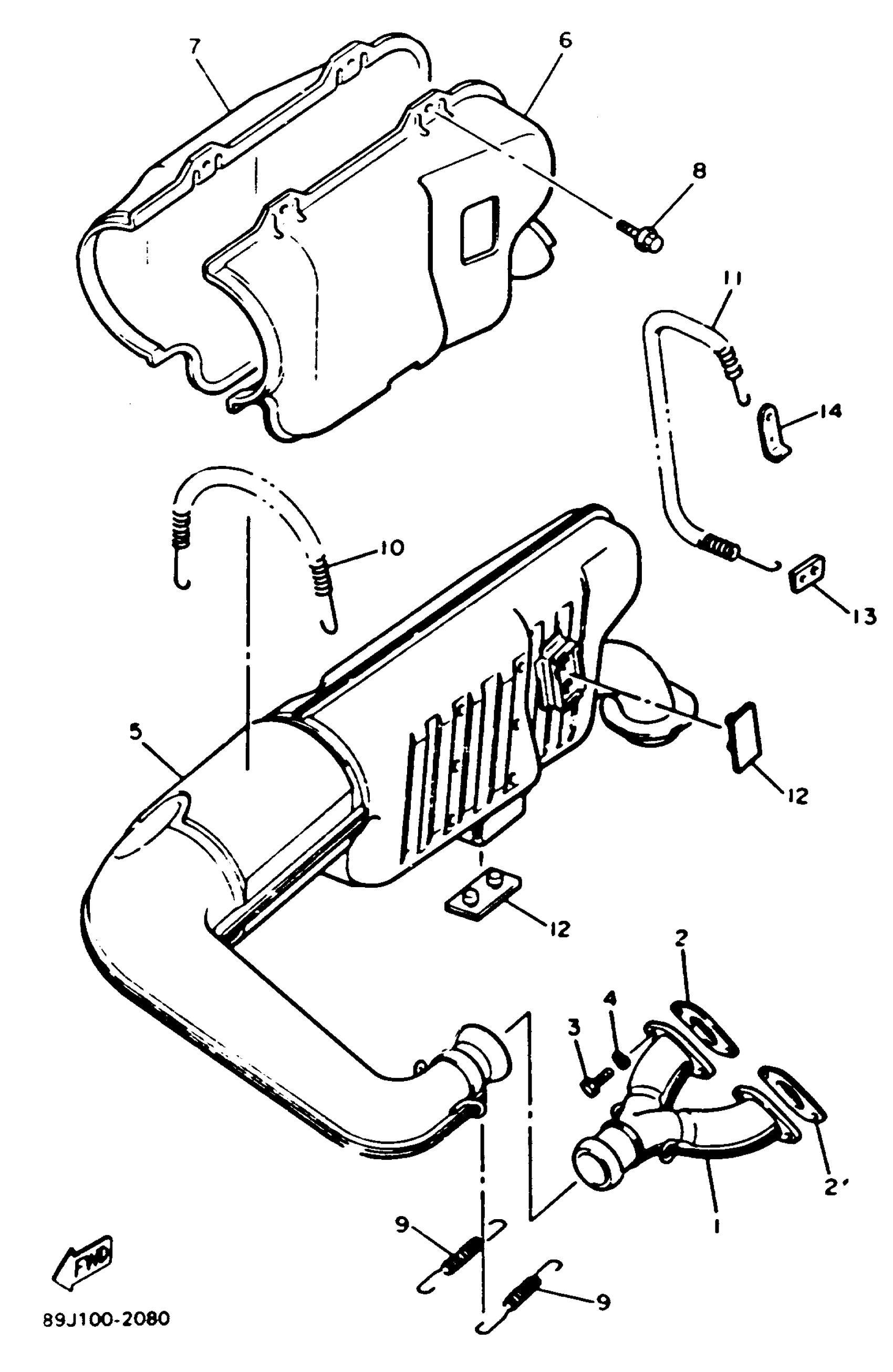

Yamaha EX570T (EXCITER II) 1993 EXHAUST Diagram

EXHAUST PIPE ASY L

GASKET, EXHAUST PIPE

BOLT, HEXAGON

WASHER(JN5)

MUFFLER ASY L

PROTECTOR, MUFFLER 1

PROTECTOR, MUFFLER 2

BOLT, FLANGE

SPRING, TENSION (8R7)

SPRING, TENSION

SPRING, TENSION

PROTECTOR, MUFFLER 2

STOPPER

STOPPER
