Description

Price

1

IGNITION COIL ASSY

85T-82310-06-00

$79.99

2

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

3

SCREW, TAPPING

97707-60525-00

$8.49

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

8DG-82370-00-00

$49.99

6

C.D.I. UNIT ASSEMBLY

8AV-85540-00-00

Unavailable

7

BOLT, FLANGE

95817-06016-00

$2.75

8

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

Unavailable

10

WIRE HARNESS ASSEMBLY

89J-82590-00-00

Unavailable

11

CHECKER, PILOT LAMP

38W-85774-00-00

Unavailable

12

BAND, SWITCH CORD

25G-83936-01-00

$4.78

13

WIRE, SUB-LEAD

80N-82319-00-00

Unavailable

14

RESISTOR ASSEMBLY

88T-85370-00-00

Unavailable

15

SCREW, BIND (705)

98980-06016-00

$8.49

16

NUT, NYLON

95707-06300-00

Unavailable

17

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

18

BOLT, HEXAGON

97017-06030-00

Unavailable

19

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

20

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

21

. BULB (12V5W)

8V0-85353-00-00

Unavailable

22

SWITCH

88H-82917-00-00

Unavailable

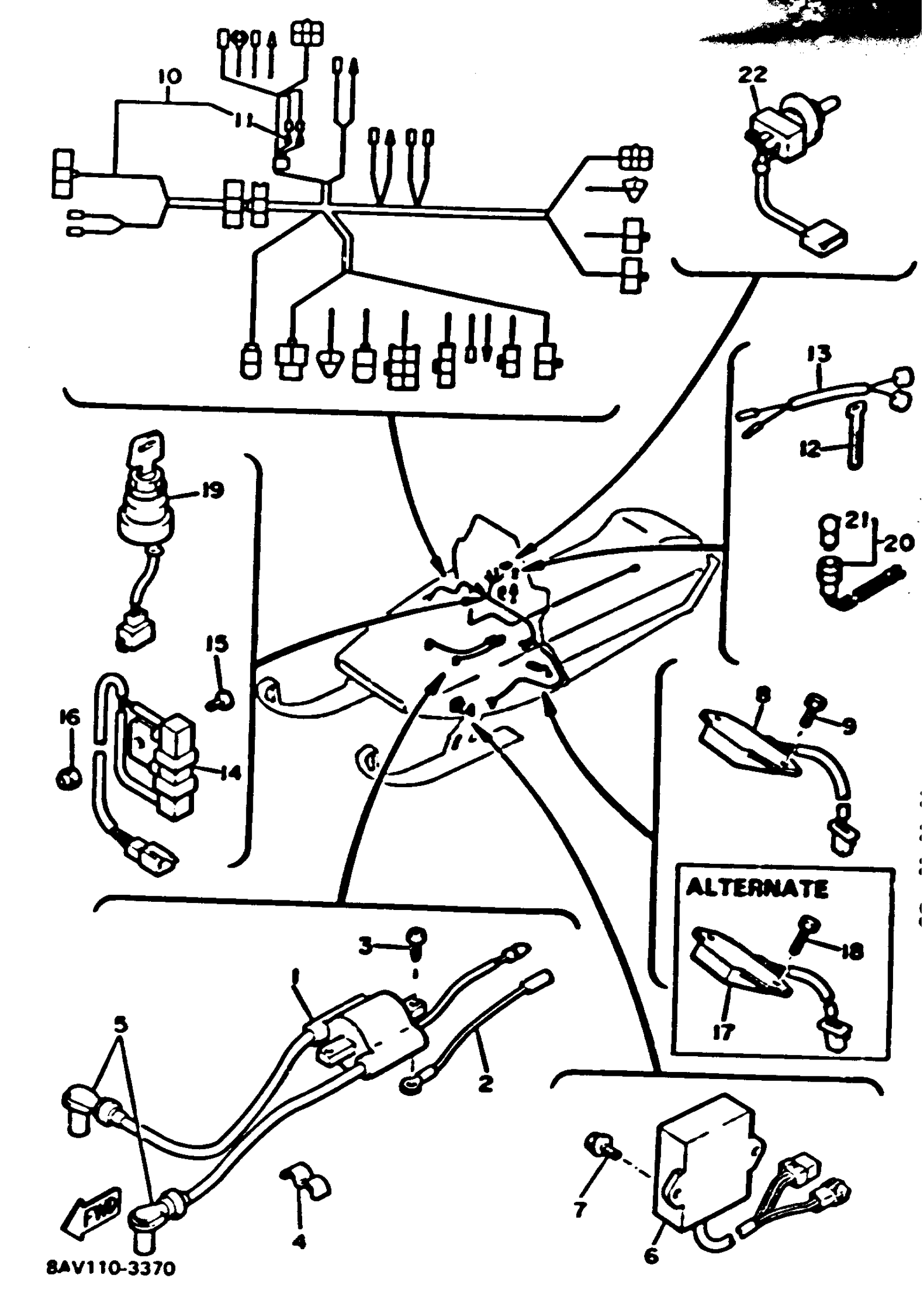

Yamaha EX570T (EXCITER II) 1993 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

WIRE, SUB-LEAD

SCREW, TAPPING

CLAMP, CORD

PLUG CAP ASSY

C.D.I. UNIT ASSEMBLY

BOLT, FLANGE

VOLTAGE REGULATOR ASSY

BOLT, HEXAGON DEEP RECESS

WIRE HARNESS ASSEMBLY

CHECKER, PILOT LAMP

BAND, SWITCH CORD

WIRE, SUB-LEAD

RESISTOR ASSEMBLY

SCREW, BIND (705)

NUT, NYLON

VOLTAGE REGULATOR ASSY

BOLT, HEXAGON

MAIN SWITCH ASSY

PILOT LIGHT ASSEMBLY 1

. BULB (12V5W)

SWITCH
