Description

Price

1

FAIRING

89L-77231-00-00

Unavailable

2

BAND, BATTERY

4J2-82131-01-00

$29.99

3

SRAY, FAIRING

88R-77241-00-00

Unavailable

4

BRACKET, WINDSHIELD (L.H)

88R-77221-00-00

Unavailable

5

SCREW, BINDING

98907-06008-00

$8.49

6

BOLT, HEXAGON

97017-06030-00

$3.61

7

WASHER, SPRING

92907-06100-00

$4.25

8

WINDSHIELD

8AY-77210-00-00

Unavailable

9

TRIM,UPPER

87K-77213-00-00

Unavailable

10

WINDSHIELD COMP.

88R-77210-00-00

Unavailable

11

TRIM,UPPER

87K-77213-00-00

Unavailable

12

SCREW, ROUND HEAD(88R)

90150-05028-00

$4.29

13

WASHER, PLATE 8067717800

90201-05029-00

$8.49

14

NUT, HEXAGON

95317-05600-00

$2.34

15

BRACKET, METER

82M-83519-01-00

Unavailable

16

SCREW, BINDING

98907-06008-00

$8.49

17

COVER, HEADLIGHT

88R-77251-00-00

Unavailable

18

SCREW, BINDING

98907-05016-00

Unavailable

19

EMBLEM 6

8AY-77356-00-00

Unavailable

20

EMBLEM 7

8AY-77357-00-00

Unavailable

21

INDICATOR, COCK

86M-24153-00-00

Unavailable

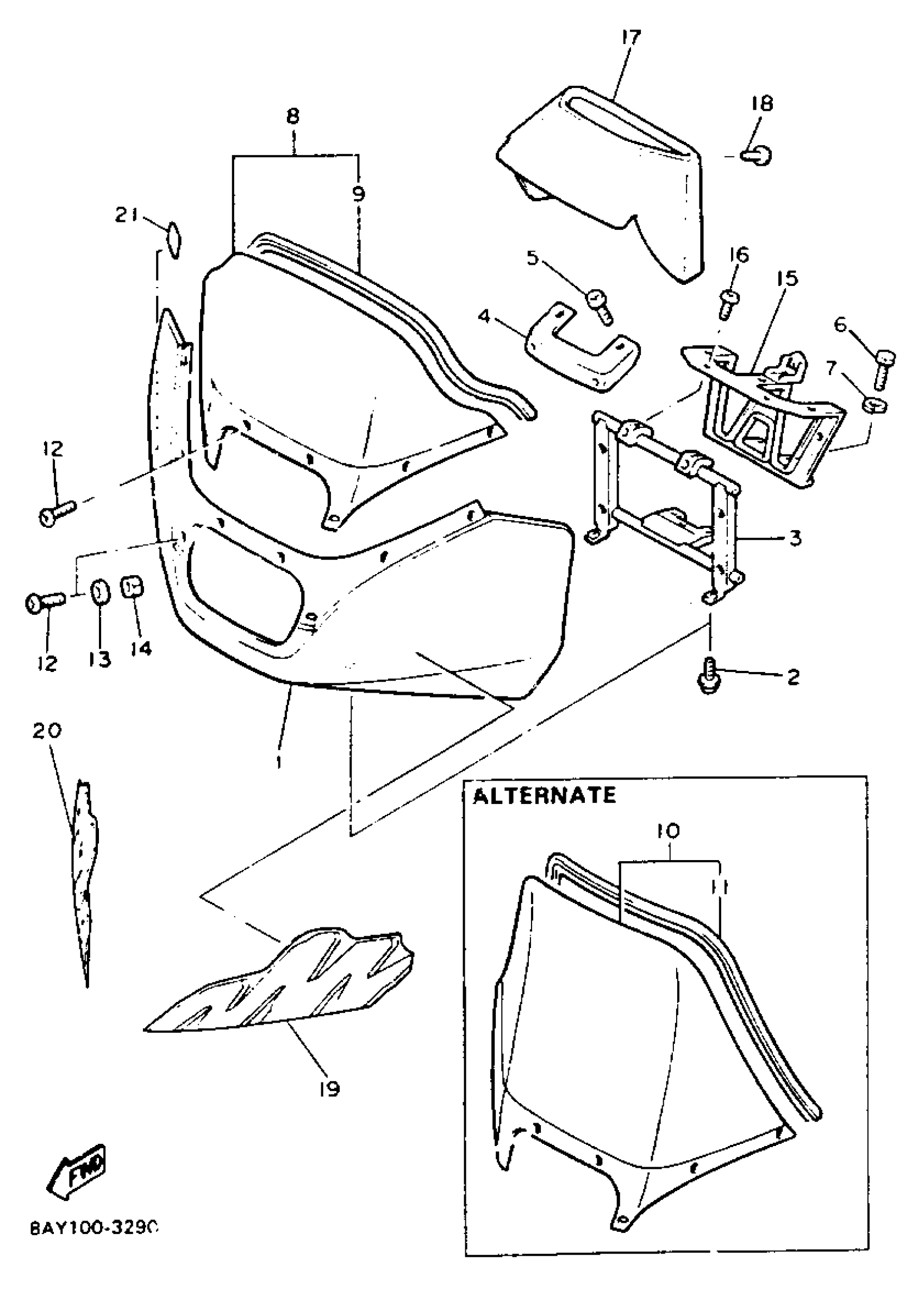

Yamaha EX570SXT (EXCITER II SX) 1993 WINDSHIELD Diagram

FAIRING

BAND, BATTERY

SRAY, FAIRING

BRACKET, WINDSHIELD (L.H)

SCREW, BINDING

BOLT, HEXAGON

WASHER, SPRING

WINDSHIELD

TRIM,UPPER

WINDSHIELD COMP.

TRIM,UPPER

SCREW, ROUND HEAD(88R)

WASHER, PLATE 8067717800

NUT, HEXAGON

BRACKET, METER

SCREW, BINDING

COVER, HEADLIGHT

SCREW, BINDING

EMBLEM 6

EMBLEM 7

INDICATOR, COCK
