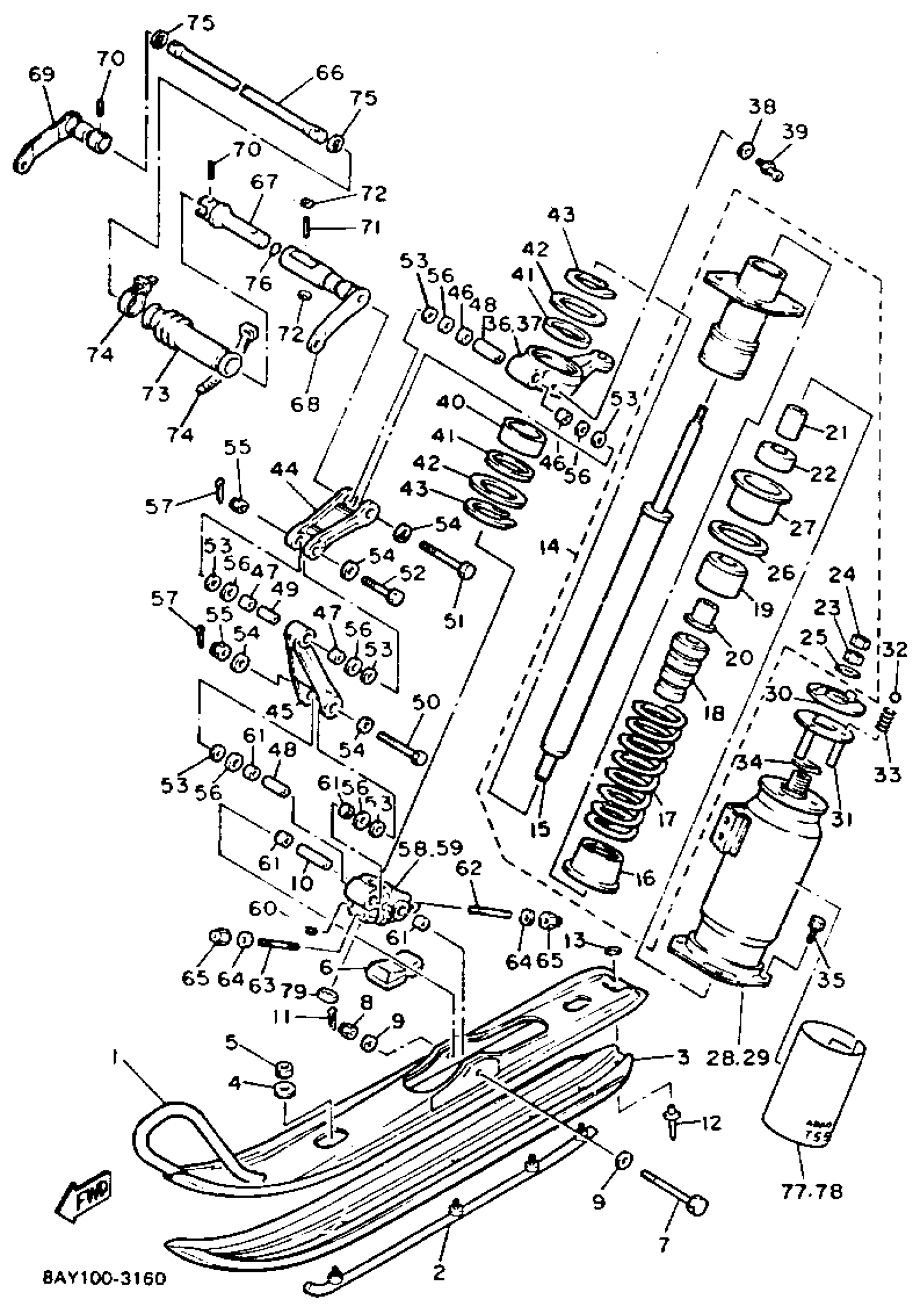

Yamaha EX570SXT (EXCITER II SX) 1993 SKI Diagram
#
1
SKI 1
89L-23710-00-00
Unavailable
2
RUNNER 1, SKI
8AY-23731-00-XX
Unavailable
3
RUNNER 2
89L-23732-00-00
Unavailable
4
.. WASHER, PLATE
92990-08600-00
Unavailable
5
NUT, U
95617-08100-00
$9.49
6
STOPPER 1
88T-23743-00-00
$23.99
7
BOLT, WITH HAUL (31A)
90102-10050-00
$18.99
8
NUT, NYLON
95707-10300-00
$8.49
9
WASHER (7A9)
90201-100F7-00
$9.49
10
COLLAR (8V0)
90387-106J3-00
$17.99
11
PIN, COTTER
91490-20025-00
$1.99
12
RIVET, BLIND(89A)
90267-48160-00
$7.49
13
WASHER, PLATE
90201-04027-00
$3.02
14
ABSORBER ASSEMBLY 1
8AY-2376A-00-00
Unavailable
15
. DAMPER SUB-ASSEMBLY
8AY-22401-00-00
Unavailable
16
. SEAT, SPRING 2
8AY-23777-00-00
Unavailable
17
. SPRING, COMPRESSION
90501-701J0-00
Unavailable
18
BUMP, STOP
89L-22493-00-00
Unavailable
19
. PLATE, BACK UP
8AY-23788-00-00
Unavailable
20
. COLLAR
90387-0800J-00
Unavailable
21
. COLLAR
90387-0900H-00
Unavailable
22
WASHER
82M-23779-00-00
Unavailable
23
. NUT
90170-08220-00
Unavailable
24
NUT(6L2)
95333-08600-00
Unavailable
25
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
26
. WASHER, PLATE
90202-54215-00
Unavailable
27
. SEAT, SPRING 1
8AY-23768-00-00
Unavailable
28
HOLDER, ABSORBER (L.H)
8AY-2376J-00-00
Unavailable
29
HOLDER, ABSORBER 2 (R.H)
8AY-2377J-00-00
Unavailable
30
NUT
8AY-23778-00-00
Unavailable
31
STOPPER 2
8AY-23744-00-00
Unavailable
32
BALL
93503-16003-00
Unavailable
33
SPRING, COMPRESSION
90501-080J6-00
Unavailable
34
CIRCLIP(4A6)
99009-30400-00
Unavailable
35
BOLT, HEXAGON
97017-06020-00
Unavailable
36
ARM, OUTSIDE 1
82M-23851-00-00
Unavailable
37
ARM, OUTSIDE 2 (R, H)
82M-23852-00-00
Unavailable
38
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
39
NIPPLE, GREASE
93700-06M03-00
Unavailable
40
BUSH, BIMETAL FORMED (8U7)
90384-53175-00
Unavailable
41
OIL SEAL (8U7)
93109-53036-00
Unavailable
42
WASHER, PLATE(8W1)
90201-535H6-00
Unavailable
42
WASHER, PLATE (8L9)
90201-536A1-00
Unavailable
43
CIRCLIP (8L9)
93410-52061-00
Unavailable
44
ARM, FRONT 1
8M6-2382E-00-00
Unavailable
45
ARM, FRONT 2
8M6-2382F-00-00
Unavailable
46
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
47
BUSH, BIMETAL FORMED (8L0)
90384-14096-00
Unavailable
48
COLLAR(89A)
90387-101Y9-00
Unavailable
49
COLLAR (8L0)
90387-100A4-00
Unavailable
50
BOLT, WITH HOLE
90102-10074-00
Unavailable
51
BOLT
90101-10040-00
Unavailable
52
BOLT, W/HOLE
90102-10073-00
Unavailable
53
WASHER, PLATE (8M6)
90201-105A8-00
Unavailable
54
WASHER, PLATE (8M6)
90201-115A7-00
Unavailable
55
NUT, NYLON
95707-10300-00
$8.49
56
WASHER(82M)
90209-14296-00
Unavailable
57
PIN, COTTER
91490-20025-00
$1.99
58
BRACKET 1
84M-2376E-00-00
Unavailable
59
BRACKET 2
84M-2377E-00-00
Unavailable
60
BOLT, SET (8K2)
90113-06039-00
Unavailable
61
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
62
BOLT, STUD 3
95617-08655-00
Unavailable
63
BOLT, STUD 3
95617-08640-00
Unavailable
64
.. WASHER, PLATE
92990-08600-00
Unavailable
65
NUT, NYLON
95717-08300-00
Unavailable
66
BAR, STABILIZER FRONT
89A-2386E-00-00
Unavailable
67
LINK, STABILIZER FRONT
89A-2386F-00-00
Unavailable
68
JOINT, STABILIZER
8AY-2385L-00-00
Unavailable
69
JOINT, STABILIZER
8AY-2385M-00-00
Unavailable
70
BOLT, SET (8K2)
90113-06039-00
Unavailable
71
PIN, DOWEL
93605-25223-00
Unavailable
72
SLIDER
82M-2386R-00-00
Unavailable
73
COVER, STABILIZER FRONT
89A-2386H-00-00
Unavailable
74
BAND
1UA-82591-00-00
Unavailable
75
CIRCLIP (4H7)
93410-23056-00
Unavailable
76
O-RING
93210-15751-00
Unavailable
77
EMBLEM 15
8AX-77371-00-00
Unavailable
78
EMBLEM 16
8AY-77372-00-00
Unavailable
79
CAP 1
8AY-23741-00-00
Unavailable
