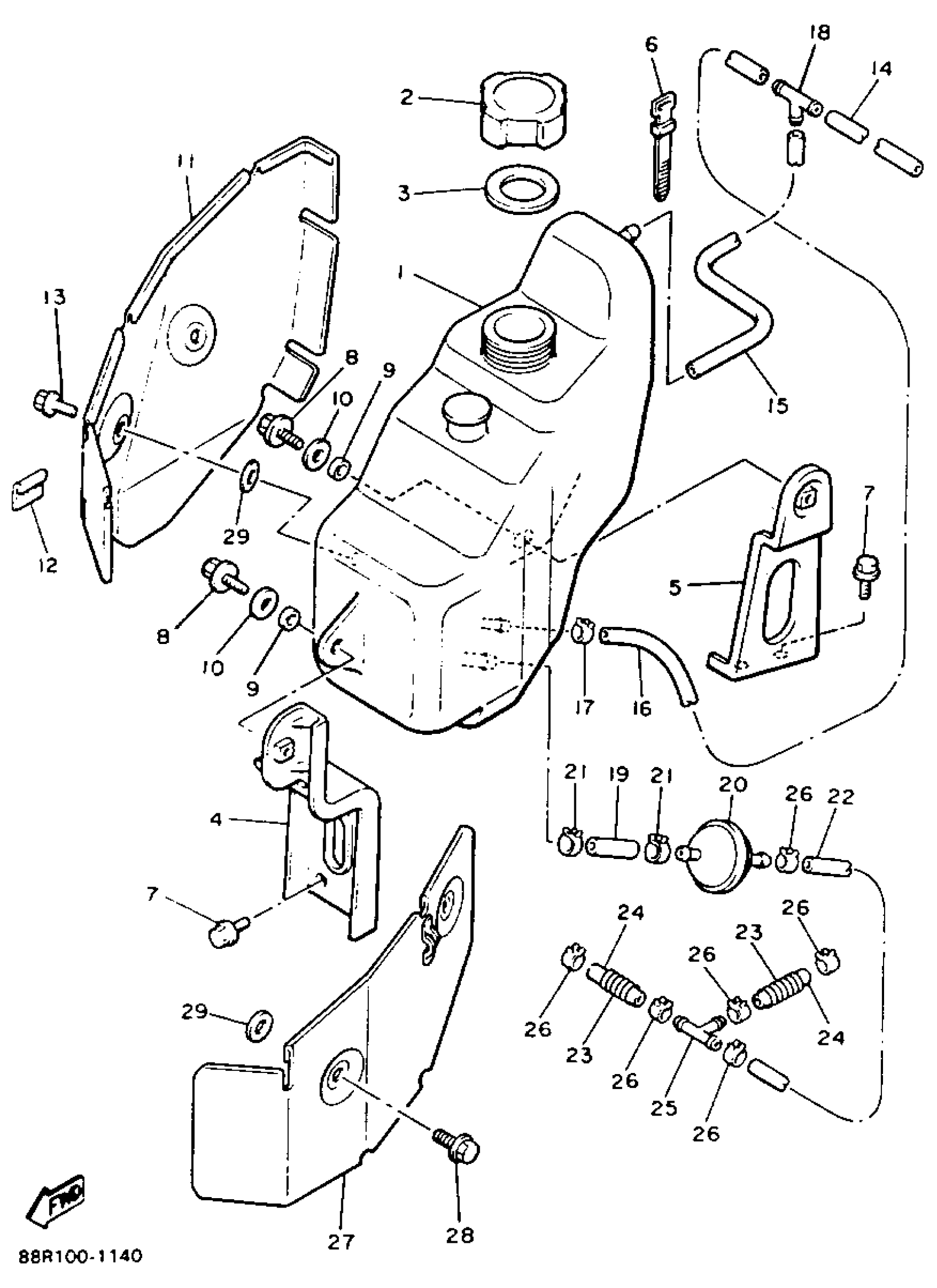

Yamaha EX570SXT (EXCITER II SX) 1993 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

88R-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

BRACKET, OIL TANK 1

82M-2193E-00-00

Unavailable

5

BRACKET, OIL TANK 2

82M-2193F-00-00

Unavailable

6

BAND, SWITCH CORD

25G-83936-01-00

$4.78

7

BOLT, FLANGE

95817-06012-00

$1.43

8

BOLT

90109-06757-00

Unavailable

9

COLLAR

90387-06704-00

Unavailable

10

WASHER, PLATE

90201-06380-00

$0.60

11

PLATE

84M-2176E-00-00

Unavailable

12

COVER, FLANGE

88R-2175N-00-00

Unavailable

13

BOLT, FLANGE

95817-06012-00

$1.43

14

HOSE

90446-09353-00

Unavailable

15

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

16

HOSE

90446-09262-00

Unavailable

17

CLIP (8A1)

90467-09026-00

Unavailable

18

PIPE, JOINT

801-24376-00-00

Unavailable

19

HOSE

91A30-07036-00

Unavailable

20

HOUSING STRAINER ASSY

8G8-13410-00-00

Unavailable

21

CLIP (7K7)

90467-11044-00

Unavailable

22

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

Unavailable

23

SPRG., COMPRESSION (8BY1)

90501-083J9-00

Unavailable

24

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

Unavailable

25

PIPE, JOINT

801-24376-00-00

Unavailable

26

CLIP (8A1)

90467-09026-00

Unavailable

27

COVER

8AY-2172W-00-00

Unavailable

28

BOLT, FLANGE

95817-06012-00

$1.43

29

WASHER, SPECIAL 1

84M-21715-00-00

Unavailable
