Description

Price

1

OIL PUMP ASY

8AY-13101-00-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.92

4

SPRING, CHECK BALL (451)

90501-02217-00

$7.49

5

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

6

NOZZLE

353-13552-01-00

$9.99

7

CLIP (2A6)

90468-02025-00

$9.49

8

GASKET 137131870000

90430-04004-00

$9.49

9

SCREW, BINDING

98907-04020-00

Unavailable

10

PLATE, ADJUSTING

137-13138-01-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-03

$5.49

11

SHIM,PLUNGER

137-13137-00-05

$6.99

11

SHIM,PLUNGER

137-13137-00-10

$7.99

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

15

SCREW, PAN HEAD

98507-04018-00

Unavailable

16

PUMP CABLE ASSEMBLY

8AY-26320-00-00

Unavailable

17

BOLT, SOCKET

91317-05016-00

Unavailable

18

GASKET, PUMP CASE

126-13116-01-00

Unavailable

19

CLIP (2A6)

90468-02025-00

$9.49

20

SHAFT, WORM

82M-13175-00-00

Unavailable

21

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

22

METAL, WORM SHAFT OUTER

821-13176-00-00

Unavailable

23

PLATE

500-14146-00-00

Unavailable

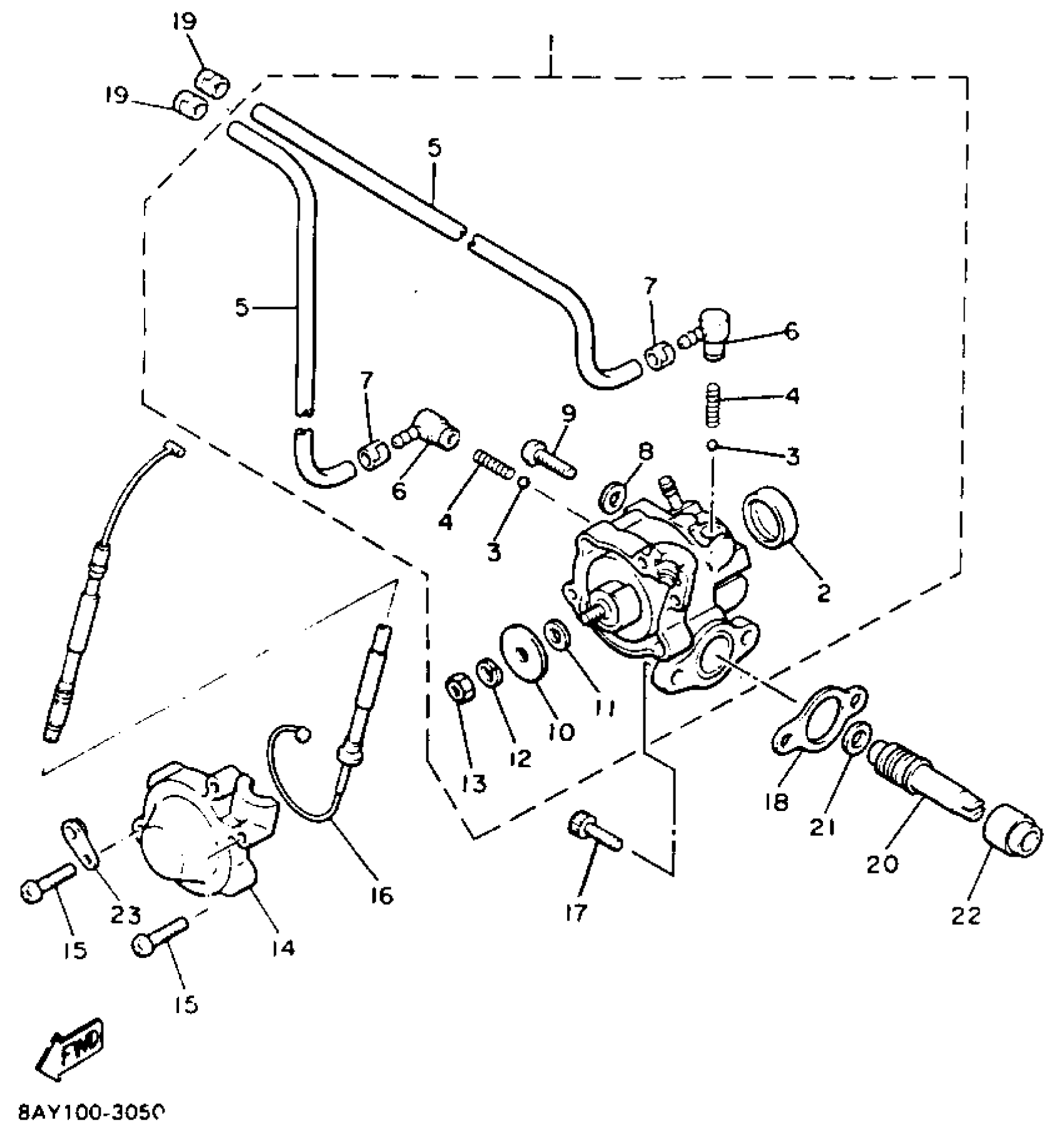

Yamaha EX570SXT (EXCITER II SX) 1993 OIL PUMP Diagram

OIL PUMP ASY

. PLUG

BALL

SPRING, CHECK BALL (451)

TUBE, FLEXIBLE VINYL(8AV)

NOZZLE

CLIP (2A6)

GASKET 137131870000

SCREW, BINDING

PLATE, ADJUSTING

SHIM,PLUNGER

SHIM,PLUNGER

SHIM,PLUNGER

YBS67-5 WASHER, SPRING

NUT, HEXAGON (663)

COVER, ADJUST PULLEY

SCREW, PAN HEAD

PUMP CABLE ASSEMBLY

BOLT, SOCKET

GASKET, PUMP CASE

CLIP (2A6)

SHAFT, WORM

WASHER, PLATE (1E7)

METAL, WORM SHAFT OUTER

PLATE
