Description

Price

1

IGNITION COIL ASSY

85T-82310-06-00

$79.99

2

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

3

SCREW, TAPPING

97707-60525-00

$8.49

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

8DG-82370-00-00

$49.99

6

CDI UNIT ASSEMBLY

8AY-85540-00-00

Unavailable

7

BOLT, FLANGE

95817-06016-00

$2.75

8

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

9

BOLT, FLANGE

95817-06012-00

$1.43

10

WIRE HARNESS ASSEMBLY

8AV-82590-00-00

Unavailable

11

CHECKER, PILOT LAMP

38W-85774-00-00

Unavailable

12

BAND, SWITCH CORD

25G-83936-01-00

$4.78

13

WIRE, SUB-LEAD

8AY-82319-00-00

Unavailable

14

CLAMP(2TV)

90464-10112-00

$8.49

15

RESISTOR ASSEMBLY

88T-85370-00-00

Unavailable

16

SCREW, BIND (705)

98980-06016-00

Unavailable

17

NUT, NYLON

95707-06300-00

Unavailable

18

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

Unavailable

20

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

21

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

22

. BULB (12V5W)

8V0-85353-00-00

Unavailable

23

SWITCH

88H-82917-00-00

Unavailable

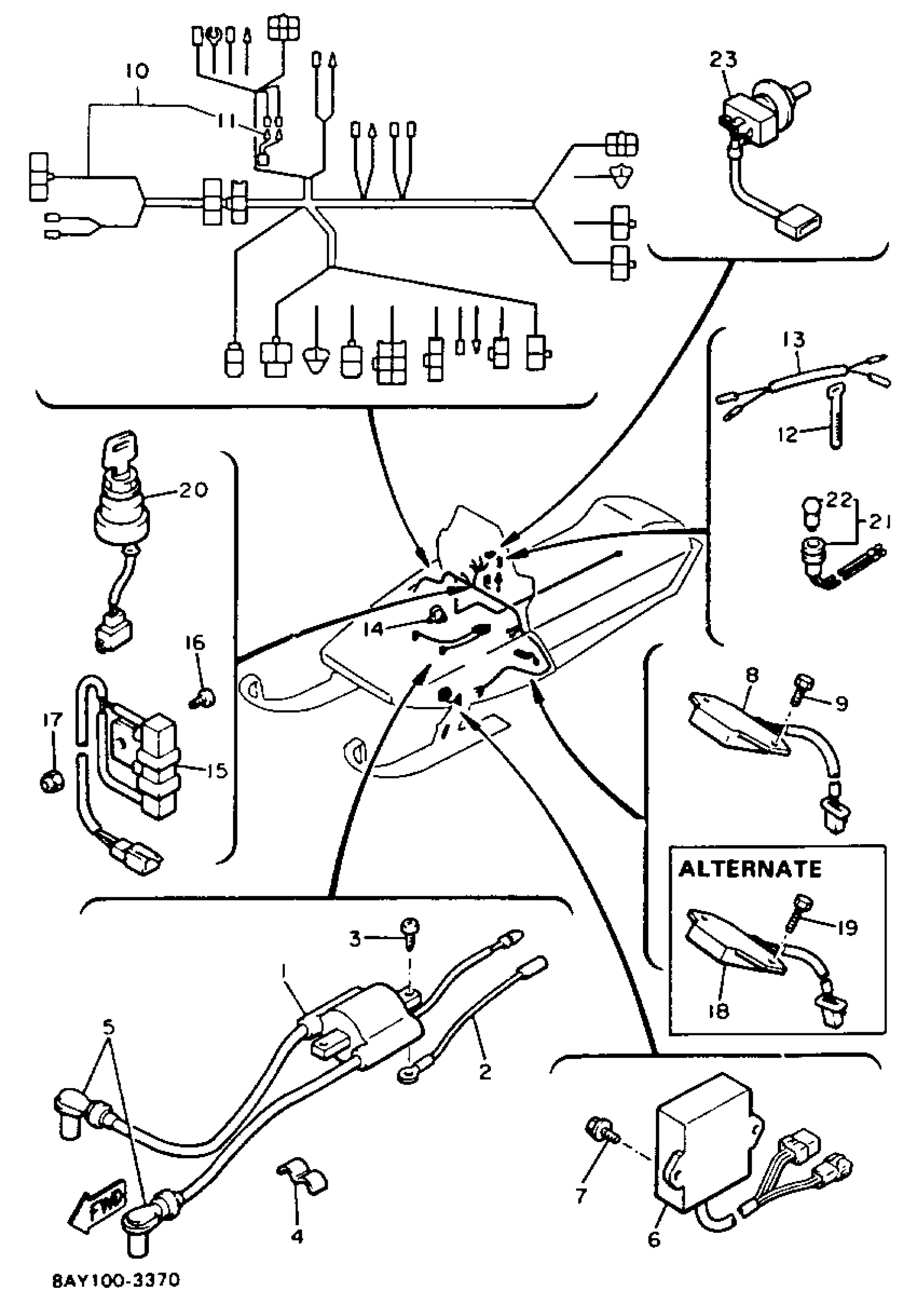

Yamaha EX570SXT (EXCITER II SX) 1993 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

WIRE, SUB-LEAD

SCREW, TAPPING

CLAMP, CORD

PLUG CAP ASSY

CDI UNIT ASSEMBLY

BOLT, FLANGE

VOLTAGE REGULATOR ASSY

BOLT, FLANGE

WIRE HARNESS ASSEMBLY

CHECKER, PILOT LAMP

BAND, SWITCH CORD

WIRE, SUB-LEAD

CLAMP(2TV)

RESISTOR ASSEMBLY

SCREW, BIND (705)

NUT, NYLON

VOLTAGE REGULATOR ASSY

BOLT, HEXAGON

MAIN SWITCH ASSY

PILOT LIGHT ASSEMBLY 1

. BULB (12V5W)

SWITCH
