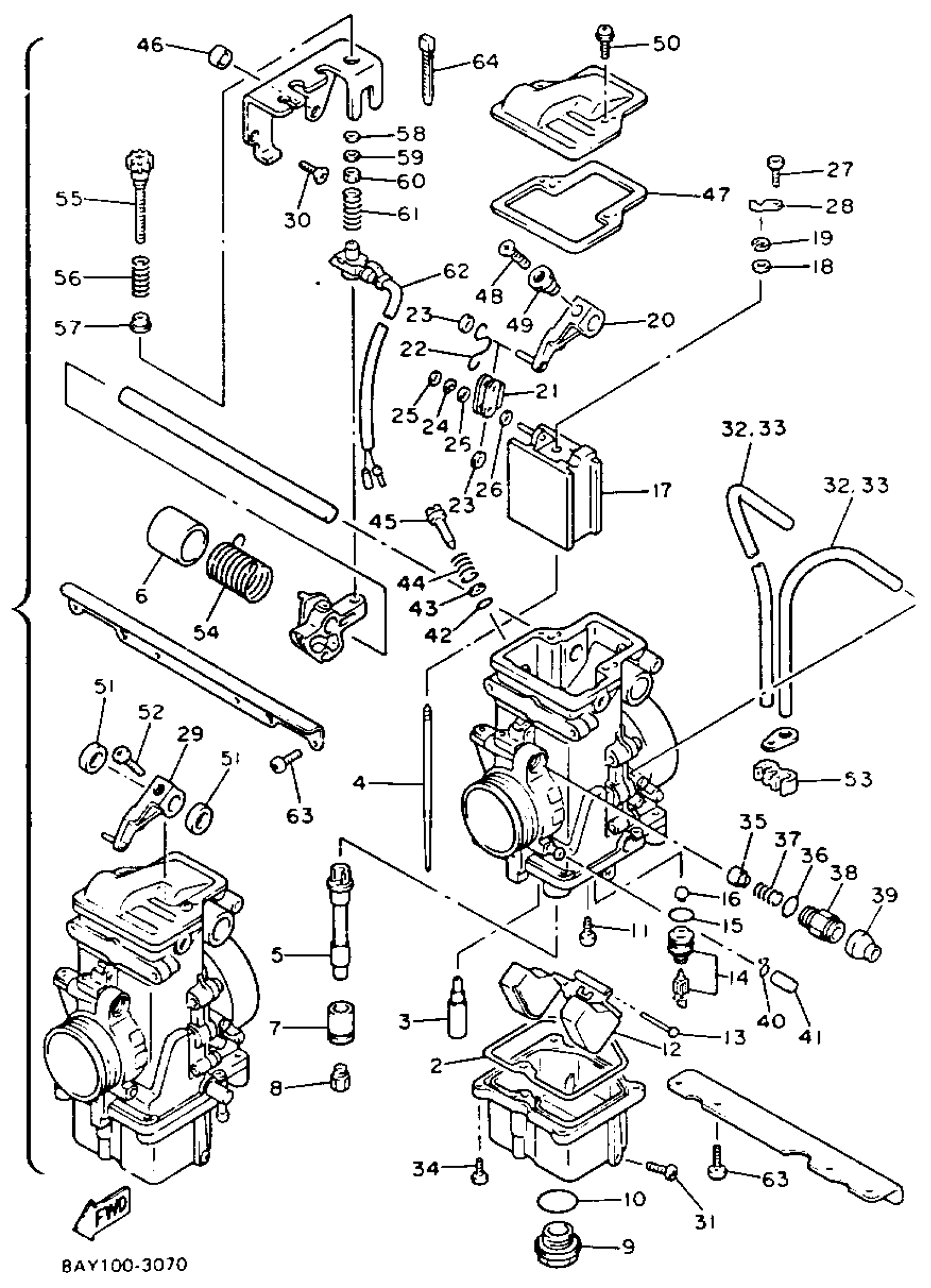

Yamaha EX570SXT (EXCITER II SX) 1993 CARBURETOR Diagram
#
1
CARBURETOR (L.H)
8AY-14100-00-00
Unavailable
2
O-RING
8AY-14147-00-00
$14.49
3
JET, PILOT (# 52.5)
3H1-14142-52-00
$15.49
3
JET, PILOT (# 55)
3H1-14142-55-00
$16.49
4
. NEEDLE
8AY-14116-02-00
Unavailable
5
. NOZZLE, MAIN
8AY-14141-46-00
Unavailable
6
. COLLAR
8AY-14265-00-00
Unavailable
7
RING
89A-14194-00-00
$18.49
8
JET, MAIN (#145)
3G2-14231-29-00
$15.49
8
JET, MAIN (#150)
3G2-14231-30-A0
$13.49
8
JET, MAIN (#155)
3G2-14231-31-00
$11.99
8
JET, MAIN (#160)
3G2-14231-32-00
Unavailable
8
JET,MAIN #142.5
3G2-1423A-79-00
$11.99
8
JET,MAIN #147.5
3G2-1423A-80-A0
$13.49
8
JET,MAIN #152.5
3G2-1423A-81-00
$20.99
8
JET,MAIN #157.5
3G2-1423A-82-00
Unavailable
8
JET,MAIN #162.5
3G2-1423A-83-00
Unavailable
9
PLUG, SCREW
500-14115-00-00
Unavailable
10
O-RING (541)
558-14147-00-00
Unavailable
11
SCREW
2LN-14565-00-00
Unavailable
12
. FLOAT
8AY-14185-10-00
Unavailable
13
PIN, FLOAT
537-14186-00-00
Unavailable
14
NEEDLE VALVE ASSY
1AE-14190-15-00
Unavailable
15
O-RING
8F2-14147-00-00
Unavailable
16
NET, FILTER
1J7-14994-00-00
Unavailable
17
. VALVE, THROTTLE (CA=30)
8AY-14112-30-00
Unavailable
18
. WASHER (T=08MM)
8AY-14227-00-00
Unavailable
19
CLIP
256-14919-00-00
Unavailable
20
. LEVER
8AY-14905-00-00
Unavailable
21
. PLATE
8AY-14243-00-00
Unavailable
22
. CLIP
8AY-14137-00-00
Unavailable
23
RING
3MA-14918-00-00
Unavailable
24
CLIP
3MA-14937-00-00
Unavailable
25
GASKET
620-14198-00-00
Unavailable
26
GASKET
3GF-14126-00-00
Unavailable
27
BOLT, SOCKET
91317-03006-00
Unavailable
28
. PLATE
8AY-14945-00-00
Unavailable
29
. LEVER
8AY-14573-00-00
Unavailable
30
SCREW, FLAT
98707-05012-00
Unavailable
31
PLUG, DRAIN
12R-14191-00-00
Unavailable
32
HOSE
88R-14987-00-00
Unavailable
33
. HOSE (87M-14987-00-00)
87M-12484-00-00
Unavailable
34
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
35
PLUNGER, STARTER
8U9-14171-00-00
Unavailable
36
O-RING
1AE-14147-00-00
Unavailable
37
SPRING, PLUNGER
127-14135-00-00
Unavailable
38
. HOLDER
8AY-14261-00-00
Unavailable
39
COVER, PLUNGER CAP
22F-14173-00-00
Unavailable
40
. CLIP
28V-14919-00-00
Unavailable
41
CAP
(8AY-14169-00-00)
Unavailable
42
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
43
WASHER
3L5-14962-00-00
Unavailable
44
. SPRING, AIR ADJUSTING
3F7-14134-00-00
Unavailable
45
. SCREW, AIR ADJUSTING
3A3-14123-00-00
Unavailable
46
. COLLAR
8AY-14264-00-00
Unavailable
47
. GASKET
8AY-14199-00-00
Unavailable
48
. SCREW, FLAT HEAD (98701-05018-00)
98703-05018-00
Unavailable
49
. RING
8AY-14918-00-00
Unavailable
50
SCREW, PAN HEAD WITH WASHER
97607-04108-00
Unavailable
51
. SPACER
583-14264-00-00
Unavailable
52
SCREW, FLAT
98707-05014-00
Unavailable
53
CLIP
87M-14137-00-00
Unavailable
54
. SPRING
8AY-14275-00-00
Unavailable
55
SCREW,THROTTLE
80L-14122-00-00
Unavailable
56
SPRING
8X0-14500-00-00
Unavailable
57
RING
8X0-14184-00-00
Unavailable
58
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
59
. WASHER
1UF-14952-00-00
Unavailable
60
NUT
89A-14594-00-00
Unavailable
61
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
62
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
63
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
64
CLIP, PIPE
35H-14139-00-00
Unavailable
