Description

Price

1

BUMPER, FRONT 1

87M-77511-00-00

Unavailable

2

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

3

BUMPER, REAR 1

87F-77541-00-00

Unavailable

4

BUMPER, REAR 2

87F-77542-00-00

Unavailable

5

RIVET, BLIND

90267-48117-00

Unavailable

6

BOLT, FLANGE

95817-08012-00

$5.49

7

SCREW, BIND(J36)

98980-08025-00

$5.60

8

WASHER(JN5)

92907-08100-00

$8.49

9

BOLT, HEXAGON

97017-08025-00

$10.49

10

WASHER(JN5)

92907-08100-00

$8.49

11

WASHER, PLAIN

92990-08200-00

Unavailable

12

FLAP

8V9-77595-00-00

Unavailable

13

RIVET, BLIND (8R6)

90267-48086-00

$4.14

14

PROTECTOR 1

82M-77551-00-00

Unavailable

15

RIVET (8M6)

90269-04025-00

$8.49

16

PROTECTOR 4

8AY-77554-01-00

Unavailable

17

EMBLEM, YAMAHA

99246-00100-00

Unavailable

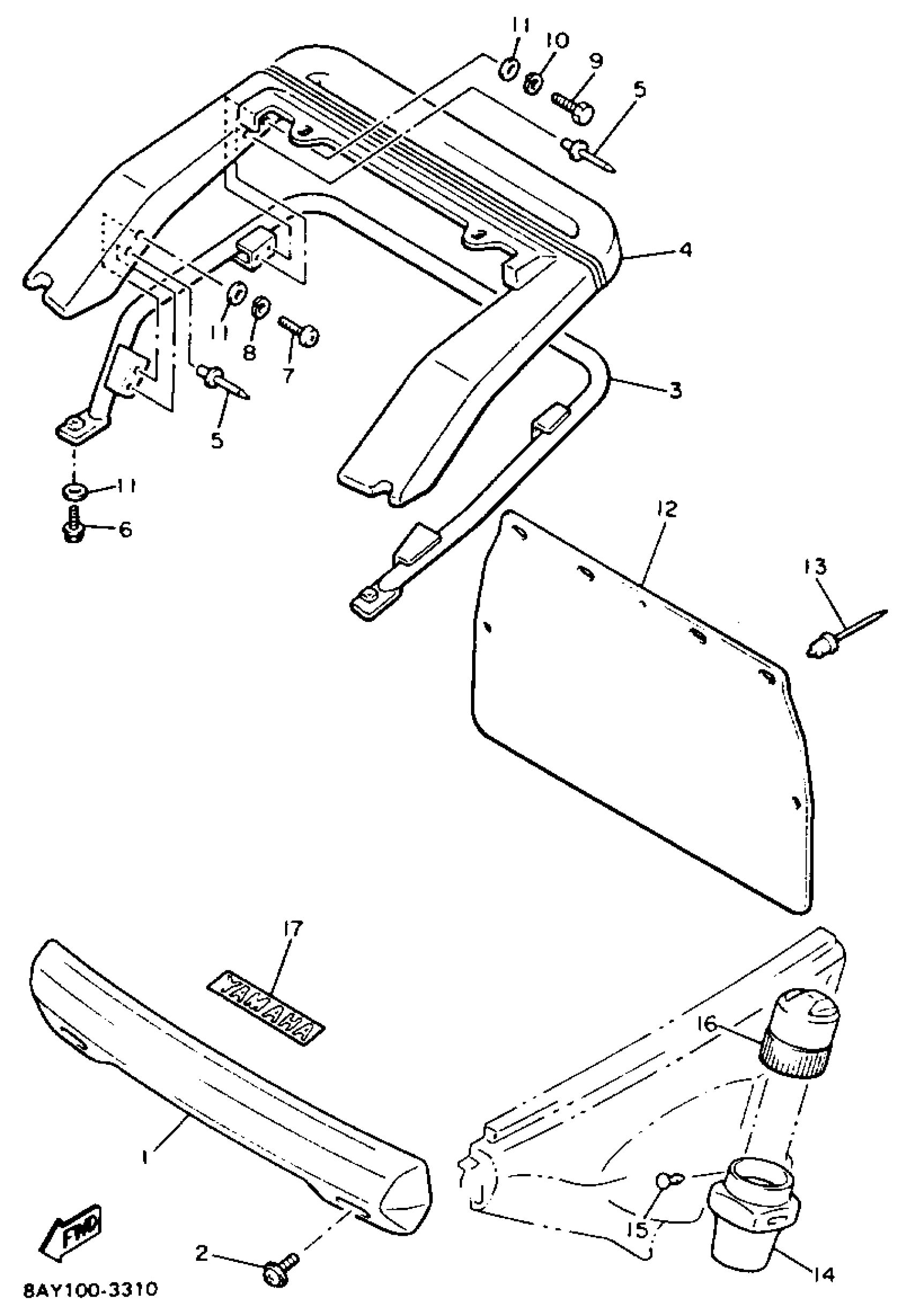

Yamaha EX570SXT (EXCITER II SX) 1993 BUMPER Diagram

BUMPER, FRONT 1

SCREW, W/WASHER (4L0)

BUMPER, REAR 1

BUMPER, REAR 2

RIVET, BLIND

BOLT, FLANGE

SCREW, BIND(J36)

WASHER(JN5)

BOLT, HEXAGON

WASHER(JN5)

WASHER, PLAIN

FLAP

RIVET, BLIND (8R6)

PROTECTOR 1

RIVET (8M6)

PROTECTOR 4

EMBLEM, YAMAHA
