AIR CLEANER

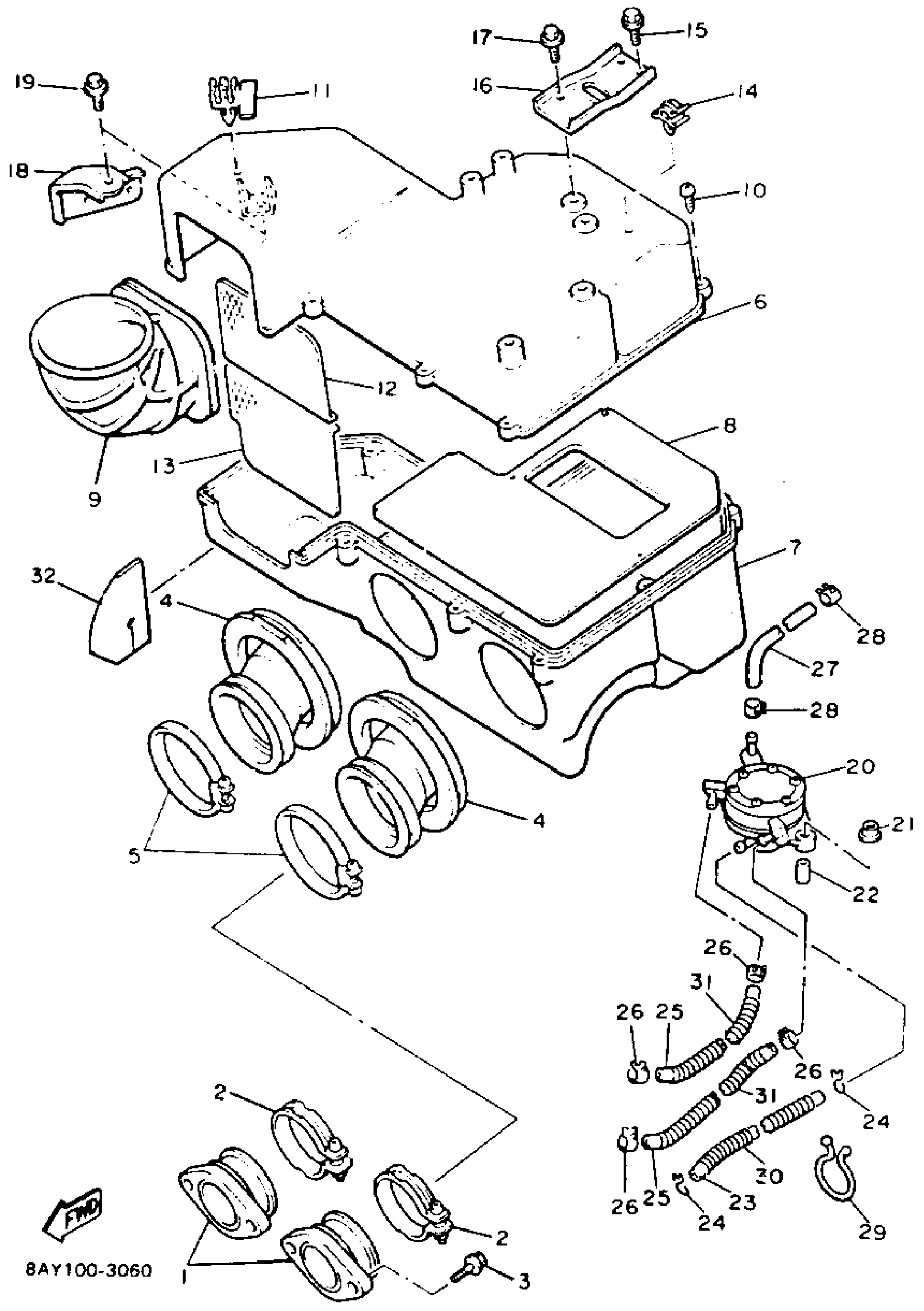

Yamaha EX570SXT (EXCITER II SX) 1993 AIR CLEANER Diagram
#
1
MANIFOLD, INTAKE
8AY-13555-00-00
Unavailable
2
BAND
86M-13575-00-00
$19.49
3
BOLT, SMALL FLANGE
95027-08020-00
$8.49
4
JOINT, AIR CLNR 1
8AY-14453-00-00
Unavailable
5
CLAMP, HOSE (29L)
90460-68230-00
$16.99
6
SILENCER, INTAKE 1
88R-14431-01-00
Unavailable
7
SILENCER, INTAKE 2
88R-14441-00-00
Unavailable
8
PLATE
8AV-14477-00-00
Unavailable
9
PIPE, SUCTION 1
88R-14423-00-00
Unavailable
10
SCREW, TAPPING(82M)
90167-05043-00
$8.49
11
CLAMP
90464-10092-00
Unavailable
12
NET 2
88R-1441B-00-00
Unavailable
13
NET 1
88R-1442B-00-00
Unavailable
14
CLAMP(88R)
90464-15156-00
Unavailable
15
BOLT, FLANGE
95817-06012-00
$1.43
16
STAY 2
88R-14494-00-00
Unavailable
17
BOLT, FLANGE
95817-06012-00
$1.43
18
STAY 1
88R-14493-00-00
Unavailable
19
BOLT, WITH WASHER(2WG)
90119-06172-00
Unavailable
20
FUEL PUMP ASY
82M-24410-02-00
Unavailable
21
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
22
COLLAR(88R)
90387-061Y7-00
Unavailable
23
HOSE (L450)
90445-10144-00
Unavailable
24
CLIP
90467-090A2-00
Unavailable
25
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
26
CLIP (8A1)
90467-09026-00
Unavailable
27
TUBE, FLEXIBLE VINYL(8AK)
91A20-07039-00
Unavailable
28
CLIP (7K7)
90467-11044-00
Unavailable
29
CLAMP
90464-25267-00
Unavailable
30
SPRING, COMPRESSION(7MX)
90501-084J0-00
Unavailable
31
SPRING, COMPRESSION(7MX)
90501-084J0-00
Unavailable
32
PROTECTOR
89J-1442F-00-00
Unavailable
