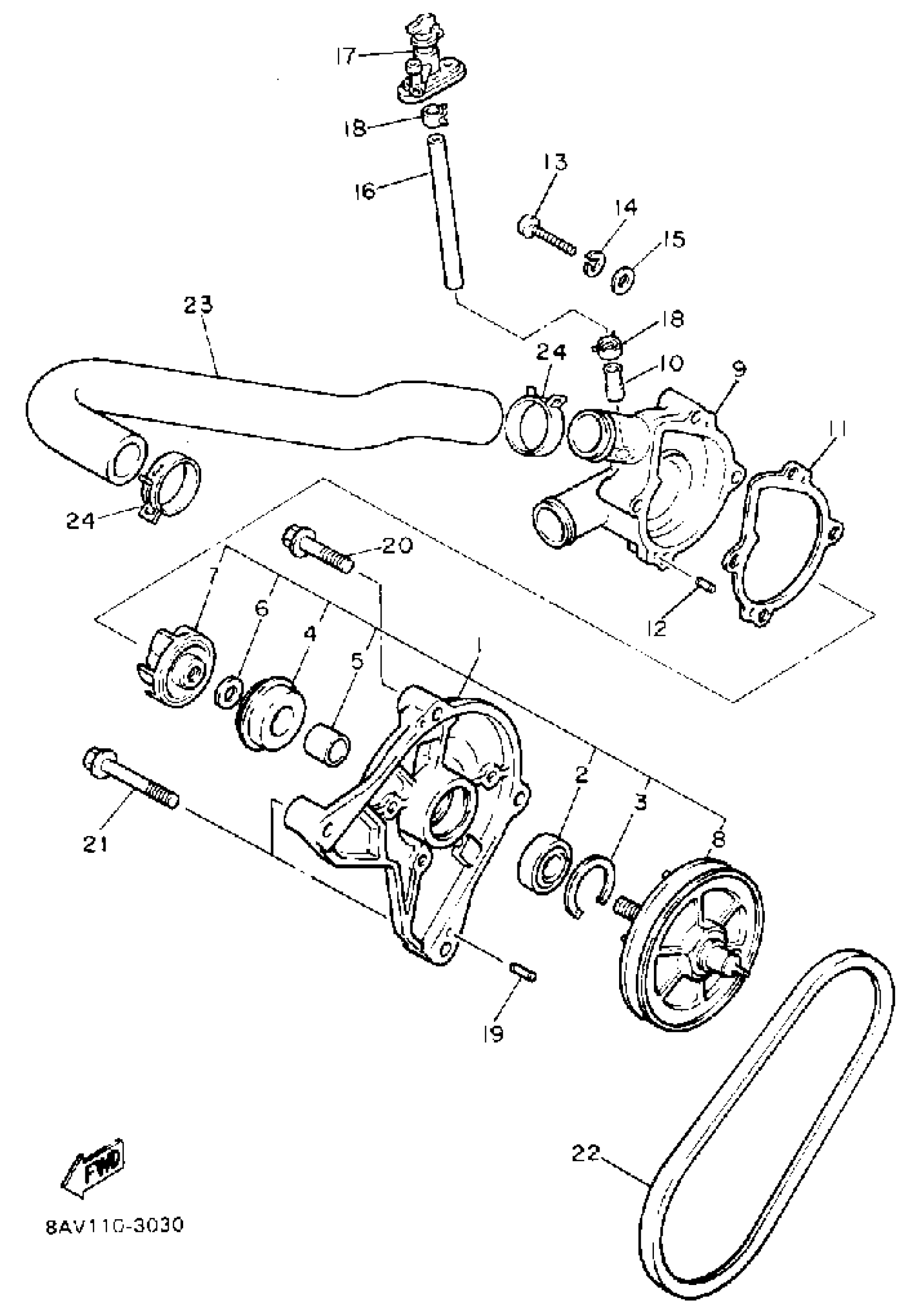

Yamaha EX570STT (EXCITER II ST) 1993 WATER PUMP Diagram

#

Description
Price

1

HOUSING, WATER PUMP

82M-W1247-03-00

Unavailable

2

BEARING(82M)

93306-20117-00

$34.99

3

CIRCLIP(82M)

93450-34118-00

$0.60

4

SEAL, MECHANICAL

82M-12438-00-00

Unavailable

5

STOPPER

82M-12437-00-00

Unavailable

6

WASHER, PLATE 2562171800

90201-08088-00

Unavailable

7

IMPELLER, WATER PUMP

82M-12451-00-00

Unavailable

8

HOUSING, WATER PUMP

82M-W1247-03-00

Unavailable

9

COVER, HOUSING

82M-12422-00-00

Unavailable

10

JOINT

8A7-12499-00-00

Unavailable

11

GASKET,HSNG CVR 1

82M-12427-01-00

Unavailable

12

PIN,DOWEL (603)

93604-10011-00

$8.49

13

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

HOSE, 4

8AV-1244G-00-00

Unavailable

17

COCK ASSY

84M-1249A-00-00

Unavailable

18

CLIP (7K7)

90467-11044-00

Unavailable

19

PIN,DOWEL (168)

93604-12037-00

Unavailable

20

BOLT, FLANGE

95817-08040-00

Unavailable

21

BOLT, FLANGE(2UJ)

95814-08110-00

Unavailable

22

BELT 1

82M-12444-00-00

Unavailable

23

PIPE 1

82M-12481-00-00

Unavailable

24

CLIP (8M6)

90467-28046-00

Unavailable
