- EX570STT (EXCITER II ST) 1993
TRACK DRIVE 2

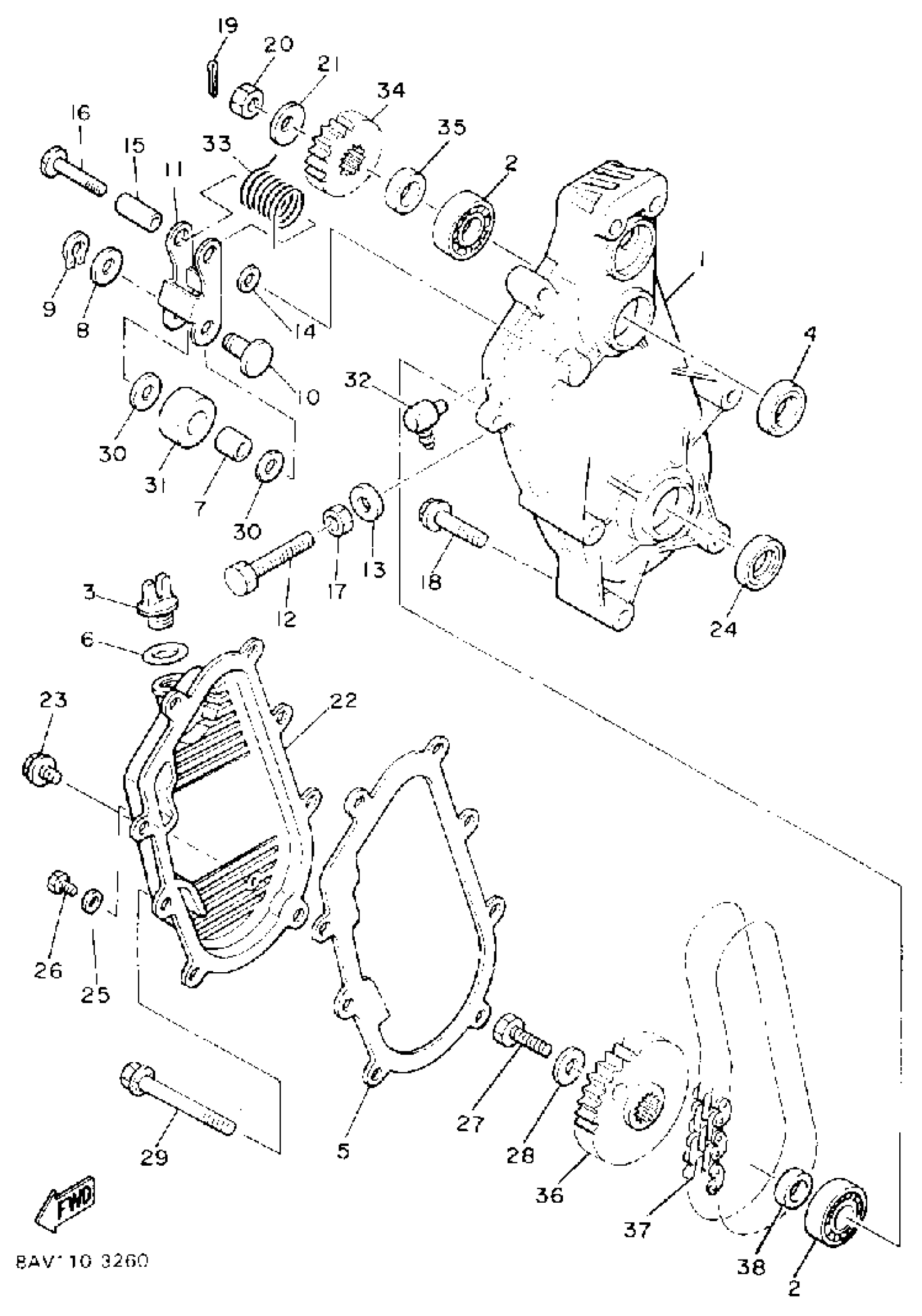

Yamaha EX570STT (EXCITER II ST) 1993 TRACK DRIVE 2 Diagram
#
1
. HOUSING, CHAIN
8L9-47541-01-00
Unavailable
2
BEARING (80N)
93306-20570-00
Unavailable
3
PLUG, OIL
3Y1-15363-10-00
$18.49
4
OIL SEAL (8K4)
93102-27204-00
$16.99
5
GASKET
86M-47592-01-00
Unavailable
6
O-RING (646)
93210-19123-00
Unavailable
7
BRG,CYL-CAL ROLLER 11G KY
93315-21227-00
$45.99
8
WASHER, PLATE (583)
90201-12631-00
$9.49
9
CIRCLIP(10Y)
99009-12400-00
$3.59
10
PIN(86P)
90249-12216-00
Unavailable
11
HOLDER
89J-47613-01-00
Unavailable
12
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
13
WASHER SEAL 256111730200
90210-10004-00
$4.77
14
WASHER, PLATE (2W5)
90201-10614-00
$8.49
15
COLLAR
90387-105Y5-00
Unavailable
16
BOLT
90101-10748-00
Unavailable
17
NUT (682)
95380-10700-00
Unavailable
18
BOLT, FLANGE
95814-08065-00
Unavailable
19
PIN, COTTER
91490-30030-00
Unavailable
20
NUT, HEXAGON (8F3)
90170-20211-00
Unavailable
21
WASHER (853)
90208-20008-00
Unavailable
22
CAP, HOUSING
82M-47543-00-00
Unavailable
23
BOLT, FLANGE
95817-06030-00
Unavailable
24
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
25
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
26
BOLT(3JP)
97017-06010-00
Unavailable
27
BOLT
97022-10025-00
Unavailable
28
WASHER PLATE (3L6)
90201-10742-00
Unavailable
29
BOLT, FLANGE
95817-08090-00
Unavailable
30
WASHER, PLATE
90201-121R4-00
Unavailable
31
WHEEL
89J-47612-01-00
Unavailable
32
BREATHER
583-15371-00-00
Unavailable
33
SPRING, TORSION
90508-342A9-00
Unavailable
34
SPROCKET, CHAIN DRIVE (16T)
89J-17682-60-00
Unavailable
34
SPROCKET, CHAIN DRIVE (17T)
89J-17682-70-00
Unavailable
34
SPROCKET, CHAIN DRIVE (18T)
89J-17682-80-00
Unavailable
35
COLLAR (2K7)
90387-25663-00
Unavailable
36
SPROCKET, CHAIN DRIVEN (33T)
89J-47587-30-00
Unavailable
36
SPROCKET, CHAIN DRIVEN (35T)
89J-47587-50-00
Unavailable
37
CHAIN (68L)
94860-02068-00
Unavailable
38
SPACER
90560-25362-00
Unavailable
