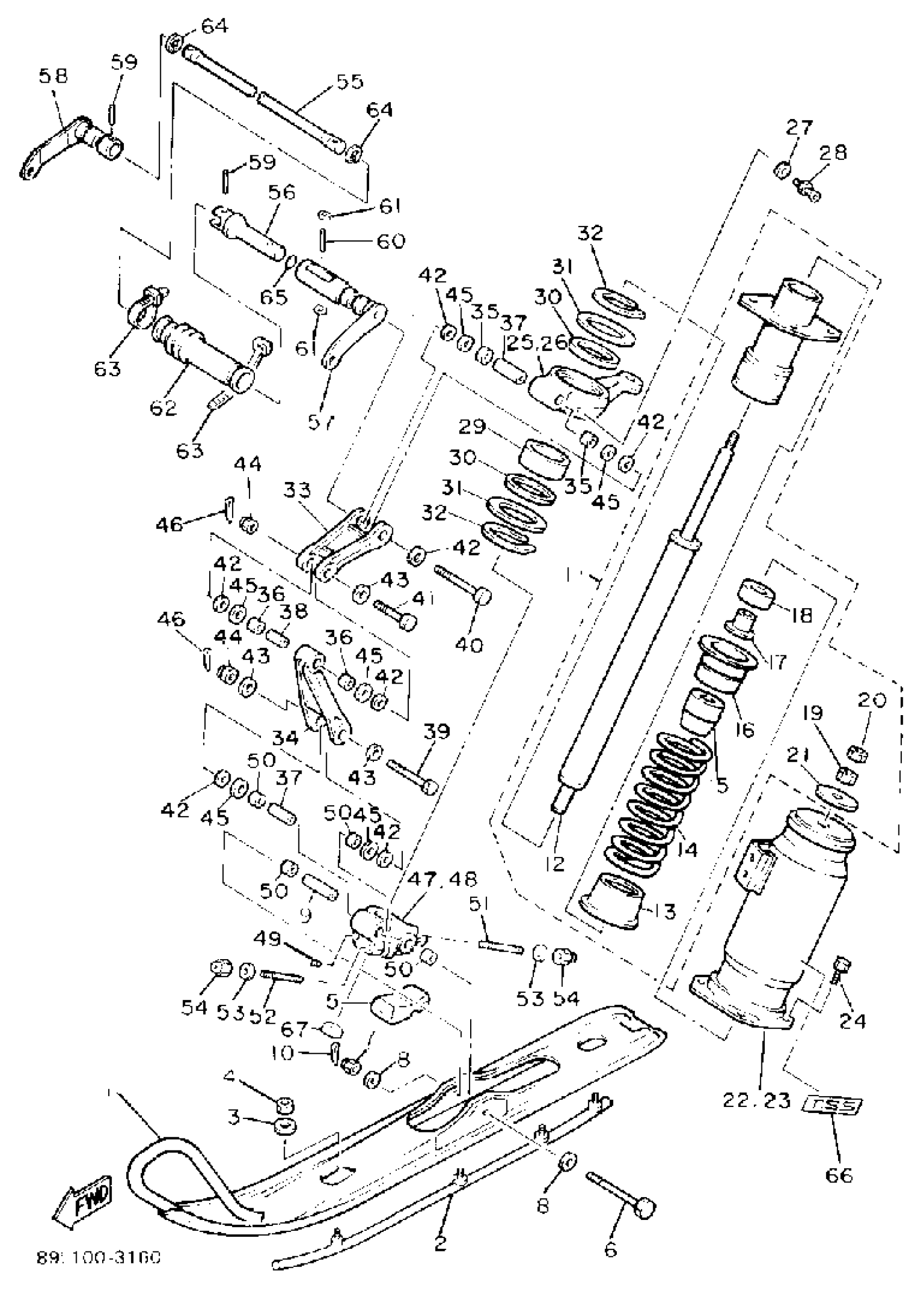

Yamaha EX570STT (EXCITER II ST) 1993 SKI Diagram
#
1
SKI 1
89L-23710-00-00
Unavailable
2
RUNNER 1
89L-23731-00-00
Unavailable
3
.. WASHER, PLATE
92990-08600-00
Unavailable
4
NUT, U
95617-08100-00
$9.49
5
STOPPER 1
88T-23743-00-00
$23.99
6
BOLT, WITH HAUL (31A)
90102-10050-00
$18.99
7
NUT, NYLON
95707-10300-00
$8.49
8
WASHER (7A9)
90201-100F7-00
$9.49
9
COLLAR (8V0)
90387-106J3-00
$17.99
10
PIN, COTTER
91490-20025-00
$1.99
11
ABSORBER ASSEMBLY 1
89L-2376A-00-00
Unavailable
12
DAMPER SUB ASSY
8AV-22401-00-00
Unavailable
13
SEAT, SPRING 2
82M-23777-00-00
Unavailable
14
. SPRING, COMPRESSION
90501-703G8-00
Unavailable
15
BUMP, STOP
89L-22493-00-00
Unavailable
16
PLATE, BACK UP
8AB-23788-00-00
Unavailable
17
COLLAR(82M)
90387-084R1-00
Unavailable
18
WASHER
82M-23779-00-00
Unavailable
19
. NUT
90170-08220-00
Unavailable
20
NUT(6L2)
95333-08600-00
Unavailable
21
WASHER, PLATE(82M)
90201-080L1-00
Unavailable
22
HOLDER, ABSORBER (LH)
87H-2376J-00-00
Unavailable
23
HOLDER, ABSORBER (RH)
87H-2377J-00-00
Unavailable
24
BOLT, HEXAGON
97017-06020-00
Unavailable
25
ARM, OUTSIDE 1
82M-23851-00-00
Unavailable
26
ARM, OUTSIDE 2 (R, H)
82M-23852-00-00
Unavailable
27
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
28
NIPPLE, GREASE
93700-06M03-00
Unavailable
29
BUSH, BIMETAL FORMED (8U7)
90384-53175-00
Unavailable
30
OIL SEAL (8U7)
93109-53036-00
Unavailable
31
WASHER, PLATE(8W1)
90201-535H6-00
Unavailable
31
WASHER, PLATE (8L9)
90201-536A1-00
Unavailable
32
CIRCLIP (8L9)
93410-52061-00
Unavailable
33
ARM, FRONT 1
8M6-2382E-00-00
Unavailable
34
ARM, FRONT 2
8M6-2382F-00-00
Unavailable
35
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
36
BUSH, BIMETAL FORMED (8L0)
90384-14096-00
Unavailable
37
COLLAR(89A)
90387-101Y9-00
Unavailable
38
COLLAR (8L0)
90387-100A4-00
Unavailable
39
BOLT, WITH HOLE
90102-10074-00
Unavailable
40
BOLT
90101-10040-00
Unavailable
41
BOLT, W/HOLE
90102-10073-00
Unavailable
42
WASHER, PLATE (8M6)
90201-105A8-00
Unavailable
43
WASHER, PLATE (8M6)
90201-115A7-00
Unavailable
44
NUT, NYLON
95707-10300-00
$8.49
45
WASHER(82M)
90209-14296-00
Unavailable
46
PIN, COTTER
91490-20025-00
$1.99
47
BRACKET 1
84M-2376E-00-00
Unavailable
48
BRACKET 2
84M-2377E-00-00
Unavailable
49
BOLT, SET (8K2)
90113-06039-00
Unavailable
50
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
51
BOLT, STUD 3
95617-08655-00
Unavailable
52
BOLT, STUD 3
95617-08640-00
Unavailable
53
.. WASHER, PLATE
92990-08600-00
Unavailable
54
NUT, NYLON
95717-08300-00
Unavailable
55
BAR, STABILIZER FRONT
87F-2386E-00-00
Unavailable
56
LINK, STABILIZER FRONT
82M-2386F-00-00
Unavailable
57
JOINT, STABILIZER 1
82M-2385L-00-00
Unavailable
58
JOINT, STABILIZER 2
82M-2385M-00-00
Unavailable
59
PIN, DOWEL
93605-20225-00
Unavailable
60
PIN, DOWEL
93605-25223-00
Unavailable
61
SLIDER
82M-2386R-00-00
Unavailable
62
COVER, STABILIZER FRONT
82M-2386H-00-00
Unavailable
63
BAND
1UA-82591-00-00
Unavailable
64
CIRCLIP (4H7)
93410-23056-00
Unavailable
65
O-RING
93210-15751-00
Unavailable
66
EMBLEM 15
8AP-77371-00-00
Unavailable
67
CAP 1
8AY-23741-00-00
Unavailable
68
RUNNER 2
89L-23732-00-00
Unavailable
