Description

Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-12-00

Unavailable

2

SEC SLIDING SHEAVESHEAVE

8AV-17670-00-00

Unavailable

3

SHOE, RAMP

8AV-17688-09-00

Unavailable

4

SCREW, BINDING

98907-06016-00

$9.49

5

BUSH, BIMETAL FORMED (90384-90081-00)

90380-90117-00

Unavailable

6

SEAT, SECONDARY SPRING

8AT-17684-01-00

Unavailable

7

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

8

WASHER, CLAW(88R)

90214-29060-00

$7.49

9

CIRCLIP(86F)

93440-34170-00

$8.49

10

SPRING, TORSION (8U7)

90508-50571-00

$11.49

11

SHAFT, SECONDARY

88F-17681-00-00

Unavailable

12

PLUG, OIL

82M-17699-00-00

$14.49

13

HOUSING, BEARING

87X-47631-00-00

Unavailable

14

BEARING

888-17678-00-00

Unavailable

15

CIRCLIP(26H)

99009-52500-00

$12.49

16

BOLT(2KF)

90109-085E3-00

Unavailable

17

PANEL 1

88R-1441L-00-00

Unavailable

18

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

18

WASHER, PLATE (888)

90201-25526-00

Unavailable

18

WASHER, PLATE (888)

90201-25527-00

Unavailable

19

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

19

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

20

COLLAR

90387-147A8-00

Unavailable

21

WASHER, PLATE

90201-140A6-00

Unavailable

22

BOLT, WASHER BASED

90105-14175-00

Unavailable

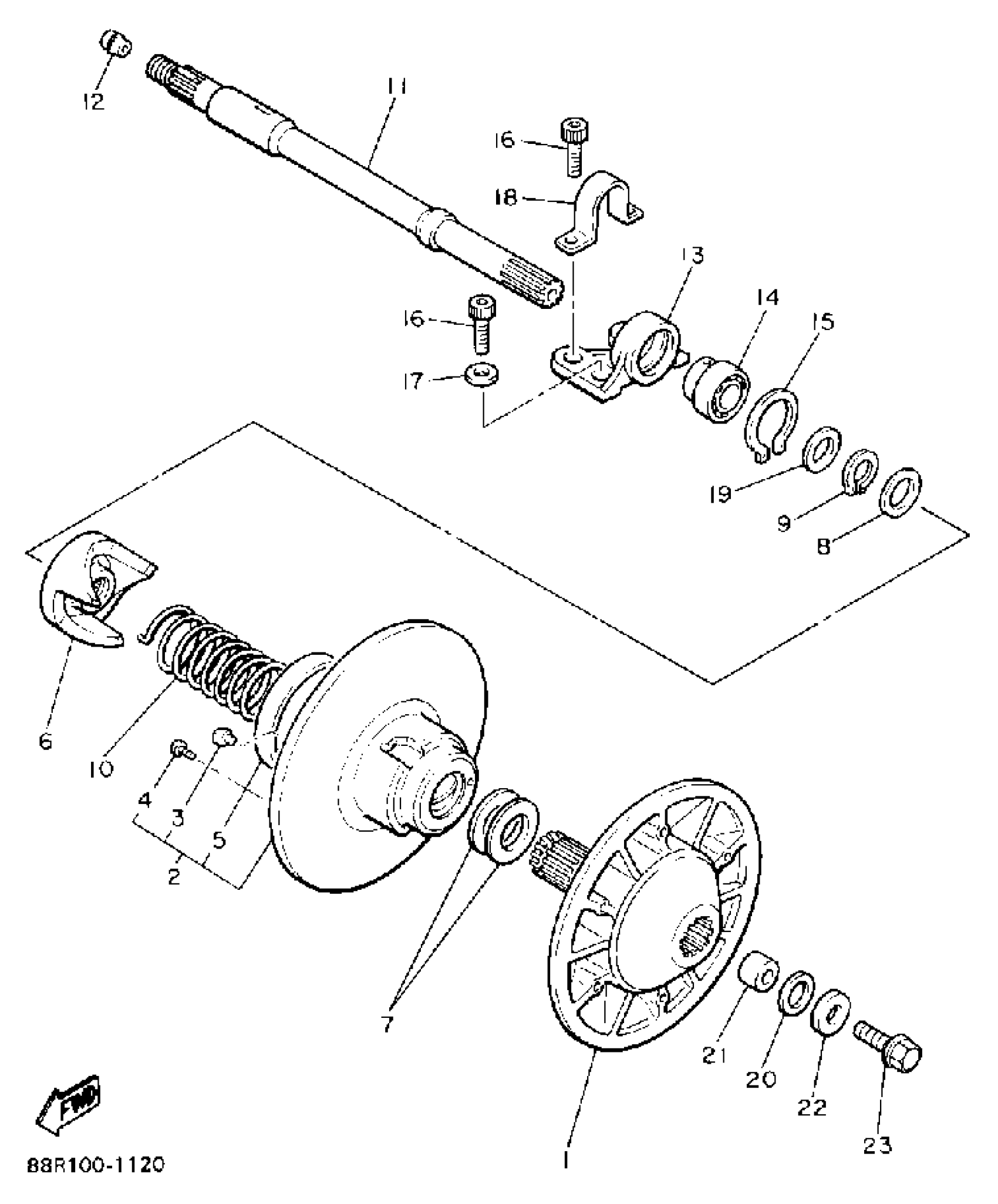

Yamaha EX570STT (EXCITER II ST) 1993 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SEC SLIDING SHEAVESHEAVE

SHOE, RAMP

SCREW, BINDING

BUSH, BIMETAL FORMED (90384-90081-00)

SEAT, SECONDARY SPRING

WASHER, PLATE (8U9)

WASHER, CLAW(88R)

CIRCLIP(86F)

SPRING, TORSION (8U7)

SHAFT, SECONDARY

PLUG, OIL

HOUSING, BEARING

BEARING

CIRCLIP(26H)

BOLT(2KF)

PANEL 1

WASHER, PLATE (8R6)

WASHER, PLATE (888)

WASHER, PLATE (888)

WASHER, PLATE (T=0.5)

WASHER, PLATE (8L8)

COLLAR

WASHER, PLATE

BOLT, WASHER BASED
