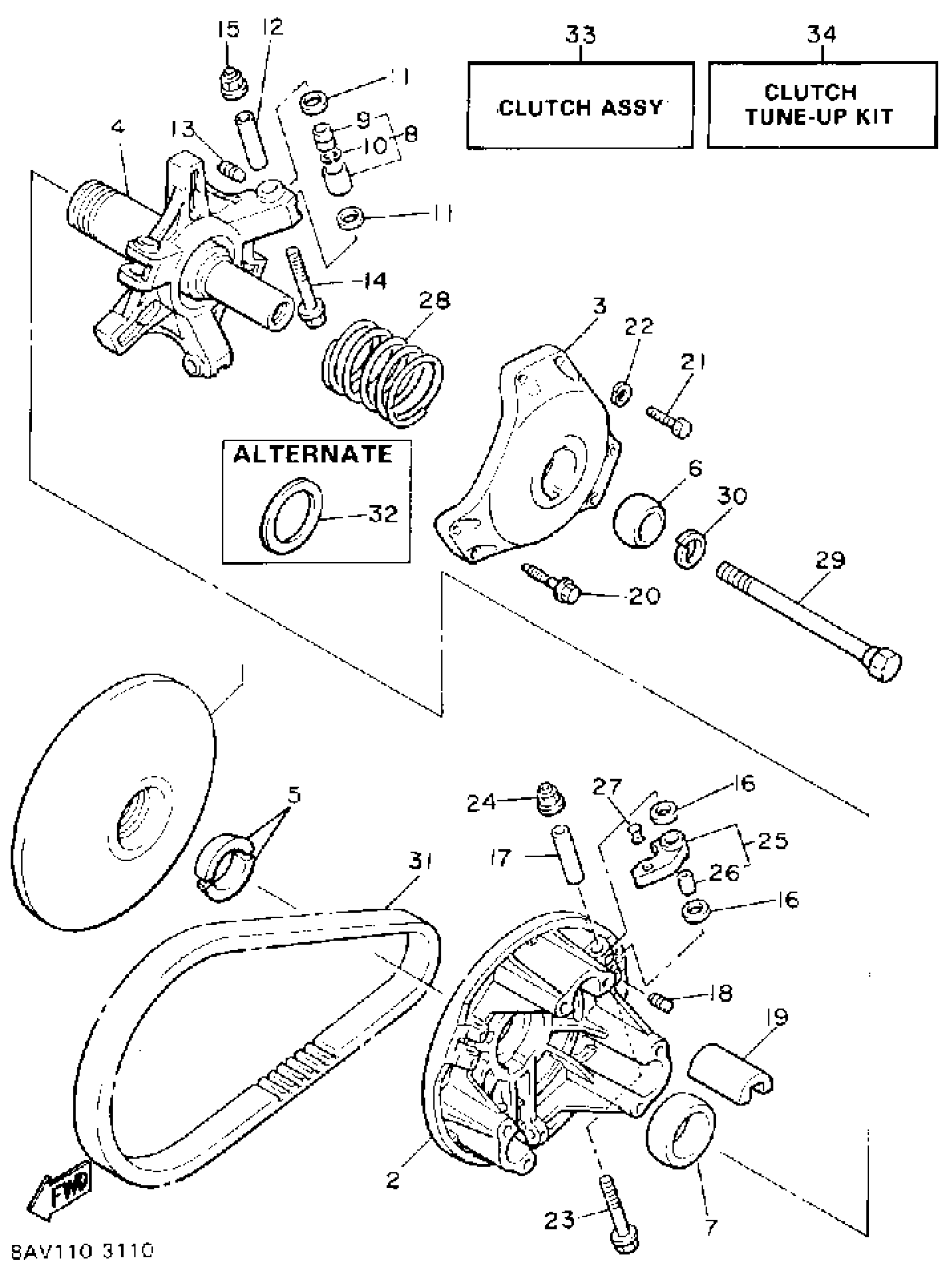

Yamaha EX570STT (EXCITER II ST) 1993 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

88R-17611-02-00

$113.99

2

SHEAVE, PRIMARY SLIDING

88R-17621-01-00

Unavailable

3

CAP

88R-17631-01-00

Unavailable

4

SPIDER COMPLETE

8BW-17640-11-00

Unavailable

5

STOPPER

8V0-17639-00-00

$14.99

6

BUSH(83R)

90389-28032-00

$61.99

7

BUSH(88R)

90389-41031-00

$78.99

8

ROLLER, COMP

88R-17624-01-00

$47.99

9

BUSH(88K)

90386-08183-00

Unavailable

10

CIRCLIP(88K)

93450-13133-00

Unavailable

11

WASHER, PLATE(88R)

90202-08204-00

$9.49

12

COLLAR

90387-0514T-00

$16.99

13

BOLT, SET

90113-05041-00

$8.49

14

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

15

NUT, S/L FLANGE

95607-05200-00

$9.49

16

WASHER, PLATE(88R)

90202-08204-00

$9.49

17

COLLAR

90387-0514T-00

$16.99

18

BOLT, SET

90113-05041-00

$8.49

19

SLIDER

88R-17653-01-00

Unavailable

20

BOLT(89J)

90109-066F4-00

Unavailable

21

BOLT, HEXAGON

97017-06030-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

24

NUT, S/L FLANGE

95607-05200-00

$9.49

25

WEIGHT COMP.

89L-17605-00-00

Unavailable

26

. BUSH, SOLID

90380-08244-00

Unavailable

27

RIVET, COUNTER SUNK (8G8)

90261-06017-00

Unavailable

27

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

Unavailable

28

SPRING, COMPRESSION(89L)

90501-521J6-00

Unavailable

28

SPRING, COMPRESSION(8AV)

90501-550J8-00

Unavailable

28

SPRING, COMPRESSION(8AY)

90501-582J1-00

Unavailable

28

SPRING, COMPRESSION(8AY)

90501-602J0-00

Unavailable

29

. BOLT (L=1653MM)

88R-17647-00-00

Unavailable

30

WASHER(JN5)

92907-16100-00

Unavailable

31

V-BELT

89L-17641-02-00

Unavailable

32

WASHER, PLATE(88S)

90201-483P9-00

Unavailable

33

CLUTCH ASY

89L-17601-09-00

Unavailable

34

CLUCH TUNE-UP KIT (R)

88R-00000-51-00

Unavailable
